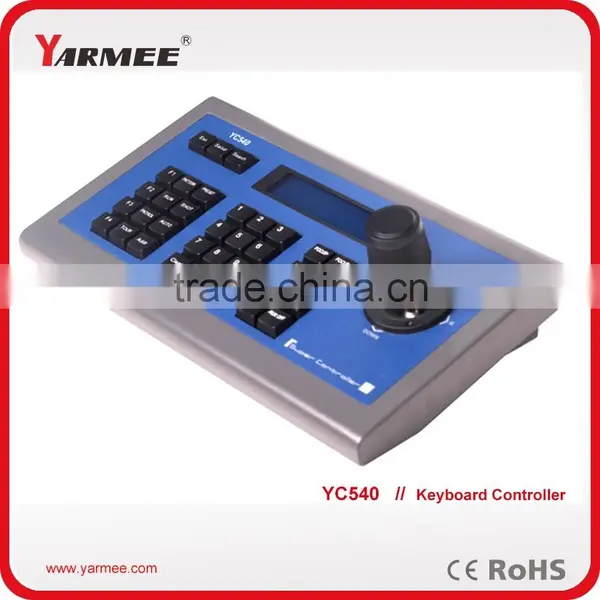

Professional High Speed Dome 3D PTZ Camera Keyboard Controller YC540-YARMEE

Name: Professional High Speed Dome 3D PTZ Camera Keyboard Controller YC540-YARMEE
Brand: YARMEE
SKU: 100337457
Availability: InStock

US$ 204 - 210 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YARMEE

Model Number:

YC540

Guangzhou Yarmee Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YARMEE

Model Number YC540

Product Description

High qualiity 16 channel stereo audio power amplifier mixer for sale YM120-YARMEE

Features:

Can Set and Call Preset Position of Video Conference Camera;
Joystick:3D(Control: UP, Down, Left, Right, Zoom);
Good Communication Compatibility, Built-in Many Kinds of Protocols: Pelco-P, Pelco-D,VISCA etc;
Maximum Sub-control Keyboard:16;
RS485 Control Bus, Control 255 Front End Address and Connect 128 Devices in Parallel Simultaneously At The Most, As Well As 7pcs Series-connected Video Conference Cameras;
LCD display;
All parameters are set by key-press operation procedure; It is convenient and fast;

Accessories:

Model Number: YC540

3D PTZ Keyboard Controller, for controlling PTZ Cameras, Supports VISCA, PELCO protocol, and RS485, RS422, RS232.

Specifications

Model	YC540
Main Protocol	Pelco-D,Pelco-P,VISCA, etc
Baud rate(bps)	1200bps, 2400bps, 4800bps, 9600bps, 19200bps
Control Address	Control 255pcs PTZ at the most, address code:0-254
Communication Range	RS485, RS422: 1200m, RS232: 10m
Cascade connection number	16 sub-control at most, controller ID:0-15
Joystick	3D(control: up, down, left, right, zoom)
Interface Mode	10PIN pressing line port, DB9 connector
Display	blue LCD
Warning Tone	Key-touch beep on/off
Power Supply	DC12V±10%
Power Consumption	6W MAX.
Working Temperature	0℃--50℃
Store Temperature	-20℃--70℃
