Model Number: YC548

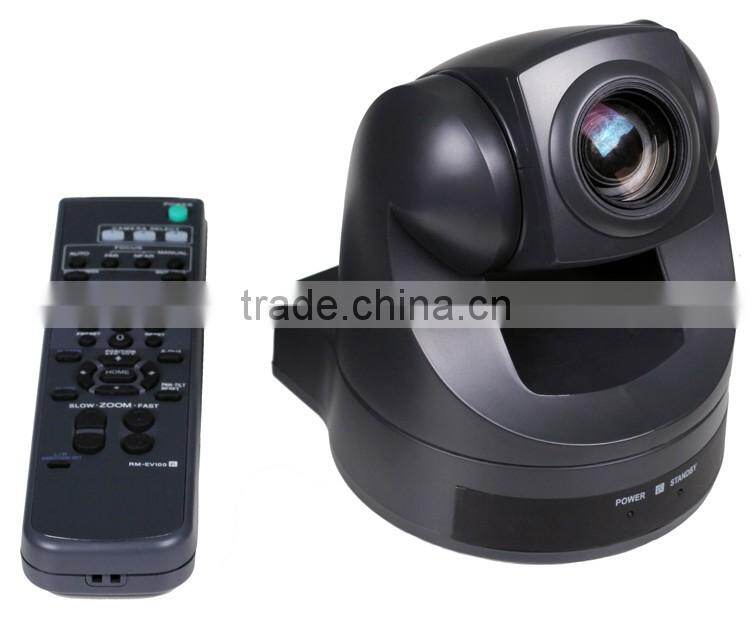

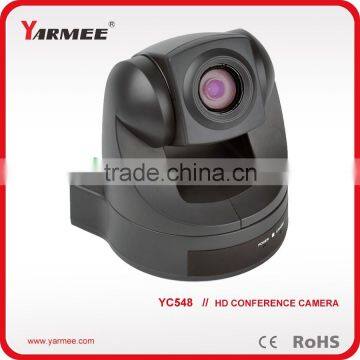

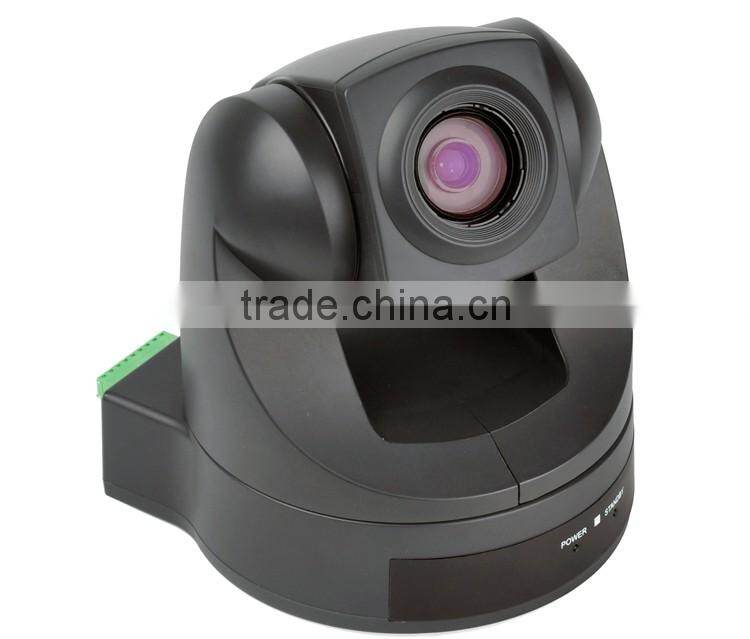

It’s a HD 1080P HDMI CVBS PTZ Video Conference Camera, Supports 18x Optical Zoom, 355 degree Pan Rotation,120 degree Tilt Rotation, PELCO,VISCA Control Protocol with RS-232 and RS-422/485, Supports HDMI and CVBS(VIDEO) Video Output simultaneously.
Features
1.Adopting 1/2.9’’ CMOS 2.1 Megapixel Sensor;
2.2.1Megapixels 16:9 and 4:3;
3.18x Optical Zoom;
4.Video Format:1080p/30, 1080p/25, 720p/60, 720p/50, PAL/NTSC;
5.View Angle: 54.8°;
6.Pan/Tilt Rotation Angle: Horizontal 355°, Vertical 120°;
7.Max Pan Speed:80 degree/s; Max Tilt Speed: 60 degree/s;

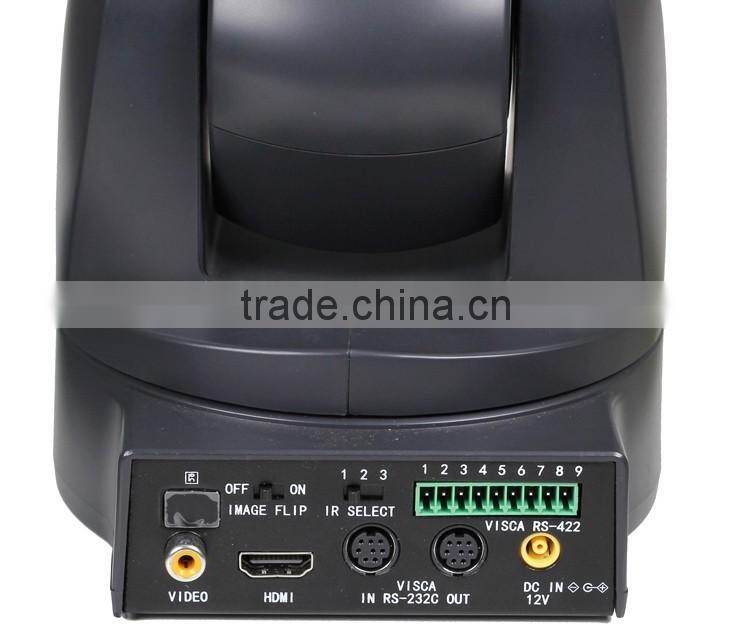

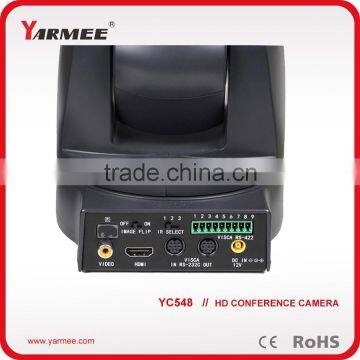

8.Support HDMI and CVBS(VIDEO) Simultaneously output, CVBS output video is better than Sony D70P;
9.SD CVBS(VIDEO) can Output 16:9 and 4:3;
10.PTZ Controlling Protocol: Sony VISCA, PELCO-P/D, with RS-232C, RS-422/485;
11.Preset Position:9 by Remote IR Controller, 255 by Keyboard Controller;
12.Remote Controller for controlling PTZ, Zoom, Preset Position etc;
Accessories
1.1 x HD Video Conference Camera;
2.1 x Power Adaptor;
3.1 x Remote Controller;

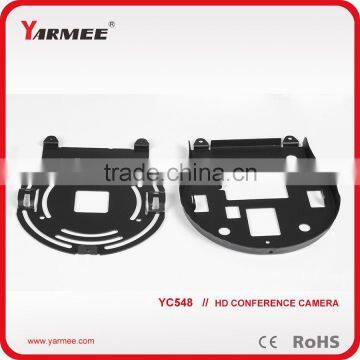

4.1 x Bracket;
5.1 x User Manual;
6.1 x Qualified Certificate Card.
Model Number: YC548
It’s a HD 1080P HDMI CVBS PTZ Video Conference Camera, Supports 18x Optical Zoom, 355 degree Pan Rotation,120 degree Tilt Rotation, PELCO,VISCA Control Protocol with RS-232 and RS-422/485, Supports HDMI and CVBS(VIDEO) Video Output simultaneously.
Specifications
Camera Model | YC548 |
Image Sensor | 1/2.9’’ CMOS |
Effective Pixels | Approx. 2.1 Mega pixels 16:9 and 4:3 |
Signal System(HD) | 1080p/30, 1080p/25, 720p/60, 720p/50 |
Signal System(SD) | PAL/NTSC |
Horizontal Viewing Angle | 54.8°(W)~3.4°(T) |
Focus system | Auto/Manual |
Lens | 18x Optical Zoom, f = 4.7 to 84.6mm, F1.6 to F2.7 |
HD Video Output | HDMI |
SD Video Output | CVBS(VIDEO) |
Minimum Illumination | Color: 0.1Lux, W/B: 0.01Lux |
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
Shutter Speed | 1/30 ~ 1/10,000s |
Gain | Auto/Manual |
S/N Ratio | ≥50dB |
Pan/Tilt | Pan Angle: 355° (max. speed: 80°/s) Tilt Angle: 120° (max. speed: 60°/s) |
Preset Position | 9 by remote control,255 by keyboard controller |
Control Protocol | SONY VISCA, PELCO P/D |
Camera Control Interface | RS-232C, RS-422/485 |
Dimensions | (L)153×(W)134×(H)153mm |
Weight | 1200g |
Power | 10.8V~13.0V |
Operating Temperature | 0℃~50℃ |
Storage Temperature | -20℃~+60℃ |
Consumption | 30W |
1) Door to door services by courier is ok. By TNT,FEDEX,UPS,DHL,EMS,etc to all countries
2) By air or sea is available.
1. Payment: L/C at sight, or Bank transfer with 30% deposit, 70% balance to be paid before shipment
2. Production lead time: 5-15 days upon deposit according to different quantity.
3. Shipping port: Shenzhen of China, Hongkong port. Or any seaport which customers offer.
