bottle unscrambler machine, PET bottle unscrambler machine, full automatic bottle unscrambler equipments

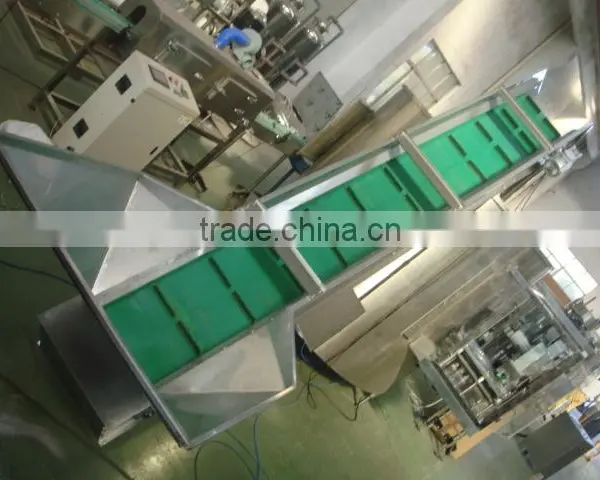

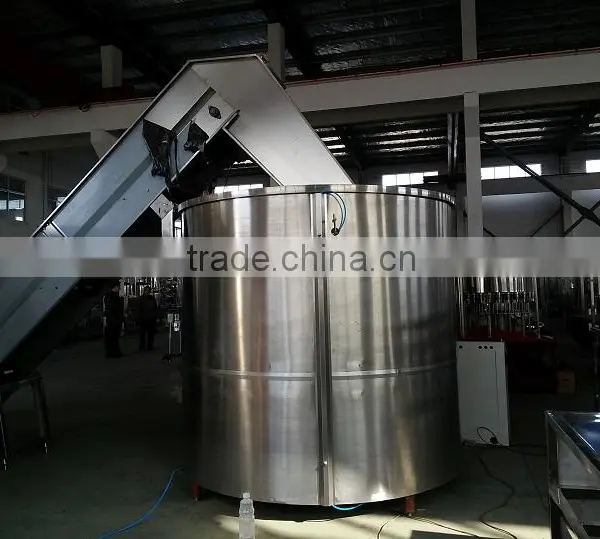

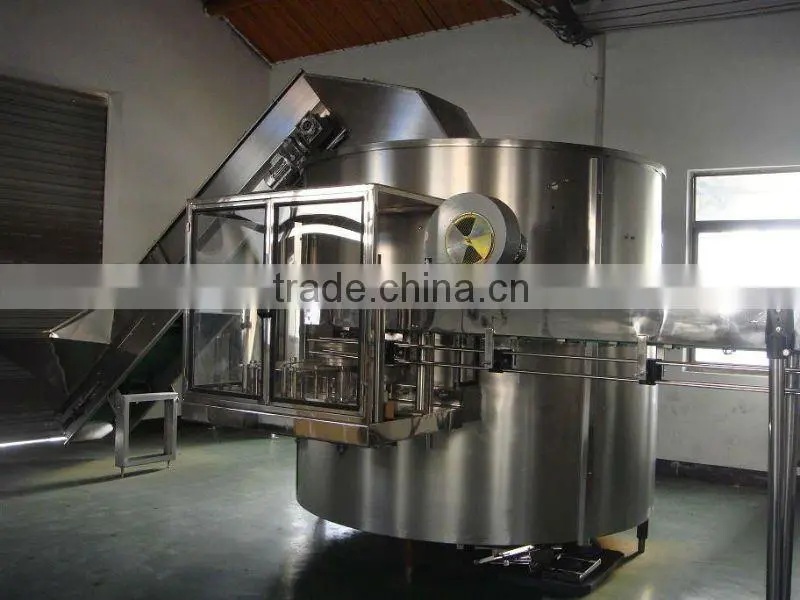

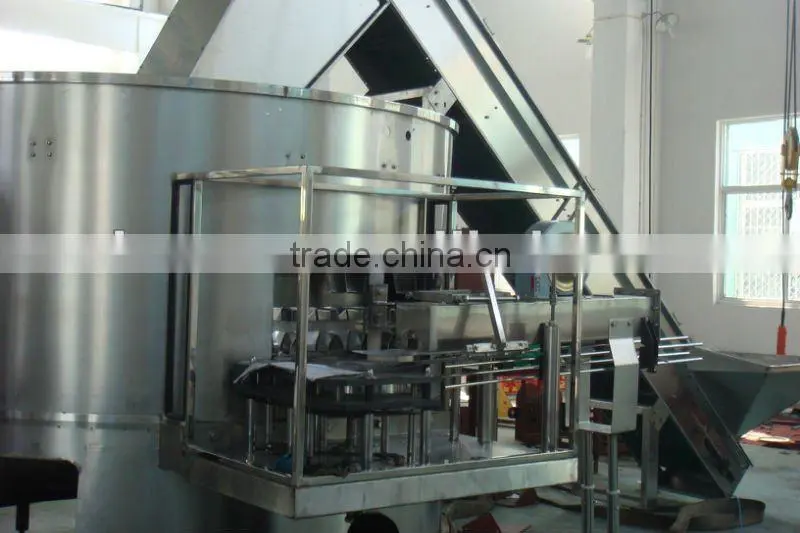

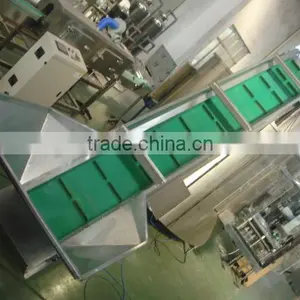

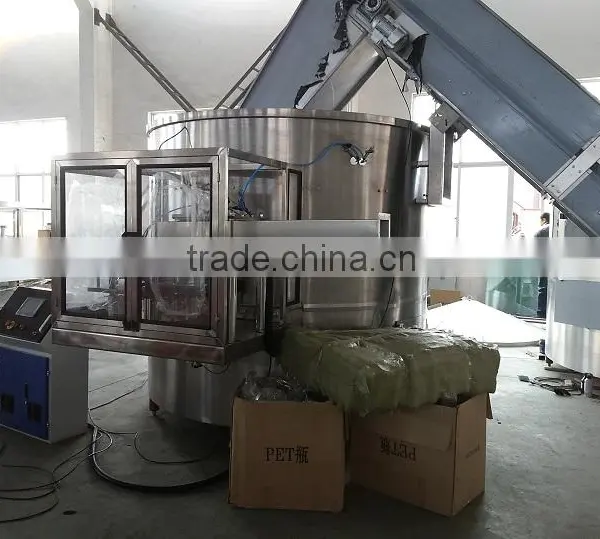

This bottle unscrambler machine is suitable for unscrambling disorder plastic bottles. The disordered bottles are carried into the bottle storage section by bottle elevator. With the help of the pushing force of Automatic Plastic bottle organizer the rotating disk, the bottles entre their position. Then make them order and in one line, then discharge them by air conveyor.
Machine Features
1) Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur.
2) Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency.
3) The bottles are neck locked through the air conveyor so as to avoid overturn in delivery. 4) Dilapidated bottles will be eliminated by a special device.
5) A lock detector is equipped for alarming; when locked, the machine will automatically stop.
6) A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles.
7) An oil pump will readily fill up the gears, bearings and the cams .
8) Maintenance doors and mould replacement door provided.

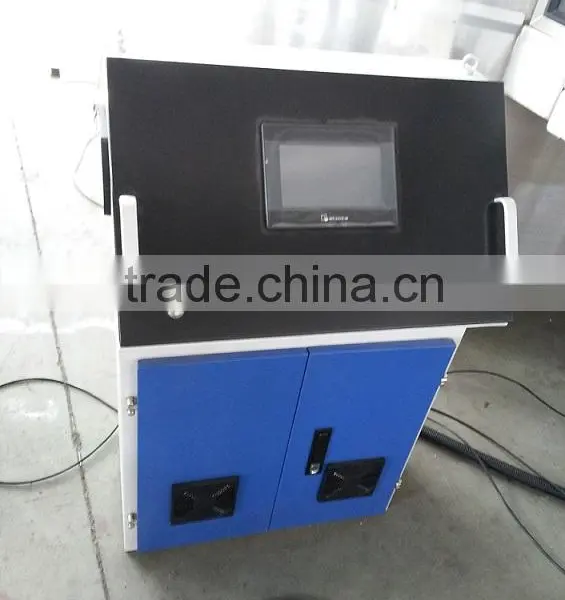

9) Mitsubishi, Omron and Simons provide the main electrical components; Such as transducers, PLC, photoelectric switch and relays.
10) Machine outer tank,revolving tank and meet the bottle part are all stainless steel SUS304. Frame part adopts high-grade carbon jointing.
Technical parameter:
Working stations: 16
Gas pressure: 0.8MPa
Host power: 1.5kw
Lifting machine power: 0.75kw
Fan: 2.2kw
Size: ø2200 H2100mm
Technical parameter:
Working stations: 16
Gas pressure: 0.8MPa
Host power: 1.5kw
Lifting machine power: 0.75kw
Fan: 2.2kw
Size: ø2200 H2100mm
Customer can choose the suitable model according to personal request
Model |
LP-12 |
LP-14 |
LP-16 |
LP-18 |
LP-21 |
LP-24 |
LP-30 |
Type |
Automatic |
Automatic |
Automatic |
Automatic |
Automatic |
Automatic |
Automatic |
Output (BPH) |
6,000 |
8,000 |
10,000-12,000 |
20,000 |
24,000 |
30,000 |
33,000 |
PLC sys. |
SIEMENS |
||||||
Frequency conv. |
MITSUBISHI |
||||||
Electric sensor |
OMRON |
||||||
Relay |
SIEMENS |
||||||
Air sys. |
SMC/FESTO |
||||||
Main Power |
1.5 kw |
1.5 kw |
1.5 kw |
3 kw |
3 kw |
3.7 kw |
3.7 kw |
Size D×H (mm) |
φ1700×2000 |
φ2240×2200 |
φ2240×2200 |
φ2640×2300 |
φ3020×2650 |
φ3400×2650 |
φ3800×2650 |
Weight |
2 T |
3.2 T |
3.5 T |
4 T |
4.5 T |
5 T |
5.5 T |
