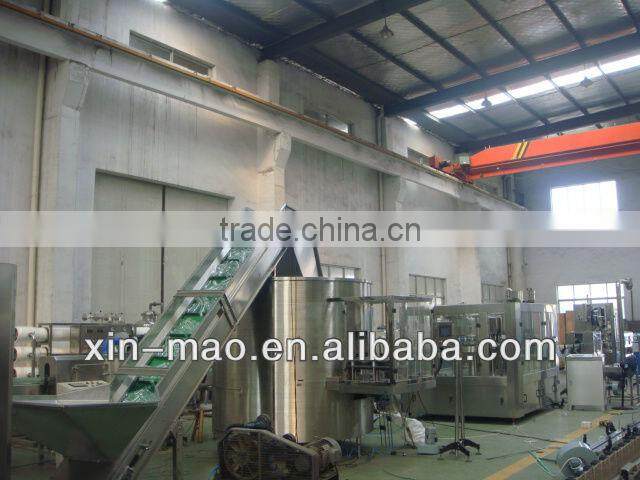

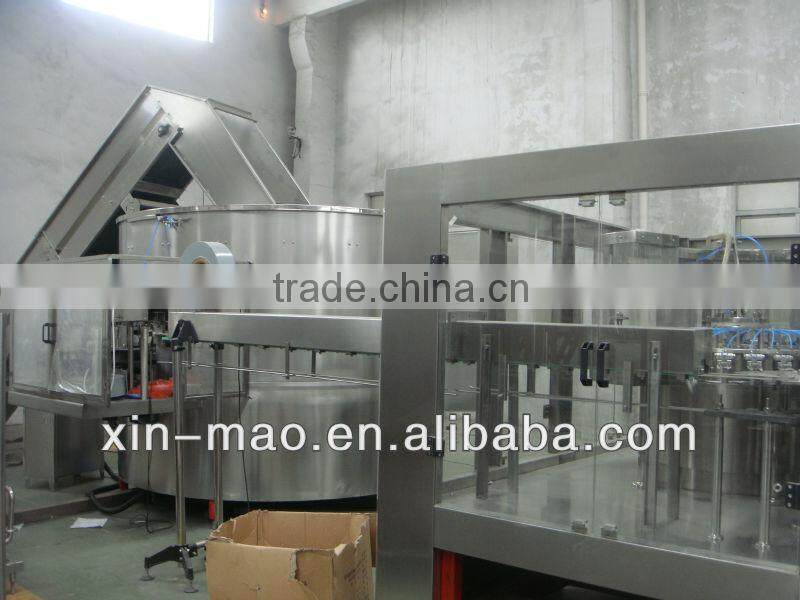

Full-Auto PET Bottle Unscrambler, Auto bottle unscrambler machine equipment, full auto PET bottle unscrambler machine
Technical parameter:
Working stations: 16
Host power: 1.5kw
Lifting machine power: 0.75kw
Fan: 2.2kw
Size: ø2200 H2200mm
Bottle size: 250ml to 2000ml PET bottle
Product speed: 5000BPH to 20000BPH
Gas pressure: 0.8MPa
This bottle unscrambling machine can unscrabling the bottles and then transport it to the conveyor orderly, and sent it to the other equipment(such as rinsing filling machine, etc.). This device can reduce the labor intensity, improve production efficiency, it can also prevent water from secondary pollution.

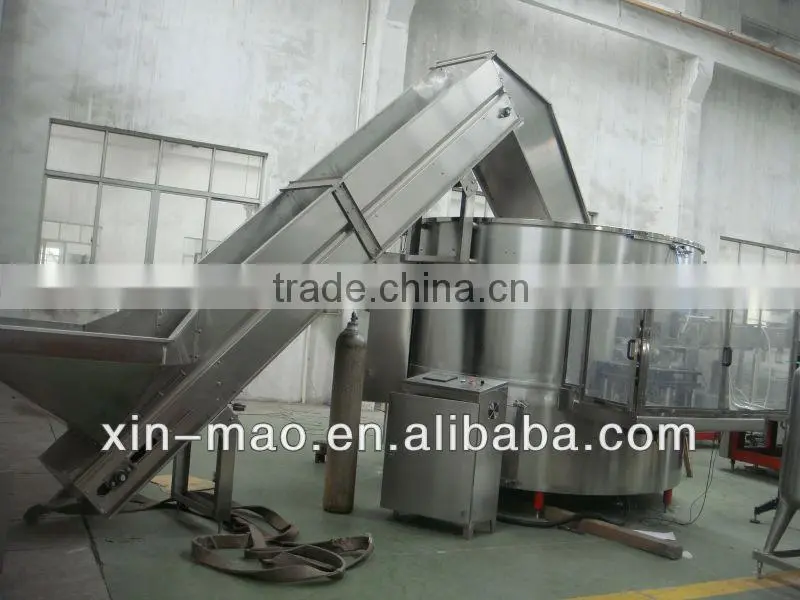

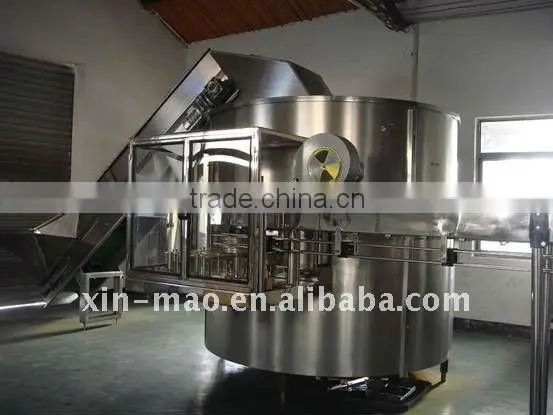

Bottle Unscrambler
1, Main motor is the frequency speed changing method.
2, Applying two-time pushing and unscrambling device will reduce amount of empty working position and improve efficiency of output bottle.
3, Special designed dropping bottle slot can suit bottles with different length. It needn’t change bottle slot and just adjust slot properly.
4, The middle of cylinder has a door for mould exchange, this makes it convenient disassemble and assemble bottle slot and treat clog.
5, The bottom of cylinder has a door for maintenance, this makes it convenient for workers entering bottom of machine.
6, This machine is equipped with manual operator for easy maintenance.
7, It has complete safety measure. When maintenance door and mould exchange door are open, machine can’t start, then you can use manual operator to control machine.
8, The output bottle poking wheel of unscrambler is equipped with block bottle detector that can protect machine effectively.

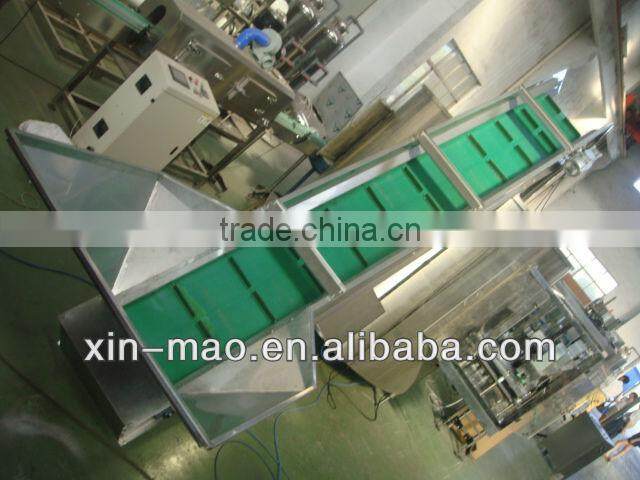

9, On the umbrella shape tower at the center of unscrambler, there is a bottle detector to control stop and start of lifting machine that supplies bottle.
10,The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.
11,The outer cylinder has oil nozzle that can easily add lubricant to gears, bearing and cam.
12,The air pipeline system has pressure switch and gate valve, if compressed air can’t be put through, the machine can’t start too. The gate valve and the machine are interlocked and save air consumption.
13,The bottle’s transportation applies air convey way suspending bottleneck method to avoid bottle’s turnover.
14,At air convey way’s input bottle end, there is block bottle treatment device that is driven by cylinder. When bottle is blocked, the device removes it automatically to prevent damage of unscrambler because of bottle’s squeezing.
15,Stainless steel made electric cabinet controls unscrambler, lifting machine and air convey way’s works through PLC.
16,Key electric components (frequency converter, PLC, photoelectric switch, relay) apply MITSUBISHI, OMRON, SIEMENS brands.
17,Air pipeline system applies SMC products.

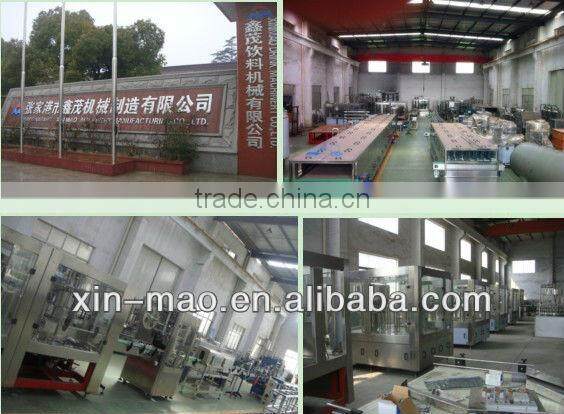

Factory and machines

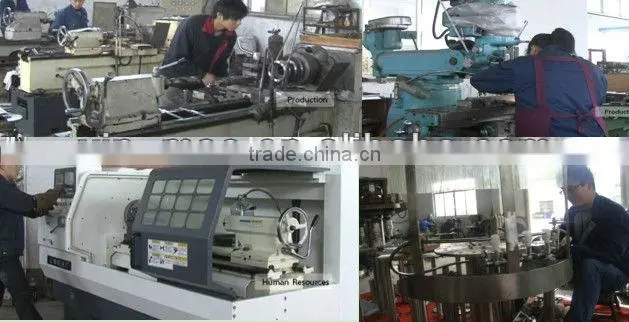

Worker and simi finished equipments
Package
After sales service
• Find our products through https://img13.fr-trading.com/ Alibaba, /, / etc.
• One year warranty for the whole system .
• After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
• We can provide internship service and help you train the operator and mechanic.
• Free production technology and process configuration.
• We can help you to design the product line , workshop and provide turn-key project.
How to get your suitable machine or production line ?
• Inquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype) and let us know your inquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
• Quotation: Prices offered and accepted.
• Place order as per contract or discussion.
• Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
• Payment settled.
• Order completed under our arrangement.
• Goods shipped as per contracted term.
• Goods arrive at local port or warehouse, depending on contracted term.
• Support & re-ordering.
Any question about this machine,contact with us please ,sincere service for you ,and welcome to Zhangjiagang Xinmao.
