Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice

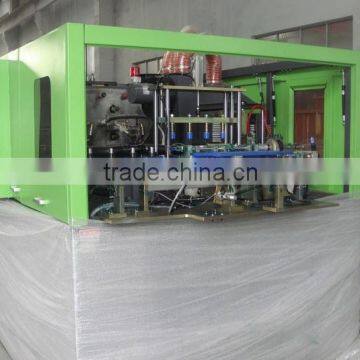

Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice photo-1
Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice photo-2
Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice photo-3
Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice photo-4

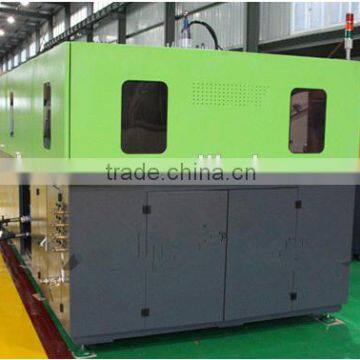

Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice photo-5

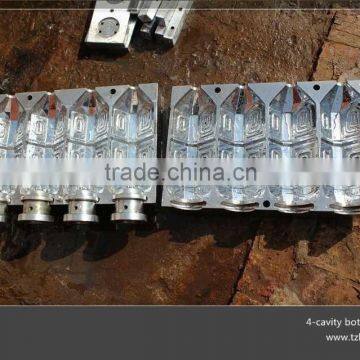

Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine Quality Choice photo-6
US$ 1 - 43,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, brand-new
Application:
Other, Bottle, PET bottle blowing machine
Plastic Processed:
Other, PET, PET bottle blowing machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Application Other, Bottle, PET bottle blowing machine
Plastic Processed Other, PET, PET bottle blowing machine
Blow Moulding Type Other, Stretch Blow Moulding, Stretch Blow Moulding
Automatic Yes
Place of Origin Jiangsu, China
Brand Name XINMAO
Model Number CM-A6L
Voltage 380V, by order
Power(W) By order
Dimension(L*W*H) By order
Weight By capacity
Certification CE certification, ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

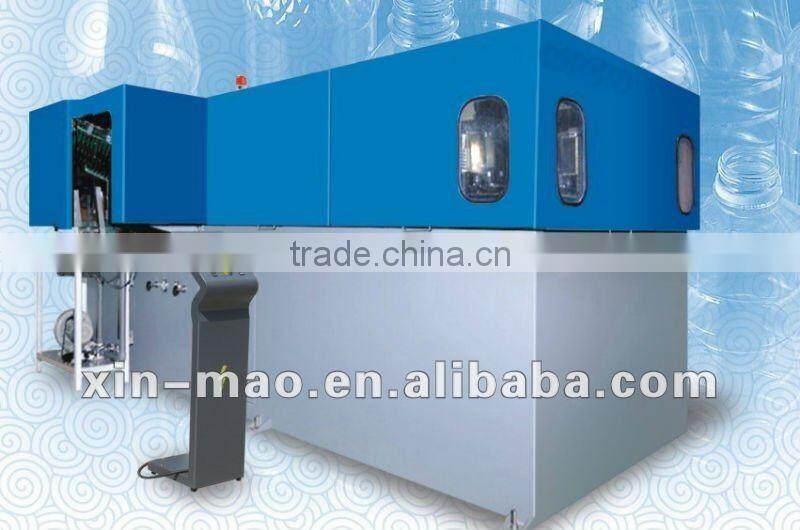

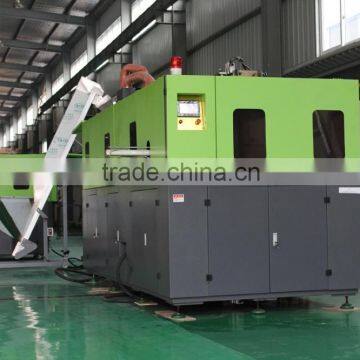

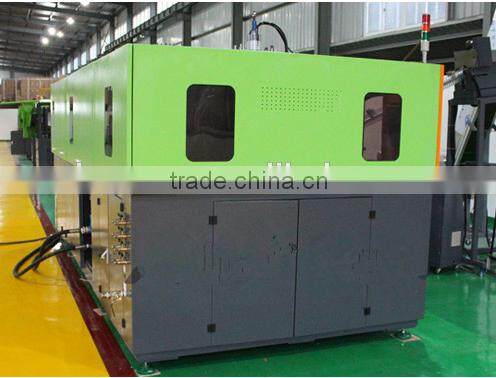

Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine



Machine Features:
1)Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine . .
6) Stretch blow molding, save much more air consumption with high capacity and long service life.

7) High quality Muffler, and safety protecting gate, guarantee operators safe.

8) Low rejection rate: less than 0.2%.

XM-A Series full Automatic blowing bottle machine
Main Part
ModelXM-A2
ProductivityDepend on botlle design1800-2000pcs/hDepend on botlle design1800-2000psc/h
Model22cavity44cavity
Body diamerter20mm-100mmBody diameter20mm-100mm
Height50mm-350mmHeight50mm-350mm
Neck diamete15mm-32mmNeck diamete15mm-32mm
Mould thick240mmMould thick240mm
UtilitiesMould320*480mmMould320*480mm
Electrical source power380v3Phase220v3Phase 50-60HzElectrical source power380v 3Phase220v3Phase 50-60HZ
Power25kwPower45kw
Really use power6kwReally use power15kw
Operation air2000NL(8.Obar)/minOperation air2000NL(8.Obar)/min
Blow air2000NL(3.Obar)/minBlow air2500NL(8.Obar)/min
Cooling water100/minCooling water100L/min
SizeL*w*h1908*1280*1920mmL*w*h2750*1680*2920mm
Weight2000kg 3200kg
AuxiliaW equipmentPreform unscrambler is equipped as standard
Resin availablePET PP PE



Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine



Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making MachineFull Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine





Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine





Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine



Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine



Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine



·Find our products through
http://xin-mao.en.china.cn/ Alibaba,
/, / etc.

·One year warranty for the whole system .

·After one year , we can help you to maintain the machine and the accessories are
provided only one the cost price.

·We can provide internship service and help you train the operator and mechanic.

·Free production technology and process configuration.

·We can help you to design the product line , workshop and provide turn-key project.



Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine



How to get your suitable machine or production line ?

Inquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype)
and let us know your inquiry.

Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.

Quotation: Prices offered and accepted.

·Place order as per contract or discussion.

·Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.

·Payment settled.

·Order completed under our arrangement.

·Goods shipped as per contracted term.

·Goods arrive at local port or warehouse, depending on contracted term.

·Support & re-ordering.

Full Automatic PET Bottle Blowing Machine, Water Bottle Blowing Machine, PET Bottle Making Machine
