The main products include V-belt ,timming belt,ribbed belt,raw edge cogged v-belt,variable speed belt,etc which are used in the filed of automotive,truck,motocycle and industry agriculture,household appliance.
Welcome to contact us,we hope to bulid good cooperation with you.
The transmission of synchronous belt is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley, lt combines respective advantages of gear transmission,chain tramission and transmission.
| Structure |
No. |
Name |
Function |
Material |
1 |
Top Rubber | Protect the linling tensile member |
CR HNBR |
2 |
Tensile Member | Core material to pass the dynamic force |
Glass Filber |
3 |
Teeth Rubber | Protect the tensile member and maintain the shape of the rubber |
CR HNBR |
4 |
Teeth Fabric | Maintain the shape of the adhesive |
Elastic Fabric |

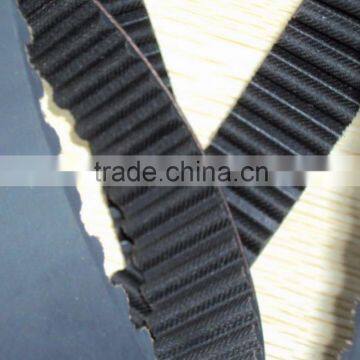

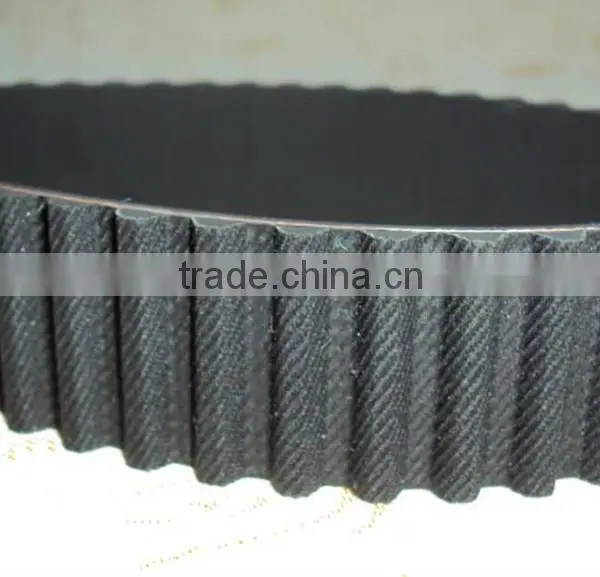

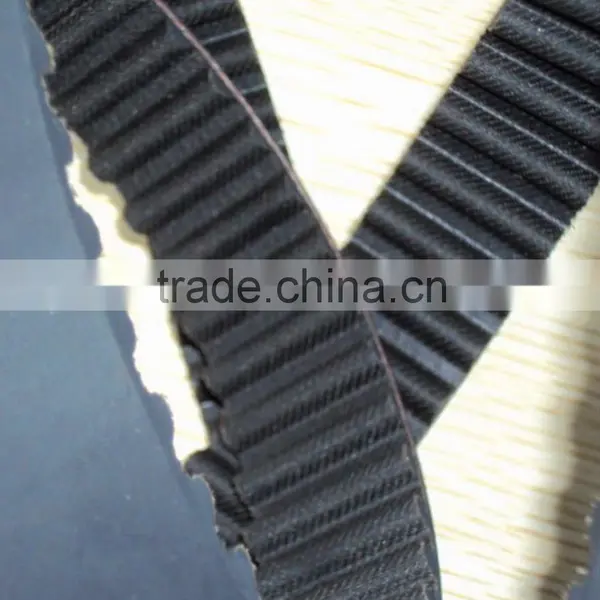

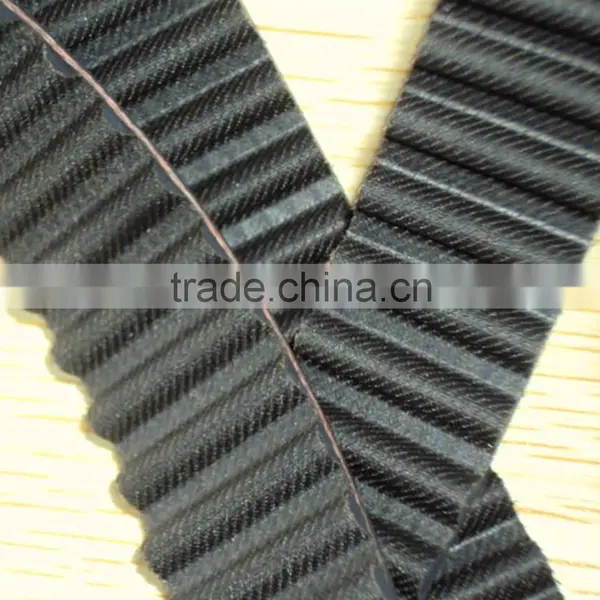

Industrial synchronous belt
Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
Material:Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
Type:
There are two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt anddouble-sided tooth industrial rubber synchronous belt.
There are two kinds of single-sided tooth industrial rubber synchronous belt: T tooth industrial rubber synchronous belt and Arc tooth industrial rubber synchronous belt.
The Dimension and Profile:
T tooth industrial rubber synchronous belt
Arc tooth industrial rubber synchronous belt
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
HTD |
2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
STPD/STS |
S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
RPP/HPPD |
2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6.00 | 10 |
Can you give me discount?
Yes, of course. If you talk with us, you’ll get more.
Will you send me free sample?
Yeah, she'd love to; can you buy her a ticket?
Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small.You will become bigger and bigger to be with us.
How long are their lifetime?
My friend, with your gentle care,6 months to 36 months for different products.
