Taizhou Feilizhou Rubber-Belt Co.,ltd.
Our company is specialized in manufacture and export of rubber belt.
The main products include V-belt ,timming belt,ribbed belt,raw edge cogged v-belt,variable speed belt,etc which are used in the filed of automotive,truck,motocycle and industry agriculture,household appliance.
Welcome to contact us,we hope to bulid good cooperation with you.

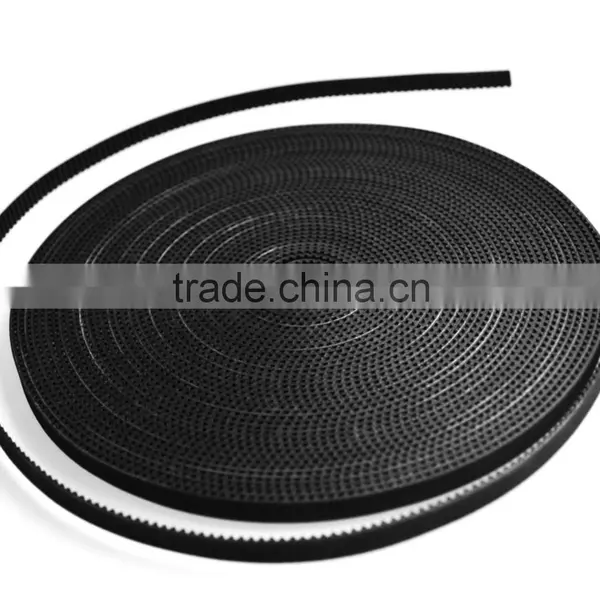

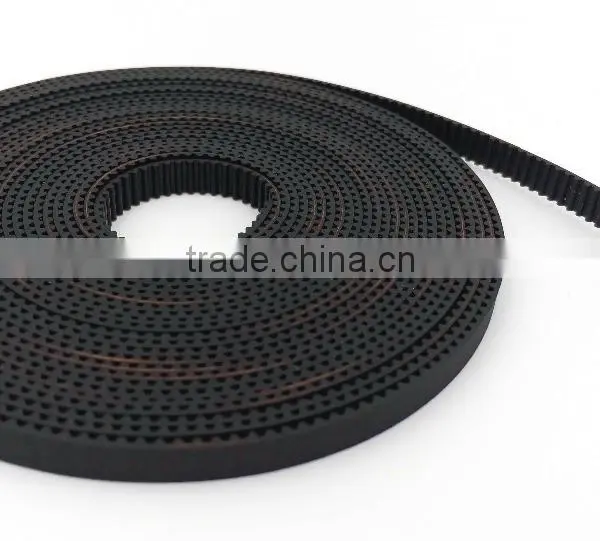

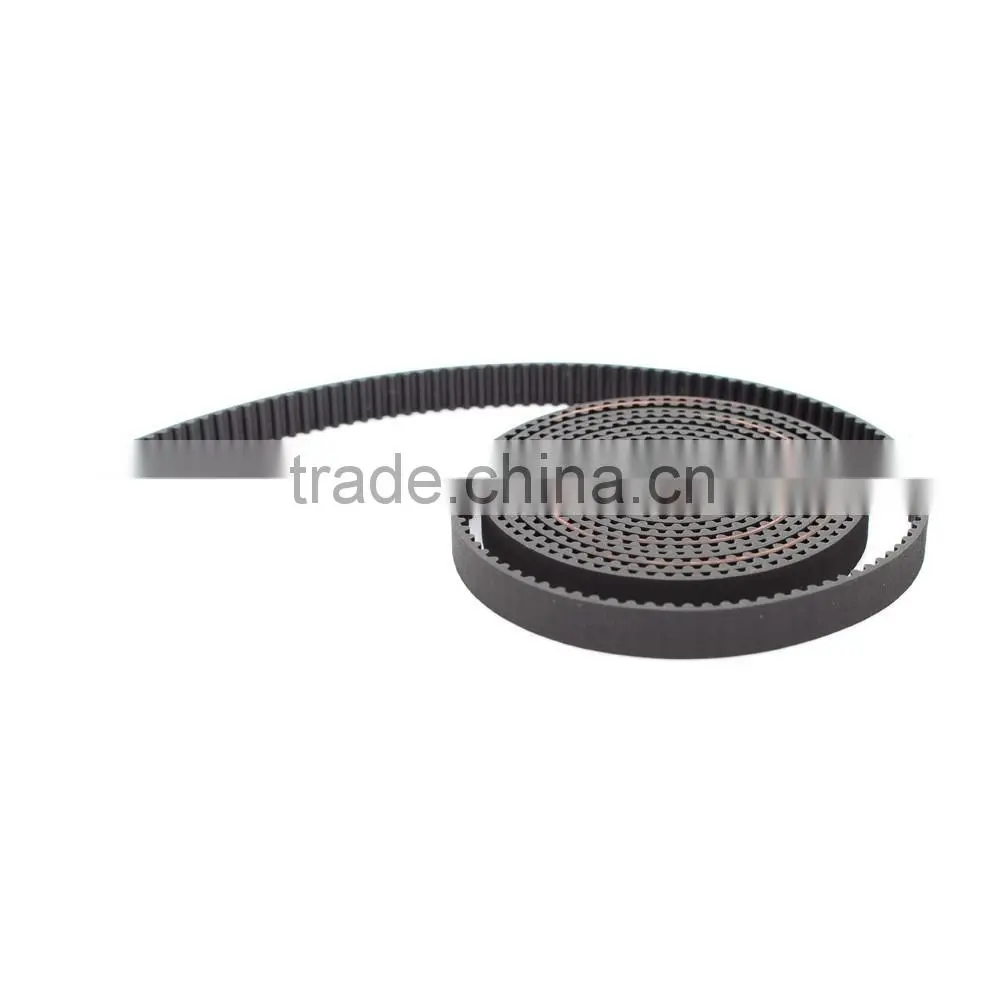

Industrial synchronous belt
Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.
They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
Material:
Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
The Dimension and Profile:
T tooth industrial rubber synchronous belt
Arc tooth industrial rubber synchronous belt
| Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) | Angle β° |
HTD |
2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
STPD/STS |
S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
RPP/HPPD |
2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6.00 | 10 |
WE TRUST:
WE ARE A STRONG TEAM!
WE ARE A PROFESSINAL FACTORY !
WE PRODUCE ALL MODELS OF Timing belt!
WE PROVIDE High Quality Timing Belt WITH COMPETITIVE PRICE !
Taizhou Feilizhou Rubber-Belt Co.,Ltd
