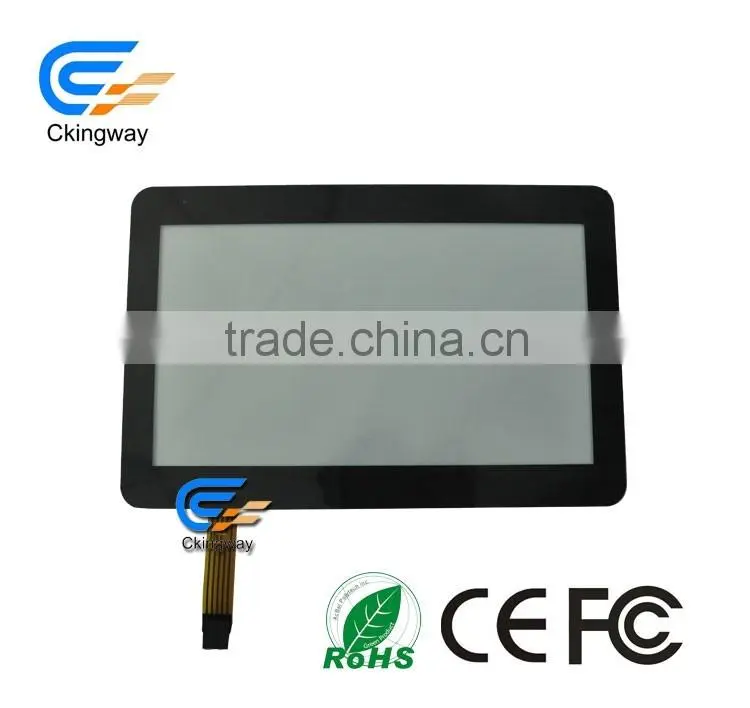

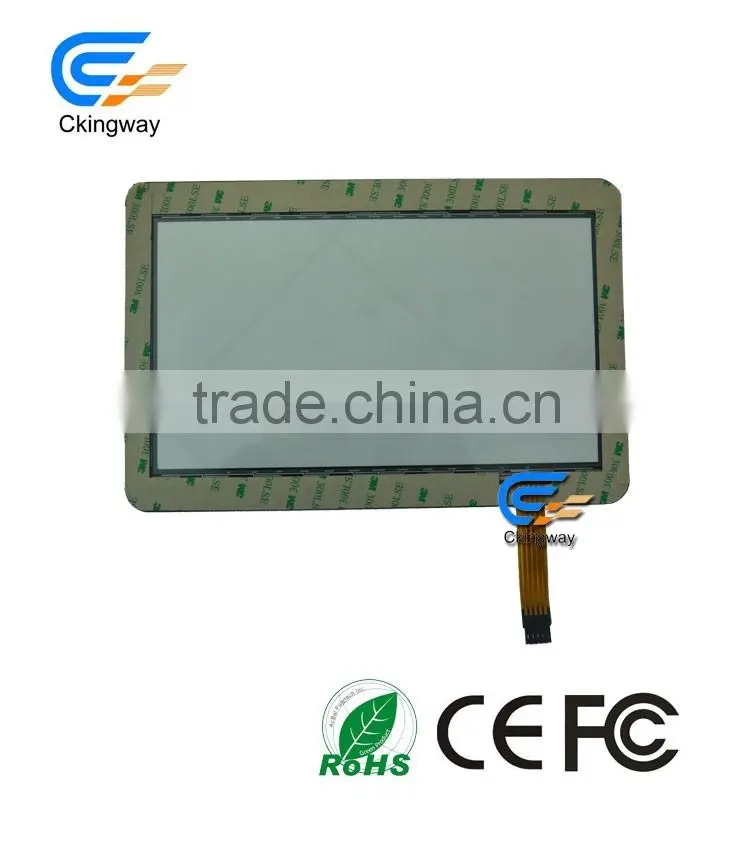

Touch Panel Ckingway SZTP1263-7-W5R
US$ 6.80 - 10.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 7"
Type:
Other, Resistive, 5 Wire Restistive Touch screen
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 High Quality Mutil Touch Screen 10 InchUS$ 15.20 - 16.00MOQ: 1 Piece -
Hot Selling 9" Touch Panel Miontor Of Ckingway 2016US$ 9.00 - 10.20MOQ: 1 Piece
-
2016 High Quality Mutil Touch Panel 10 InchUS$ 15.20 - 16.00MOQ: 1 Piece
-
Customed Resistive Touch Screen Panel 10.0''US$ 15.20 - 16.00MOQ: 1 Piece
-
Customed Replacement Touch Screen Panel 10.0''US$ 15.20 - 16.00MOQ: 1 Piece
Products Status
Stock
Screen Size
Other, 7"
Type
Other, Resistive, 5 Wire Restistive Touch screen
Interface Type
USB
Resolution
Other, 4096*4096, 4096*4096
Brand Name
Ckingway
Model Number
SZTP1263-7-W5R
Place of Origin
Guangdong, China
Product Description
The Feathers of Touch Panel Ckingway SZTP1263-7-W5R as below:
Touch Panel Ckingway SZTP1263-7-W5R for Packing :
Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Warranty : 1 Year without damaged by people actions.
1. High accuracy and sensitivity.
2. Operable in various light conditions, indoor and outdoor;
3. Adapt to adverse environmental conditions such as liquid splashes and wash down
4. It meet CE, FCC, ROHS certification
5 Wire Restistive Touch screen technology
5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
5 Wire Restistive Touch screen technology
5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
When the top ITO film is pressed and makes contact with the bottom glass, the contacted area will be detected via electrical conduction. The notable characteristic of 5wire resistive is that only the bottom glass has detecting function. Even if the top ITO film is damaged, the detecting function will not be affected (except for the damaged area).
| Size | 7.00" inch |
| Structure | Film + Glass |
| Connector | Pin 5 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 5 Wire Restistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | ≤250Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time touches |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Touch Panel Ckingway SZTP1263-7-W5R for Packing :
Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Warranty : 1 Year without damaged by people actions.
