Panel Flowmeter&acrylic Flow Meter &water Flowmeter
Specifications
water flow meter 1 highly visible scale 2 Easy installation 3 acrylic bodyPanel flowmeter&acrylic flow meter &water flowmeter
LZW is a standard precision-machined acrylic flow meter for liquids , has direct reading air water scales and is available in either English or Metric scales. The LZW flow meters can be configured with a control valve on the inlet or no valve at all; fittings and valve can be specified in either brass or stainless steel; O-rings can provided with Buna-N, Viton or other optional elastomers.
LZW Series Acrylic FLow Meter
LZW-Z Seris Acrylic Paneltype Flowmeter

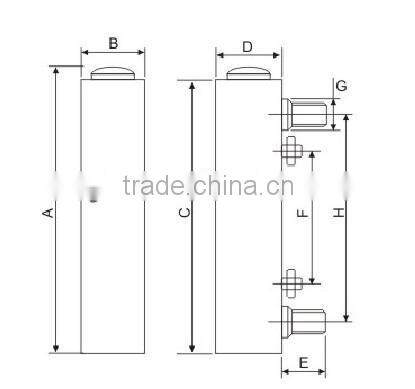

Moder | GPM (Liquid) | LPM (Liquid) | Screwthread | Accuracy | Sizs(mm) | |||||||
A | B | C | D | E | F | G | H | |||||
LZM-1GPM | 0.1-1 | 0.5-4 | ZG1/4"inter ZG1/2"outside | ±4% | 175 | 32 | 168 | 35 | 27 | 76 | 25 | 127 |
LZM-2GPM | 0.2-2 | 1-7 | ZG1/4"inter ZG1/2"outside | ±4% | 175 | 32 | 168 | 35 | 27 | 76 | 25 | 127 |
LZM-5GPM | 0.5-5 | 2-18 | ZG1/4"inter ZG1/2"outside | ±4% | 175 | 32 | 168 | 35 | 27 | 76 | 25 | 127 |
