Help CenterHigh Price Ratio 20m3 0.8Mpa Lng Container for Sale
Related Products
-
China Yukun 8 Tubes Skid CNG Semi TrailerUS$ 10,000 - 100,000MOQ: 1 Set -
2014 HGJ9402GDY Type Lng Trailer for Filling StationUS$ 10,000 - 100,000MOQ: 1 Set
-
Best Quality Reasonable New Semi Trailer Price of China YukunUS$ 10,000 - 100,000MOQ: 1 Set
-
20Mpa 8 Tube Bundle Type Semi Trailer of China Yukun MadeUS$ 10,000 - 100,000MOQ: 1 Set
-
Best-designed Gas Tube Trailer for Cng StationUS$ 10,000 - 100,000MOQ: 1 Set
Specific Parameter of lng container
|
| ||
| Item | Inner tank | Jacket |
| Filled Medium | LNG | expanded perlite |
| Working Temperature | -162 | normal temperature |
| Rated Temperature | -196 | 50 |
| Working Pressure(Mpa) | 0.8 | -0.1 |
| Rated Pressure(Mpa) | 0.84 | -0.1 |
| Airtight Test Pressure(Mpa) | 1.08 | 0.11 |
| Penumatic Test Pressure(Mpa) | 0.84 | |
| Pressure Component Material | 06Cr19Ni10 | Q345R |
| Total Volume(m3) | 22.2 | |
| Effective Volume(m3) | 20 | |
| Filling Ratio | 0.9 | |
| Size (mm) | 2620*7882(vertical)/2720*7600(horizontal) | |

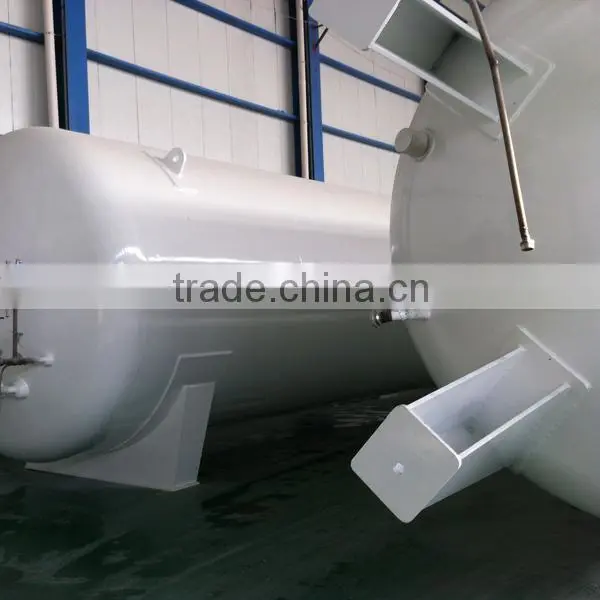

Structure design of lng container
1. The lng container is one of the main products of Yukun company, and there is 5-50m3 vertical tank and 5-50m3 horizontal tank;
2. The lng container is double-fixed vacuum powder insulation;
3. The material of inner lng container is stainless steel, and the outer tank is Q235B or 16MnR;
4. The anticorrosion coating on the surface of lng tank container use sandblasting derusting, blowing, spraying process, while using a two-component curing liquid coating;
5. The interlayer between inner and outer lng container use the perlite under thermal state as insulation material and be pumped into vacuum.
6. The appearance of lng container use overall sandblasting polishing treatment, which reaches the requirements of Sa-25 standard. Thickness of primer 80 μm, topcoat 120 μm, the finished paint ≥200 μm.
