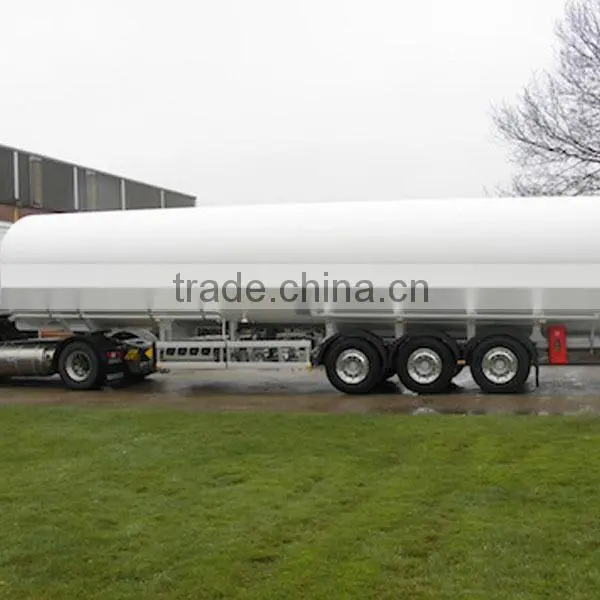

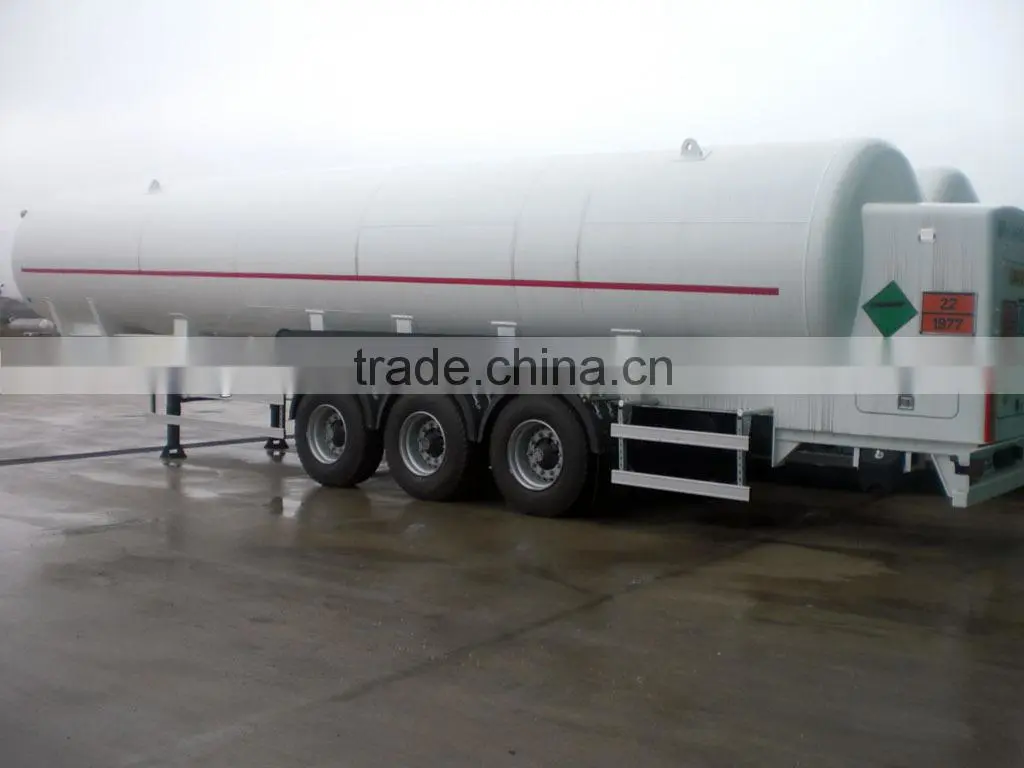

2014 HGJ9402GDY type lng trailer for filling station
Technical parameter of lng trailer
| Woking Pressure | 0.3 | Shell tank length(mm) | 12850 |
| Rated Pressure | 0.4 | Shell tank diameter(mm) | 2496 |
| Volume Capacity(m3) | 51 | Inner tank length(mm) | 12480 |
| Filled Medium | LNG | Inner tank diameter(mm) | 2336 |
| Whole Equipment Weight(kg) | 20450, 19760 | Tyre | 11.00R20 12PR |
| Max Laden Mass(kg) | 19550, 20240 | Semi-trailer Saddle | 16003 |
| Total Weight(kg) | 40000 | Anti-lock brake system | Yes |
| Spring Films | 7/7/7 | Wheel base(mm) | 6820+1350+1350 |
| Medium Density | 383.33kg/m3 | Rear Wheel base | 1840/1840/1840 |
| Trailer Size(mm) | 13000*2496, 2500*3990 | Departure Angle | 19° |
| Axle Load | -/23997 | Front/Rear Overhang(mm) | -/1550 |
| Rear Protection Section Size(mm) | 80*150 | Terrain Clearance(mm) | 500 |
The above parameter is our regular one, special parameter is available according to customer's request.
Sketch structure of lng trailer
Specific Description of lng trailer
² lng trailer comprises a half hanging type walking low-temperature liquefied gas, the chassis is arranged on the storage tank, the tank is fixedly connected on the chassis supporting, positioning device, and the rear end of the tank body and chassis forming accessory box is fixed and located in the accessory box temperature operating valves, pressure gauges, liquid level gauge, combination safety relief device, pneumatic emergency shut-off connections between the device and the various accessories.
² The advantages of our lng trailer is the base design bearing accessory box into one by special-shaped steel combined into a rectangle, the rectangle welded ladder form bearing plate below the chassis bearing beam subsidence structure, accessory box located in the rectangular frame, surrounded by a spherical end protrudes step bottom plate of tank.
