Specifications
natural gas/gaz cng refilling station1.Standard station
2.Capacity: 900Nm3/h
3.Water, mixed cooling
4.ISO9001
natural gas/gaz cng refilling station
CNG filling station include CNG mother station, CNG standard station and CNG daughter station.
1 step. natural gas purification and boostering

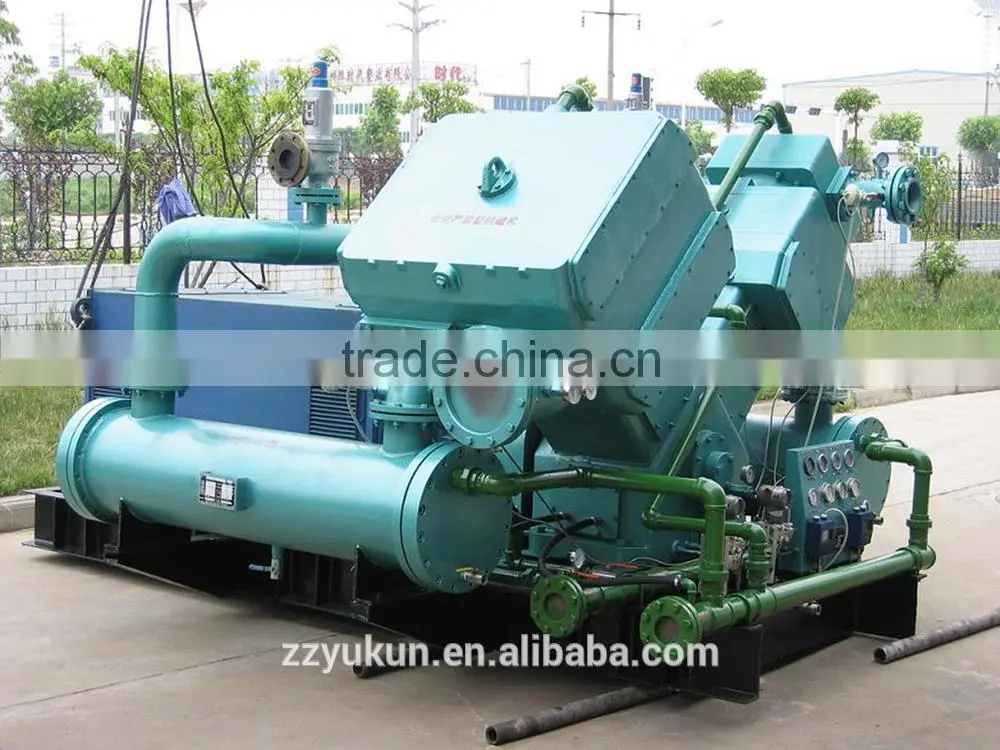

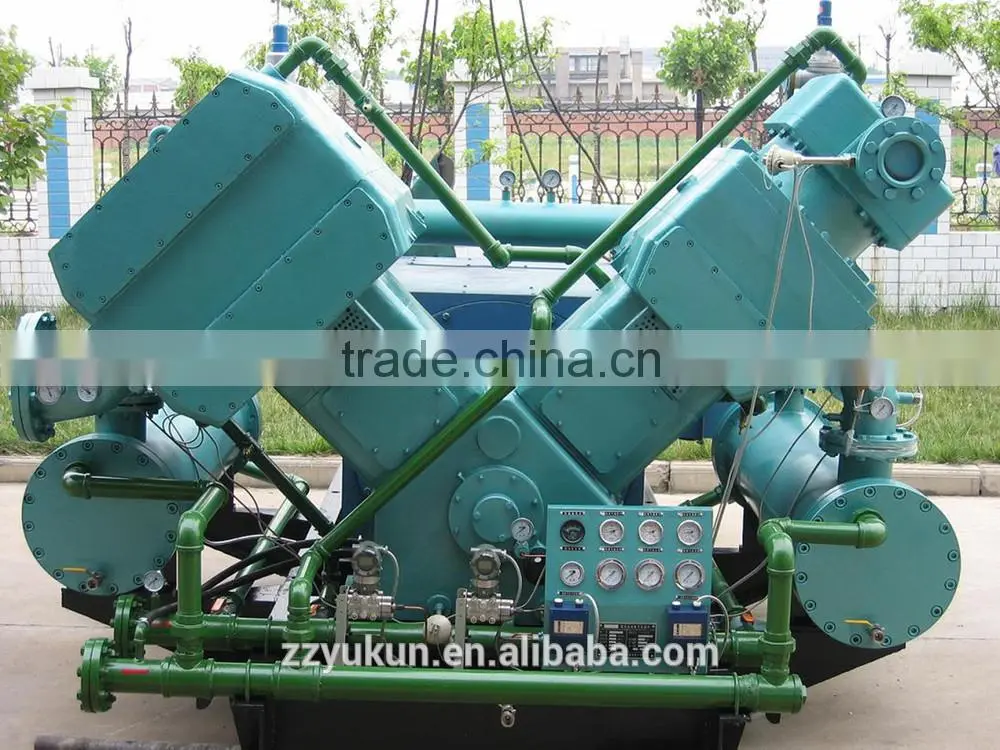

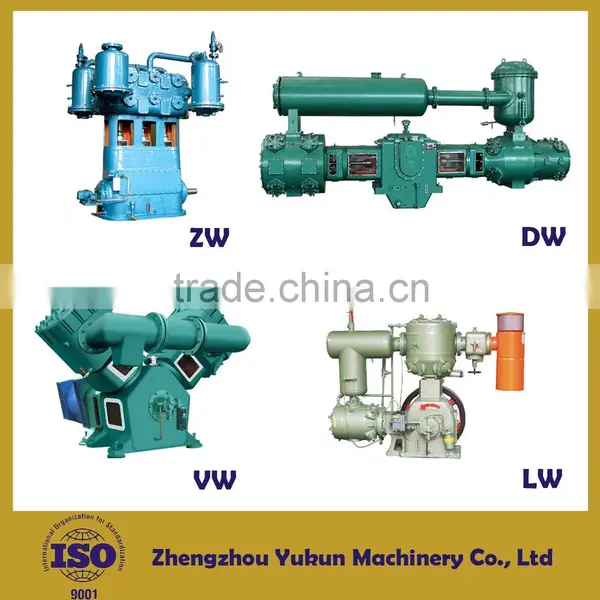

natural gas compressor
2 step, natural gas storage and transportation

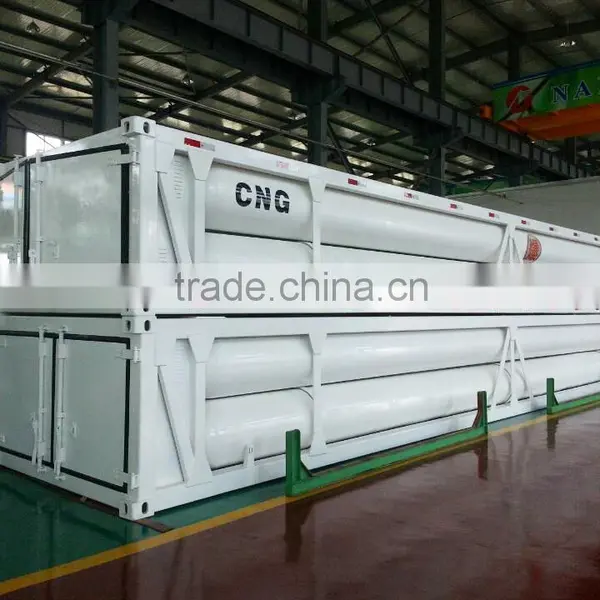

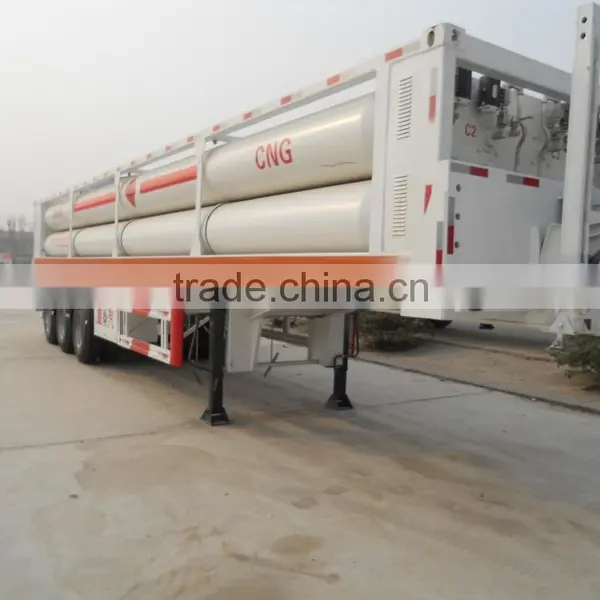

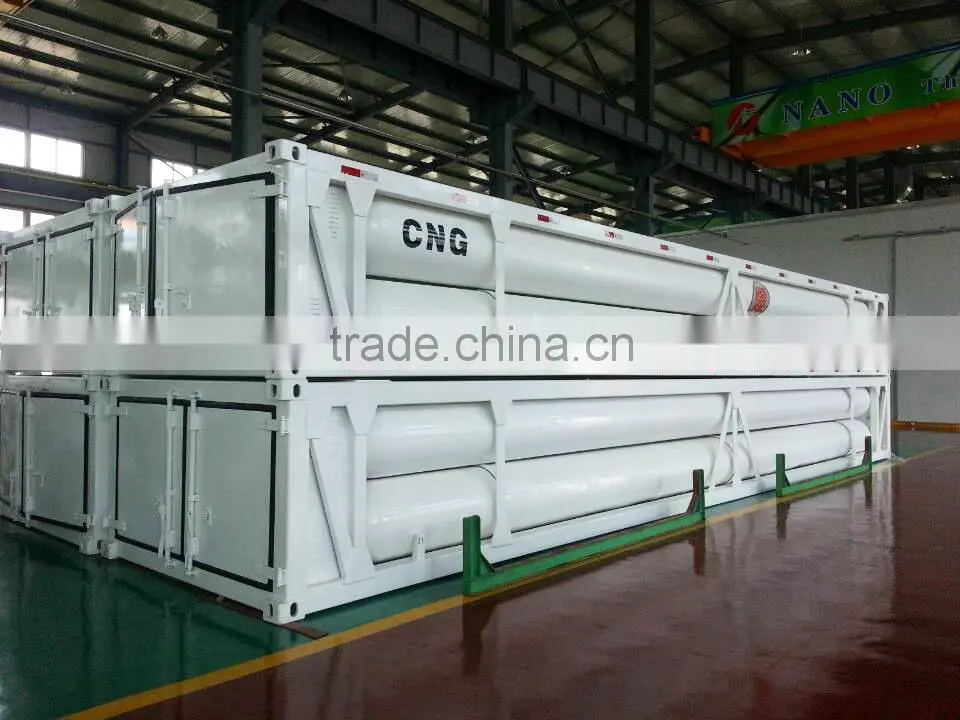

natural gas jumbo tube trailer
3. step, natural gas refilling

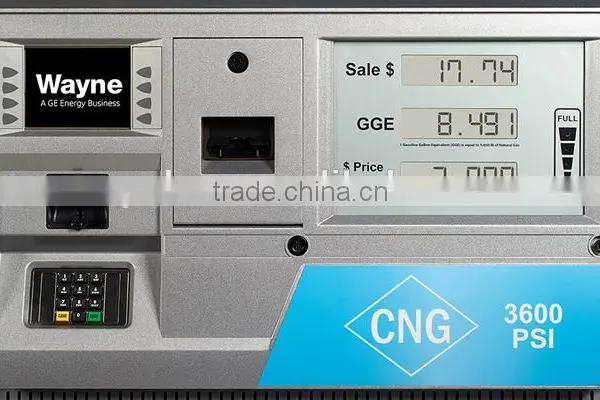

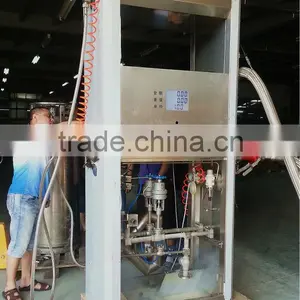

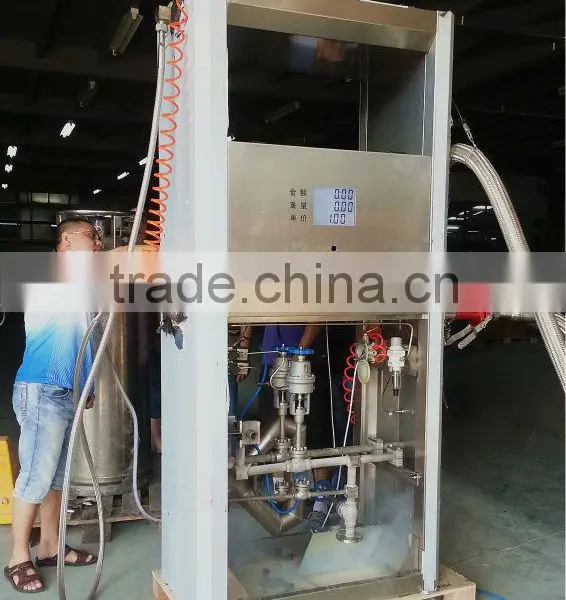

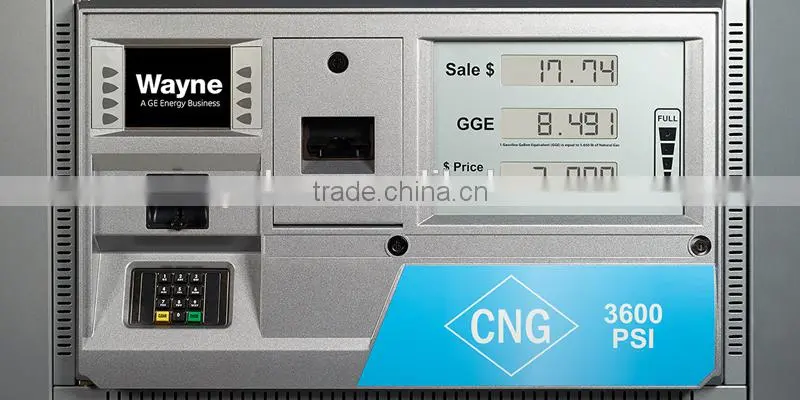

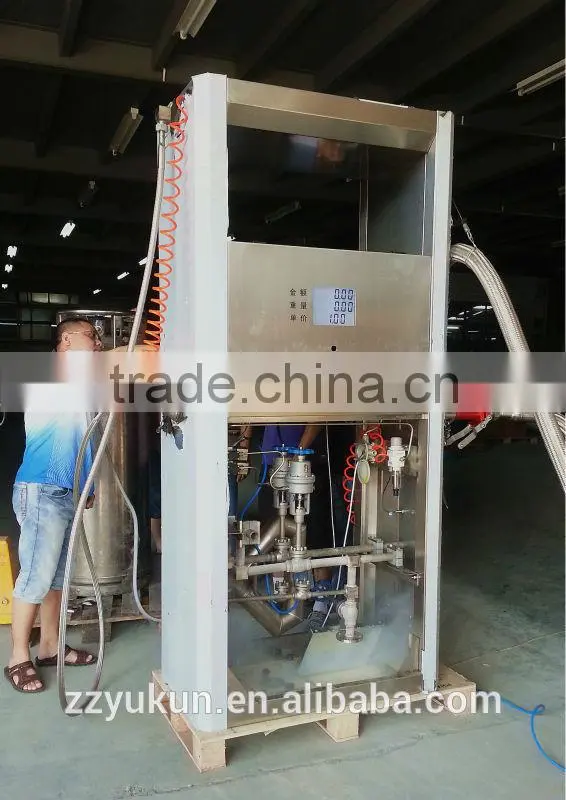

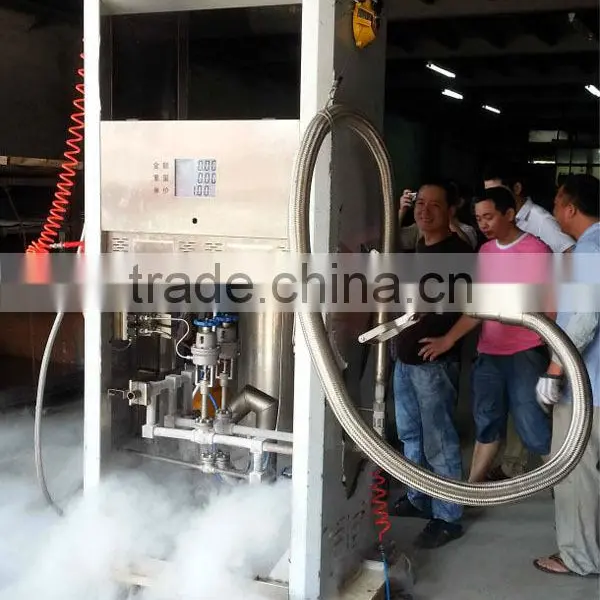

natural gas refilling dispenser
CNG mother station is the compressed natural gas one which for filling truck-mounted gas storage cylinders.
Scope of application(one set):
capacity: 100-6000Nm3/h
Power: 45-400kw,
Inlet pressure: 0.2-8MPa
CNG standard station is the compressed natural gas one which gets the CNG from gas pipelines, then fill the CNG automobiles after pressurizing or storaging in the fixed cascade cylinders.
Scope of application(one set):
capacity: 100-2000Nm3/h
Power: 45-280kw,
Inlet pressure: 0.05-4.0MPa
CNG daughter station is the compressed natural gas one which gets the CNG from truck-mounted gas storage cylinders, then fill the CNG automobiles.
Scope of application(one set):
capacity: 1000-1500Nm3/h
Power: 45-90kw,
Inlet pressure: 2-20MPa

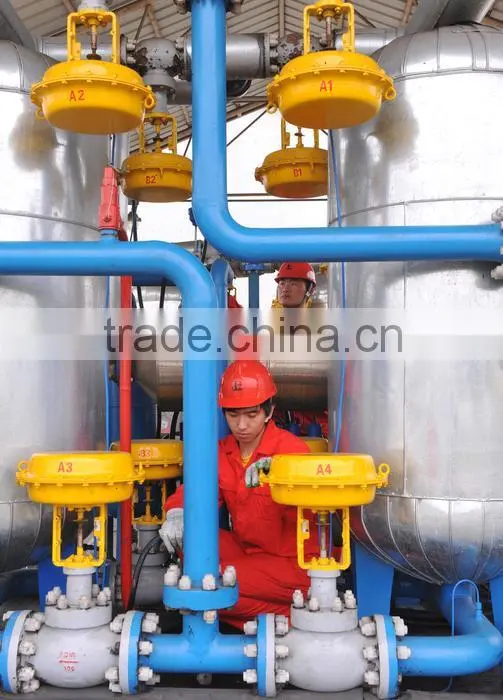

CNG filling station consists regulating metering, sweetener dehydration, compressor, cylinder cascade, CNG dispenser, control system.
| CNG General Filling Station (standard station) Compressor | ||||||
| Model |
Inlet Pressure Mpa |
Capacity Nm³/h |
Power KW |
Cooling Way |
Weight t |
Dimension mm |
| W-5.6/0.5-250 | 0.05 | 500 | 160 | water | 9 | 5000x2300x2200 |
| W-3.6/1-250 | 0.1 | 435 | 110 | water, mixed | 6 | 2400x2220x2150 |
| W-4.75/1-250 | 0.1 | 570 | 132 | water, mixed | 6 | 2400x2220x2150 |
| W-7.5/1-250 | 0.1 | 900 | 270 | water, mixed | 17 | 8500x2250x2200 |
| W-4.7/2-250 | 0.2 | 850 | 185 | water, mixed | 7 | 3820x2270x2150 |
| WF-3.6/(1.5-2.5)-250 | 0.15-0.25 | 540-750 | 160 | air | 14 | 6200x2190x2080 |
| W-3.6/3-250 | 0.15-0.3 | 540-860 | 185 | water, mixed | 7 | 4000x2270x2150 |
| D-3.45/(1-3)-250 | 0.1-0.3 | 410-620 | 160 | air,water,mixed | 18 | 4200x3900x2300 |
| V-3.2/(3-5)-250 | 0.3-0.5 | 760-1150 | 220 | air, water | 14 | 6300x2525x2500 |
| D-1.95/(6-12)-250 | 0.6-1.2 | 820-1520 | 220 | air,water,mixed | 18 | 5000x3500x2500 |
| D-3.5/(7-10)-250 | 0.7-1.0 | 1680-2310 | 355 | air,water,mixed | 23 | 6600x4300x2500 |
| W-1.5/8-250 | 0.8 | 810 | 132 | water, fixed | 8 | 4000x2300x2000 |
| VF-2/(10-16)-250 | 1.0-1.6 | 1320-2000 | 280 | air | 10 | 5600x2500x2300 |
| DFD-1.4/(13-17.5)-250 | 1.3-1.75 | 1170-1550 | 200 | air | 18 | 5600x3500x3700 |

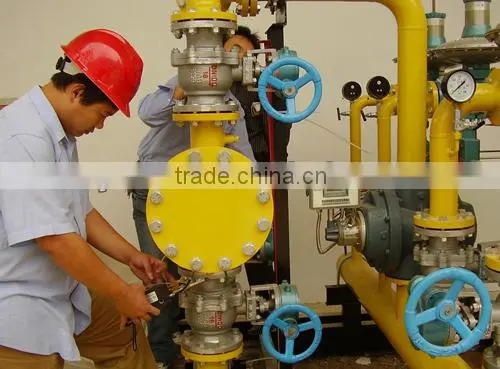

Install on site of cng kit station
