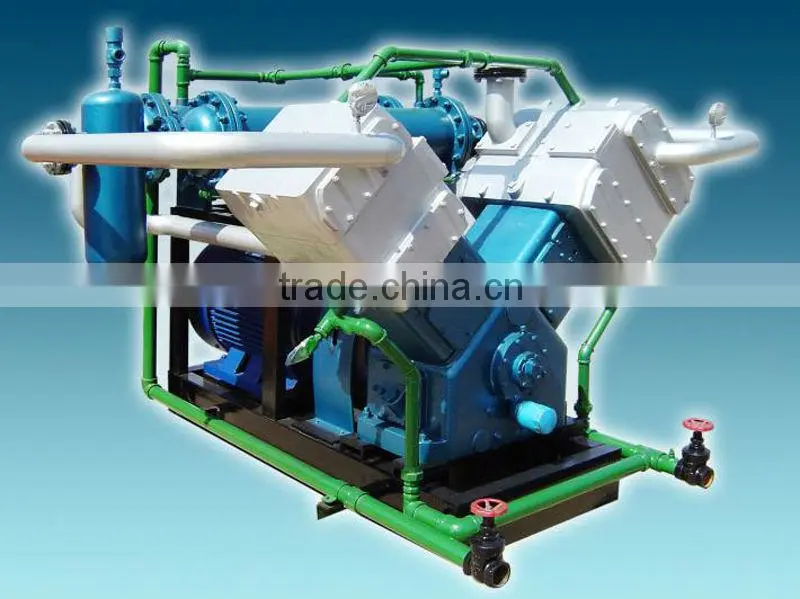

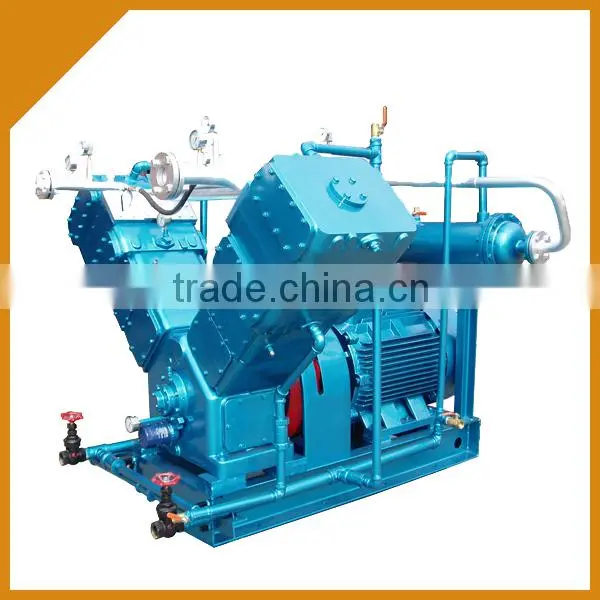

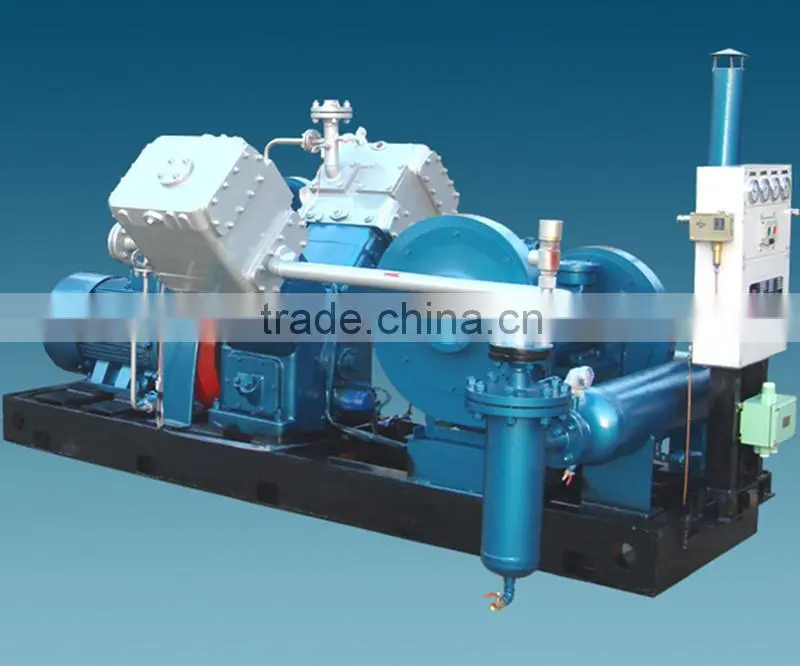

High pressure 15Mpa nitrogen compressor
Nitrogen compressor
- Nitrogen compressor is a device designed specially to compress nitrogen gas for storage;
- Nitrogen compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
- Nitrogen compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts nitrogen compressor
- The structure of nitrogen compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.
Parameters of nitrogen compressor:
Main Technical Parameters of nitrogen compressor | |||||||
Model |
Medium |
Capacity (m³/min) |
Inlet Pressure (Mpa) |
Outlet Pressure (Mpa) |
Power (kw) |
Overall Dimension (mm) |
Weight (kg) |
VW-10/8 |
Nitrogen |
10 |
Atmospheric |
0.8 |
75 |
2200x1600x1550 |
2200 |
VW-1.5/8-50 |
Nitrogen |
1.5 |
0.8 |
5 |
75 |
2300x1600x1750 |
3200 |
VW-2.5/4-150 |
Nitrogen |
2.5 |
0.4 |
15 |
110 |
2200x1600x1800 |
3200 |
VW-1.7/6-21 |
Nitrogen |
1.7 |
0.6 |
2.1 |
37 |
1780x1450x1550 |
2250 |
VW-2/5-30 |
Nitrogen |
2 |
0.5 |
3 |
55 |
2000x1500x1850 |
2150 |
VW-1.3/13-25 |
Nitrogen |
1.3 |
1.3 |
2.5 |
30 |
2000x1550x1550 |
2200 |
VW-1.67/8-140 |
Nitrogen |
1.67 |
0.8 |
14 |
110 |
2400x1550x1750 |
3100 |
2VW-16.7/0.5-20 |
Nitrogen |
16.7 |
0.05 |
2 |
185 |
4200x1600x1600 |
6500 |
2VW-28.5/0.4-20 |
Nitrogen |
28.5 |
0.04 |
2 |
280 |
4500x1650x1750 |
7500 |
2VW-6.5/5-40 |
Nitrogen |
6.5 |
0.5 |
4 |
220 |
4200x1650x1550 |
6000 |
2VW-2/6-80 |
Nitrogen |
5 |
0.6 |
8 |
280 |
4200x1650x1550 |
6000 |

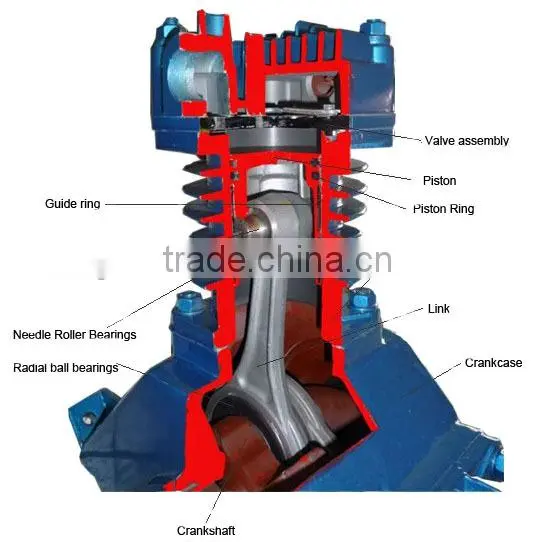

Piston type schematic diagram of nitrogen compressor
Workshop of nitrogen compressor
Why choose our nitrogen compressor?
Our company is committed to gas equipment development and production within 20 years, specially in nitrogen compressor, have a world class design team, advanced manufacturing center and focus manufacturing quality.
Our company certificate nitrogen compressor
