Specifications
gas nitrogen compressor1.Capacity: 2.5m3/min
2.Outlet pressure: 15Mpa
3.Power: 110KW
4.ISO9001

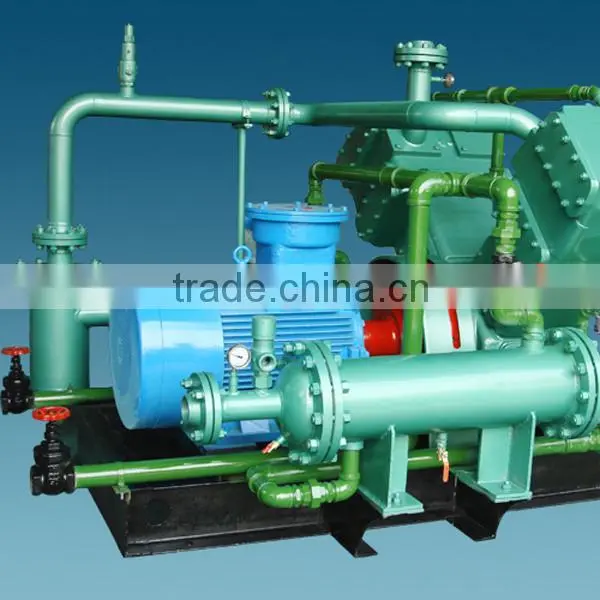

Power of 110KW gas nitrogen compressor
gas nitrogen compressor
- gas nitrogen compressor is a device designed specially to compress nitrogen gas for storage;
- gas nitrogen compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
- gas nitrogen compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts;
- The structure of gas nitrogen compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.
Parameters of gas nitrogen compressor:
Main Technical Parameters of gas nitrogen compressor | |||||||
Model |
Medium |
Capacity (m³/min) |
Inlet Pressure (Mpa) |
Outlet Pressure (Mpa) |
Power (kw) |
Overall Dimension (mm) |
Weight (kg) |
VW-10/8 |
Nitrogen |
10 |
Atmospheric |
0.8 |
75 |
2200x1600x1550 |
2200 |
VW-1.5/8-50 |
Nitrogen |
1.5 |
0.8 |
5 |
75 |
2300x1600x1750 |
3200 |
VW-2.5/4-150 |
Nitrogen |
2.5 |
0.4 |
15 |
110 |
2200x1600x1800 |
3200 |
VW-1.7/6-21 |
Nitrogen |
1.7 |
0.6 |
2.1 |
37 |
1780x1450x1550 |
2250 |
VW-2/5-30 |
Nitrogen |
2 |
0.5 |
3 |
55 |
2000x1500x1850 |
2150 |
VW-1.3/13-25 |
Nitrogen |
1.3 |
1.3 |
2.5 |
30 |
2000x1550x1550 |
2200 |
VW-1.67/8-140 |
Nitrogen |
1.67 |
0.8 |
14 |
110 |
2400x1550x1750 |
3100 |
2VW-16.7/0.5-20 |
Nitrogen |
16.7 |
0.05 |
2 |
185 |
4200x1600x1600 |
6500 |
2VW-28.5/0.4-20 |
Nitrogen |
28.5 |
0.04 |
2 |
280 |
4500x1650x1750 |
7500 |
2VW-6.5/5-40 |
Nitrogen |
6.5 |
0.5 |
4 |
220 |
4200x1650x1550 |
6000 |
2VW-2/6-80 |
Nitrogen |
5 |
0.6 |
8 |
280 |
4200x1650x1550 |
6000 |
Piston type schematic diagram of gas nitrogen compressor
Workshop of gas nitrogen compressor
Why choose our gas nitrogen compressor?
Our company is committed to gas equipment development and production within 20 years, specially in gas nitrogen compressor, have a world class design team, advanced manufacturing center and focus manufacturing quality.
Our company certificate
