15Mpa high pressure nitrogen compressor
High pressure nitrogen compressor
- high pressure nitrogen compressor is a device designed specially to compress nitrogen gas for storage;
- high pressure nitrogen compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
- high pressure nitrogen compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts;
- The structure of high pressure nitrogen compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.
Technical Parameters high pressure nitrogen compressor
Nitrogen compressor Technical Parameter | |||||||
Model |
Medium |
Capacity (m³/min) |
Inlet Pressure (Mpa) |
Outlet Pressure (Mpa) |
Power (kw) |
Overall Dimension (mm) |
Weight (kg) |
VW-10/8 |
Nitrogen |
10 |
Atmospheric |
0.8 |
75 |
2200x1600x1550 |
2200 |
VW-1.5/8-50 |
Nitrogen |
1.5 |
0.8 |
5 |
75 |
2300x1600x1750 |
3200 |
VW-2.5/4-150 |
Nitrogen |
2.5 |
0.4 |
15 |
110 |
2200x1600x1800 |
3200 |
VW-1.7/6-21 |
Nitrogen |
1.7 |
0.6 |
2.1 |
37 |
1780x1450x1550 |
2250 |
VW-2/5-30 |
Nitrogen |
2 |
0.5 |
3 |
55 |
2000x1500x1850 |
2150 |
VW-1.3/13-25 |
Nitrogen |
1.3 |
1.3 |
2.5 |
30 |
2000x1550x1550 |
2200 |
VW-1.67/8-140 |
Nitrogen |
1.67 |
0.8 |
14 |
110 |
2400x1550x1750 |
3100 |
2VW-16.7/0.5-20 |
Nitrogen |
16.7 |
0.05 |
2 |
185 |
4200x1600x1600 |
6500 |
2VW-28.5/0.4-20 |
Nitrogen |
28.5 |
0.04 |
2 |
280 |
4500x1650x1750 |
7500 |
2VW-6.5/5-40 |
Nitrogen |
6.5 |
0.5 |
4 |
220 |
4200x1650x1550 |
6000 |
2VW-2/6-80 |
Nitrogen |
2 |
0.6 |
8 |
280 |
4200x1650x1550 |
6000 |

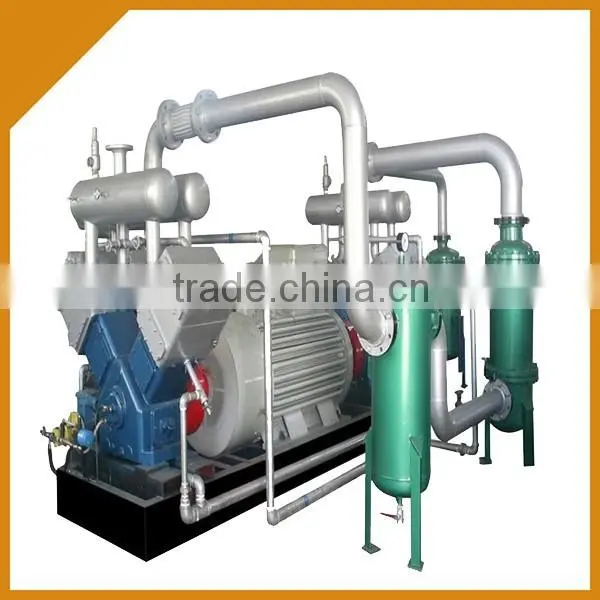

Photos high pressure nitrogen compressor
Why choose our high pressure nitrogen compressor?
Our company is committed to gas equipment development and production within 20 years, specially in high pressure nitrogen compressor, have a world class design team, advanced manufacturing center and focus manufacturing quality.
Customer visit high pressure nitrogen compressor
