Home > Industrial Equipment & Components > Compressor > Compressor Unit > 6m3/min Big Nitrogen Compressor
6m3/min Big Nitrogen Compressor
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Piston, VW
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sales in 2014 High Quality Nitrogen Compressor PriceUS$ 10,000 - 100,000MOQ: 1 Set -
High Quality Stationary Oil Free Nitrogen CompressorUS$ 10,000 - 100,000MOQ: 1 Set
-
Outlet Pressure of 30 Bars Nitrogen CompressorUS$ 10,000 - 100,000MOQ: 1 Set
-
Hot Sales in 2013 High Quality Nitrogen Air CompressorUS$ 10,000 - 100,000MOQ: 1 Set
-
AC Power Stationary High Quality Nitrogen Gas CompressorUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Type
Other, Piston, VW
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Oil-free
Mute
No
Place of Origin
Henan, China
Brand Name
YUKUN
Model Number
VW-6/6.5-14
Voltage
380V
Dimension(L*W*H)
2200X1500X1550mm
Weight
3100KG
Certification
ISO9001 2000
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
big nitrogen compressor1.Capacity:6m3/min
2.Discharge pressure:1.4Mpa
3.Power:75KW
4.ISO9001

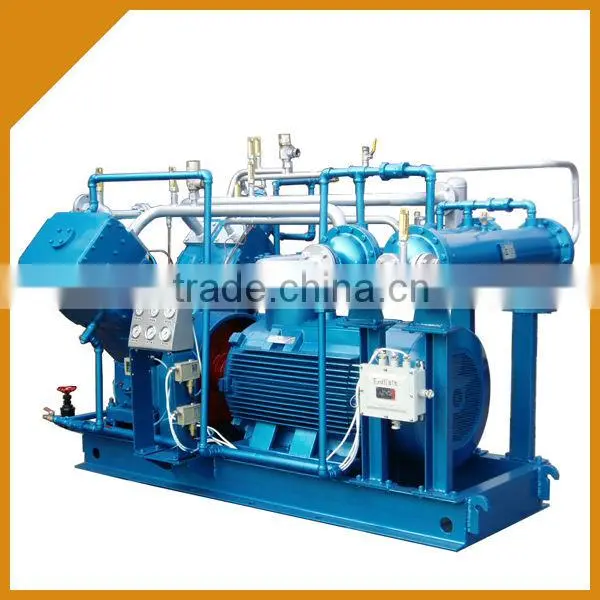

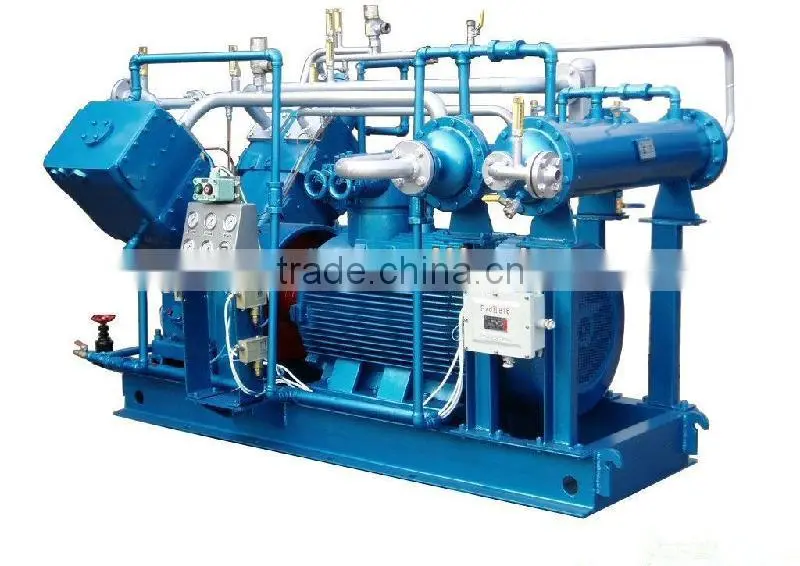

6m3/min big nitrogen compressor
Big nitrogen compressor
- Big nitrogen compressor is a device designed specially to compress nitrogen gas for storage;
- Big nitrogen compressor is generally reciprocating types with the most common being guided piston/metal diaphragm;
- Big nitrogen compressor is used to compressor the gas to enormous pressures,often in excess of 40,000PSI, so that it maybe stored in usable amounts;
- The structure of big nitrogen compressor includes1 stage,2 stage,3 stage,4 stage to meet the client's different demands.
Parameters of big nitrogen compressor
| Main Technical Parameters | |||||||
| Type | Medium | Capacity | Suction | Discharge | Power | Overall | Weight |
| (m³/min) | Pressure | Pressure | (kw) | Dimension | (kg) | ||
| (Mpa) | (Mpa) | (mm) | |||||
| VW-10/8 | Nitrogen | 10 | Atmospheric | 0.8 | 75 | 2200x1600x1550 | 2200 |
| VW-10/20 | Nitrogen | 10 | Atmospheric | 2 | 90 | 2300x1600x1750 | 2400 |
| VW-12/12 | Nitrogen | 12 | Atmospheric | 1.2 | 90 | 2300x1600x1550 | 2400 |
| VW-18/18 | Nitrogen | 18 | Atmospheric | 0.8 | 110 | 2300x1600x1600 | 2500 |
| VW-4.2/8-20 | Nitrogen | 4.2 | 0.8 | 2 | 90 | 2100x1550x1550 | 3100 |
| VW-6/1.5-25 | Nitrogen | 6 | 0.15 | 2.5 | 90 | 2100x1550x1550 | 3100 |
| VW-4/8 | Nitrogen | 4 | Atmospheric | 0.8 | 30 | 2000x1550x1550 | 2200 |
| VW-3/7 | Nitrogen | 3 | Atmospheric | 0.7 | 18.5 | 1900x1550x1550 | 2000 |
| VW-22/2.6 | Nitrogen | 22 | Atmospheric | 0.26 | 90 | 2400x1650x1650 | 3000 |
| VW-4.44/2-8 | Nitrogen | 4.44 | 0.2 | 0.8 | 45 | 2000x1550x1550 | 2100 |
| VW-9.5/30 | Nitrogen | 9.5 | Atmospheric | 3 | 90 | 2300x600x1750 | 2300 |
| VW-1.5/8-50 | Nitrogen | 1.5 | 0.8 | 5 | 75 | 2300x1600x1750 | 3200 |
| VW-8/2-25 | Nitrogen | 8 | 0.2 | 2.5 | 160 | 2400x1600x1650 | 3600 |
| VW-2.5/4-150 | Nitrogen | 2.5 | 0.4 | 15 | 110 | 2200x1600x1800 | 3200 |
| VW-1.7/6-21 | Nitrogen | 1.7 | 0.6 | 2.1 | 37 | 1780x1450x1550 | 2250 |
| VW-2/40 | Nitrogen | 2 | Atmospheric | 4 | 30 | 2000x1550x1750 | 2100 |
| VW-10/40 | Nitrogen | 10 | Atmospheric | 4 | 132 | 2400x1650x1950 | 2800 |
| VW-2/5-30 | Nitrogen | 2 | 0.5 | 3 | 55 | 2000x1500x1850 | 2150 |
| VW-20/7 | Nitrogen | 20 | Atmospheric | 0.7 | 110 | 2800x1700x1730 | 3300 |
| VW-9.25/1-10 | Nitrogen | 9.25 | 0.1 | 1 | 90 | 2200x1580x550 | 3300 |
| VW-6/6.5-14 | Nitrogen | 6 | 0.65 | 1.4 | 75 | 2200x1500x1550 | 3100 |
| VW-1.3/13-25 | Nitrogen | 1.3 | 1.3 | 2.5 | 30 | 2000x1550x1550 | 2200 |
| VW-1.67/8-140 | Nitrogen | 1.67 | 0.8 | 14 | 110 | 2400x1550x1750 | 3100 |
| 2VW-20/30 | Nitrogen | 20 | Atmospheric | 3 | 200 | 4200x1600x1850 | 6900 |
| 2VW-20/18 | Nitrogen | 20 | Atmospheric | 1.8 | 160 | 4200x1600x1600 | 6900 |
| 2VW-25/20 | Nitrogen | 25 | Atmospheric | 2 | 220 | 4200x650x1650 | 7000 |
| 2VW-16.7/0.5-20 | Nitrogen | 16.7 | 0.05 | 2 | 185 | 4200x1600x1600 | 6500 |
| 2VW-29.2/6 | Nitrogen | 29.6 | Atmospheric | 0.6 | 160 | 4100x1600x1600 | 6000 |
| 2VW-12/6-16 | Nitrogen | 12 | 0.6 | 1.8 | 250 | 4200x1550x1550 | 6500 |
| 2VW-20/8-15 | Nitrogen | 20 | 0.8 | 1.5 | 250 | 4000x1520x1550 | 7200 |
| 2VW-13/40 | Nitrogen | 13 | Atmospheric | 4 | 160 | 4200x1650x1750 | 6500 |
| 2VW-28.5/0.4-20 | Nitrogen | 28.5 | 0.04 | 2 | 280 | 4500x1650x1750 | 7500 |
| 2VW-6.5/5-40 | Nitrogen | 6.5 | 0.5 | 4 | 220 | 4200x1650x1550 | 6000 |
| 2VW-2/6-80 | Nitrogen | 5 | 0.6 | 8 | 280 | 4200x1650x1550 | 6000 |
Our nitrogen compressors are particularly suitable for all type of applications and depending on your requirements, we can provide the most suitable nitrogen compressor fitting your needs.
