Specifications
1.Alarm funtion2.FC CE certificate
3.anti-slip cell phone holder
4.Remote control
5.Can charge for display article

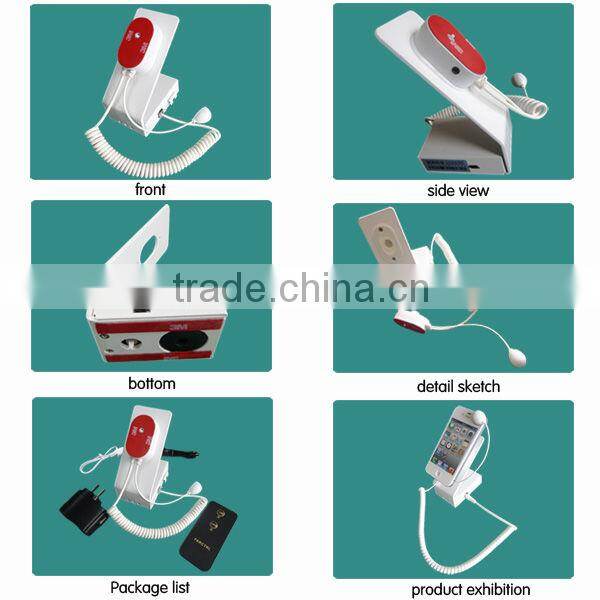

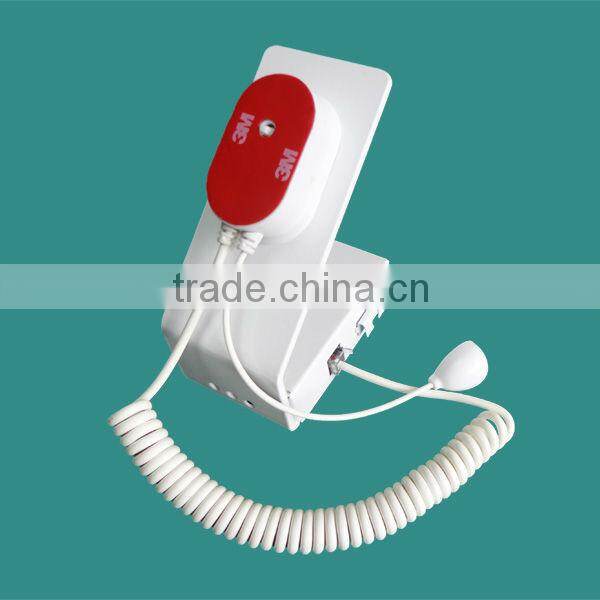

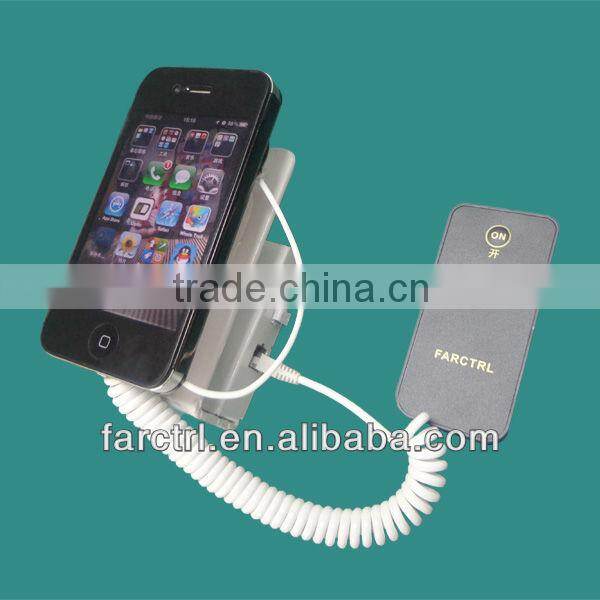

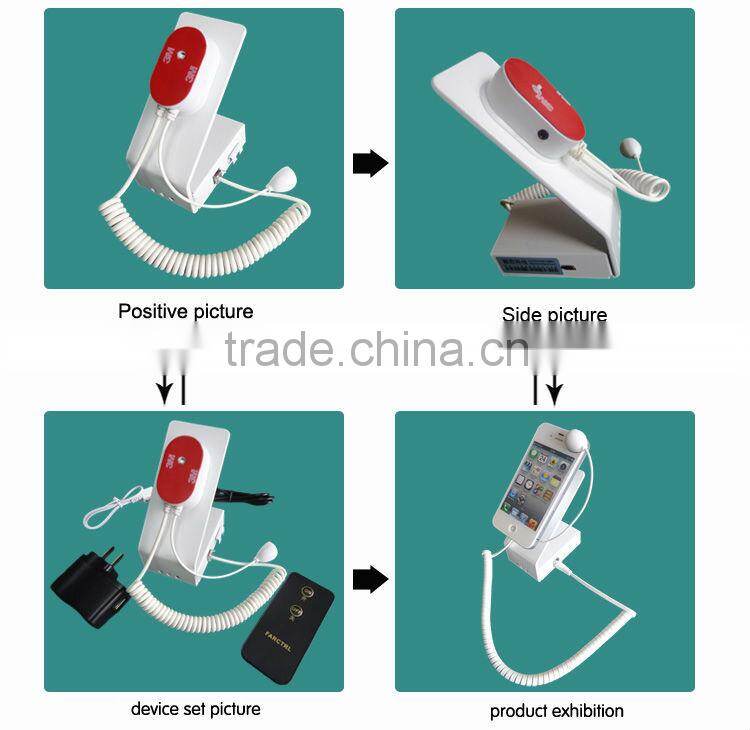

3M Sticker Cell Phone Wall Holder
1.Product description:
1) This secure display alarm is widely used in the digital products stores, the supermarket open shelves for cell phone, camera, Ipad samples exhibition and trade Show ,it Prevent your displaying electronics from stealing
2) alarm security display stand for mobile phone, camera and Ipad ,It's convenience for the customers to see mobile phone,camera,laptop,MP4 in the exclusive shops, etc.
3) With the connection of the electronics to the display shelf, security display holder can realized immediately while removed.
4) Charging and anti-theft alarm for mobile phone share one line.
2.Basic specification
Operating Voltage |
5V DC |
Horn Alarm Output |
≤120 db at 1 ft |
Stand-by Current Consumption |
≤3.70mA |
Quiescent Current Consumption |
≤3.40mA |
Activation Current Consumption |
≤220mA |
Metal Display Frame Color |
Black/White |
Battery |
Lithium-ion battery |
the charging function |
You can charge the 5V digital products output. |
Set up defences: |
Remote control |
3. Features
1) Quick Reaction speed, pull or cut the USB cable, the Alarm warning.
2) Once the alarm has been triggered, restitution cannot disarm, the alarm must be reset by remote control “OFF” key to disarm (press remote control “OFF” key to relief). With high safety factor, it can protect customer’s property.
3) Built-in alarm horn, high-volume alarm on the bottom, can avoid destruction of the thief.
4) With Remote Control function, easy to use.
5) LED light display current status.
6) Wide range Application: retail chain store or exhibition center for Tablet PC, Camera, Smart Phone, GPS and other exhibits anti-theft and reusable .
4. Operating Step:
1) Power ON/OFF Slide Switch: Please turn power ON before setting (on the bottom).
2) Tear off 3M stickers on the bottom, and stick MX-33P metal bottom on display desk.
3) Tear off 3M sticker (on Magnetic sensor) and stick on rear side Smart Phone.
4) Tear off 3M sticker on the Demo-Alert (small detecting sensor), and stick on Smart Phone (front or rear side surface).
5) Set up Demo-Alert in Active position: press ON button on Remote Control; you'll hear a beep sound and Red LED blinking (one time), the MX-33P in Active position.
6) Demo-Alert Sensor: 3 detecting sensors and phone jack connector are detect point, either one of detecting sensor Slip or phone jack disconnecting (active position), Alarm warning immediately and Blue LED blinking until alarm relief.
7) Relief alarm: press Remote Control OFF button to relief alarm warning and hear horn alarm.
8) Active Display Charge: the MX-33P provide charge function, when Smart Phone battery low, you can plug charge cable between Smart Phone (Micro USB port) and Magnetic connector (a black hole at left side Magnetic connector), or direct charge from Adaptor to Smart Phone.
9) Low Power Indicator: when green LED light blinking, please plug USB port into to AC adaptor, mini USB plug into left side Demo-Alert metal base, then AC adaptor plug into Outlet (please avoid battery dried-up). 10) Working Period (in Active): 2 weeks (full charge).
11) Charge Time: 5 hours.
12) Low Power: Green LED blinking until power dried-up or charge.
13) Charging: Red LED turns ON.
14) Full Charge: Green LED turn ON.
15) Alarm: Red LED Blinking.
16) In Active (when you set up Alarm): Blue LED Blinking.
17) Remote Control: 5 units with one remote control.
5.alarm reaction as following ways:
break circuit resistance
short circuit resistacne
other circuit-replacing resistacne
cut the resistance
prying and cutting spring wire
remove the sensor
pull out connector
6. Package Included
1) series (Remote Control Demo-Alert).
2) Universal USB Adaptor 5Vdc / 500mA.
3) Infrared Remote Control.
4) USB to mini USB Cable.
5) Magnetic Detecting Sensor Cable.
6) Micro USB to 3.5Φcharge cable.
duction certification
8.Good Sales service
we have 3 after-sale engineers solve customers problem and The warranty date After delivery goods 14 Months. if you have any questions about our production, you could call us or leave message on line, we will answer in time.
