plastic tube filling and sealing machine for ointment/lotion/cream/toothpaste/cosmetic
shanghai shenhu packaging machinery equipment co.,ltd | |||||
product | |||||
| material | stainless steel 304 | ||||
| application | used for plastic/laminated/aluminum tube package such as toothpaste,cosmetics | ||||
| feature | 1)mechanotronics mechanical-electrical integration | ||||
| 2)PLC control system | |||||
| 3)colour touch screen display | |||||
| 4)automatically feeding tube into tube holder | |||||
|
5)The photoelectric target-aiming working station employs accurate detector and marching type motor,ensuring the tube design at the correct position. |
|||||
|
6)Filling nozzle enters tube inside to fill.As it fills it will moves up and prevent material from over flowing and spilling. |
|||||
| 7)no tube no filling | |||||
| 8)automatically printing the character code at the required place | |||||
| specification | |||||
| Item | Fold sealing | heat sealing | |||
| Productivity | 80-100pcs/min | 80-100pcs/min | |||
| Filling volume | 2-200 ml(customized) | 2-200ml(customized) | |||
| Tube diameter | 11-35mm(customized) | 16-35ml(customized) | |||
| Tube length | 50-200mm(customized) | 50-200mm(customized) | |||
| Max power | 1.5kw | 7.5kw | |||
| Water consumption | 0 | 3-6L/min | |||
| Machine weight | ≈1300kg | ≈1300kg | |||
| Dimension(L*W*H) | 2150×850×2100mm | 2150×850×2100mm | |||
price | |||||
| payment | T/T,L/C ect. | ||||
| quotation | based on filling material,tube material,diameter,length,volume and productivity | ||||
| port | shanghai,china | ||||
| package | standard export wooden case package | ||||
| note | |||||
|
1.we will offer you price refering to your detail requests,so please kindly inform us the needed information for quotation | |||||
|
2.we make different models machine as per your requirements,we would like to give some advice for reference if necessary | |||||
| 3.The picture above just for your reference | |||||

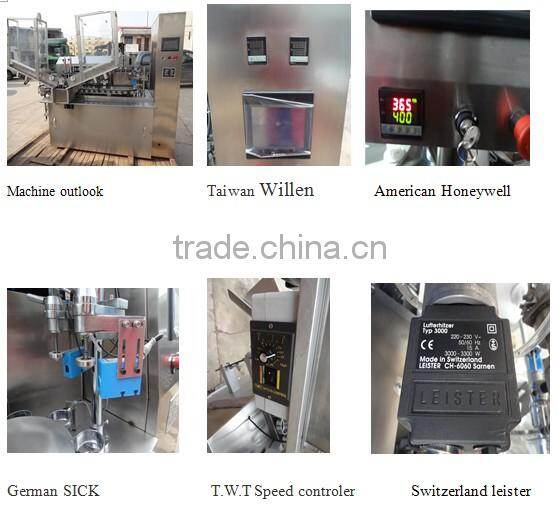

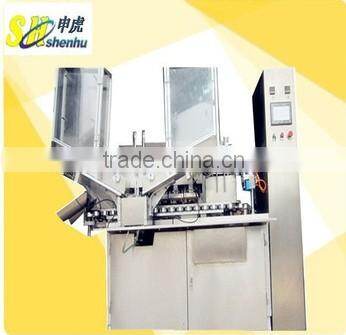

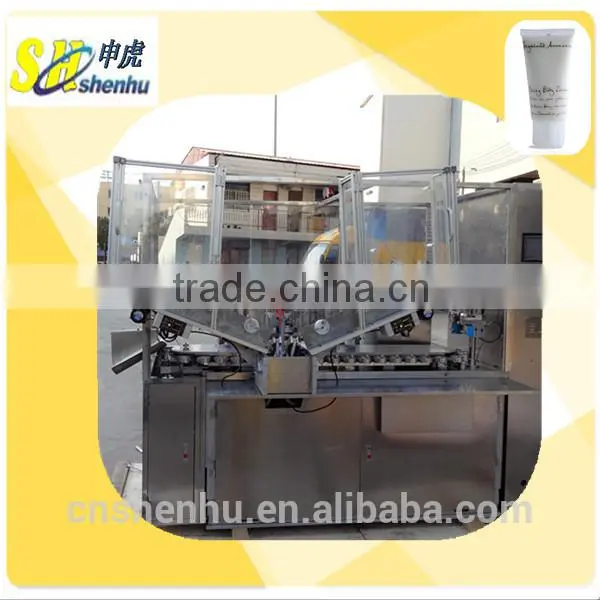

Machine picture:

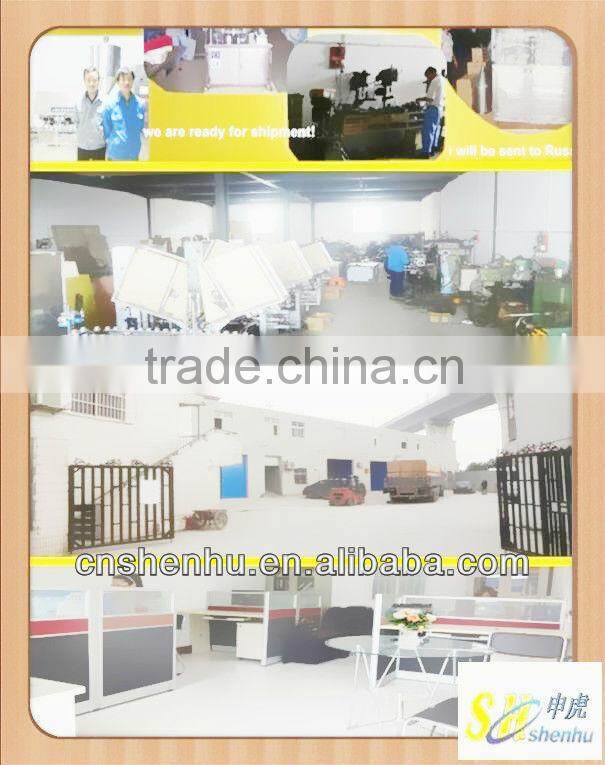

Our fatory:
Our Partner:
