Product Name: Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Description:
Item |
Heat sealing |
Voltage |
220V/380v/50Hz/60Hz |
Productivity |
80-100pcs/min |
Filling volume |
3-250 ml(customized) |
Tube diameter |
11-38mm(customized) |
Tube length |
50-200mm(customized) |
Max power |
7.5KW |
Water consumption |
3-6L/min |
Machine weight |
About 1300kg |
Dimension(L*W*H) |
2150×850×2100mm |
Thank you for your visiting, our company is specialized in producing various soft tube,
plastic tube, composite tube, aluminum tube filling and sealing machine, suitable to a variety of toothpaste, cosmetics, skin care products,protective creams, ointments and other paste filling .
My company has a variety of filling and sealing machine, high-speed, automatic,
semi-automatic, rotary, reciprocating, plastic bubes, Aluminum tubes, internal
heating, external heating and other filling and sealing machine, for the diameter of
10 -50mm, filling range is 3-250ml.
Also, we have cup filling and sealing machine for liquid or semi-liquid, such as milk, juice, soymilk, jelly, yogurt and so on. Also, we have cup filling and sealing for powder, such as, coffee, milk, soybean and so on. For k-cup coffee and nespresso coffee capsule.
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Main description:
Use rotary piston way, filling precision, using light point control, heated sealing all work with high precision cylinder full stroke control, easy to adjust filling volume, the filling speed can
be adjusted. It applies to all kinds of composite tubes, plastic pipe and metal pipe filling and sealing, date printing, cut the tail. Sealing neat appearance, sealing strong, high accuracy,
good stability. According to the different material properties, Optional ingredients bucket
heating system, anti-leak filling head, Machine adopts imported PLC control, import the
original frequency control, pneumatic components using (AIRTAC), import original (SICK) photoelectric sensors, high stability, imported hot air flow meter and the formation of hot air heating system.
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Packaging materials and filling materials Scope:
1) soft tube, plastic pipe, composite pipe.
2) ointment, cream, gel viscosity fluids agents.
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Applicable industries:
Cosmetics, light industry (household chemicals), pharmaceutical, food and other industries
for enterprise product selection to the hose for the packaging container, the device suitable
for ointments, creams, gels or viscosity fluid filling, and then sealing the hose tail and print
code, the system produces the finished product.
Soft tube filling and sealing machine is mainly used for the packaging containers of plastic hose material quantitative filling, sealing, this machine is widely used in pharmaceutical,
cosmetic, food, chemical and other industries packaging. Such as ointments, gels, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste
filling and sealing materials.
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
work procedure:
Automatic tube feeding→ tube position (hose container) → automatic identification label
located on pipe → → filling quantity control test + + [hose internal cleansing (option)] → → filling → heating the tube (inner heating for plastic tube, outer heating for compound tube) → tail shaping and sealing → tail cutting → Print → finished discharge code
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Optional accessories:
Optional: external chiller system, water cooler
Optional: Laminated barrel insulation device
Optional: barrel internal mixing device
Optional: Alien sealing device (wave-shaped sealing device; arc-shaped sealing device; T-type punching and sealing devices, etc.)
Optional: multicolor filling system
Optional: less than 3ml / branch dedicated filling device
Optional: automatic feeding pump
Optional: finished tube output conveyor
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Specification:
Item |
Heat sealing |
Voltage |
220V/380v/50Hz/60Hz |
Productivity |
80-100pcs/min |
Filling volume |
3-250 ml(customized) |
Tube diameter |
11-38mm(customized) |
Tube length |
50-200mm(customized) |
Max power |
7.5KW |
Water consumption |
3-6L/min |
Machine weight |
About 1300kg |
Dimension(L*W*H) |
2150×850×2100mm |
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Machine Pictures:

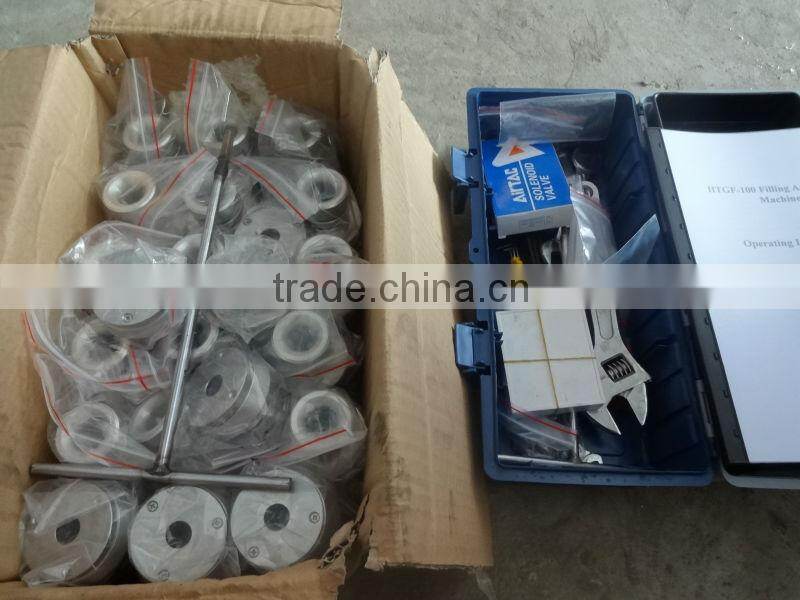

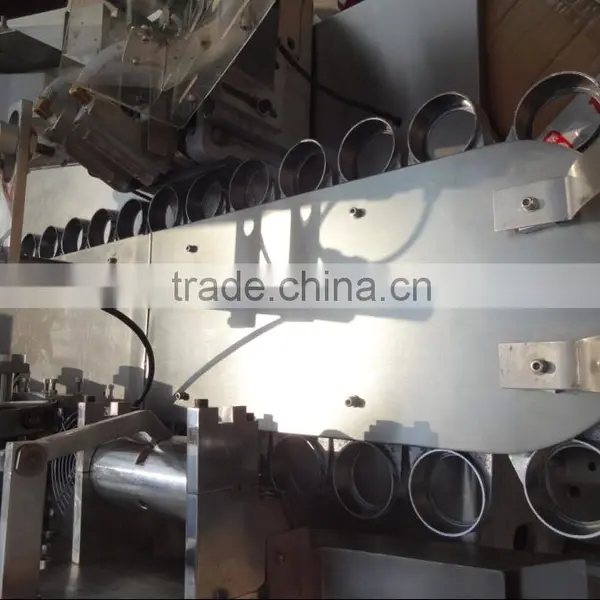

Tube holder and tools:

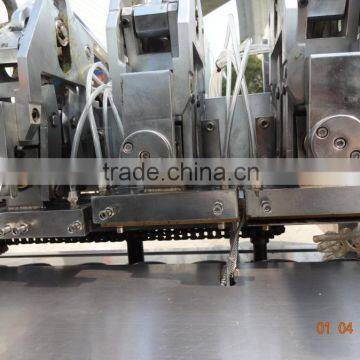

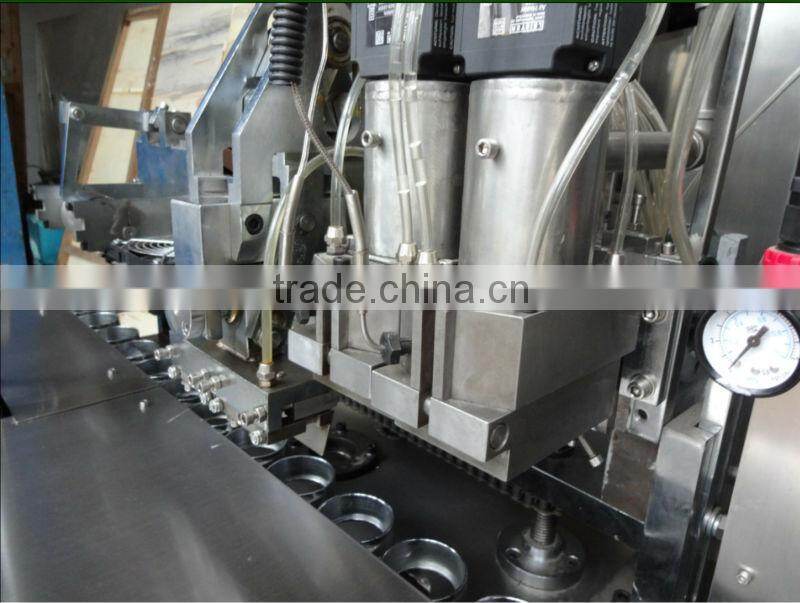

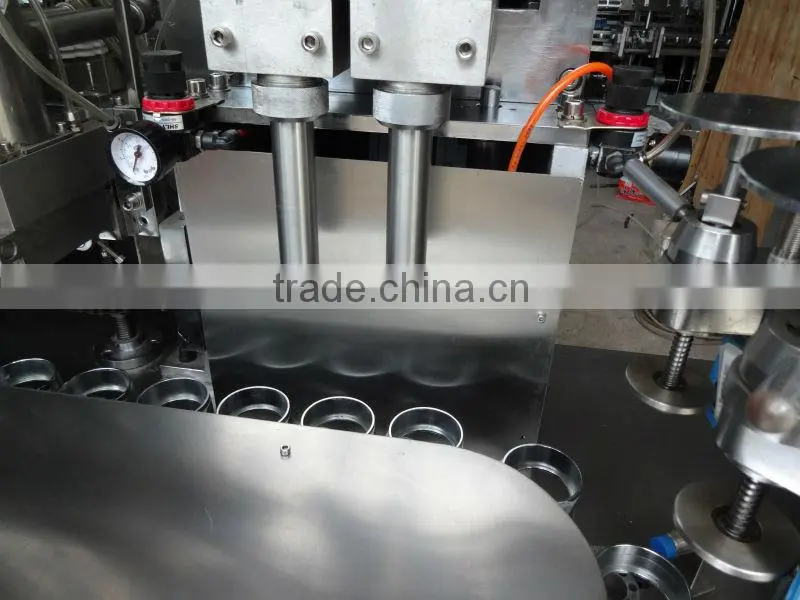

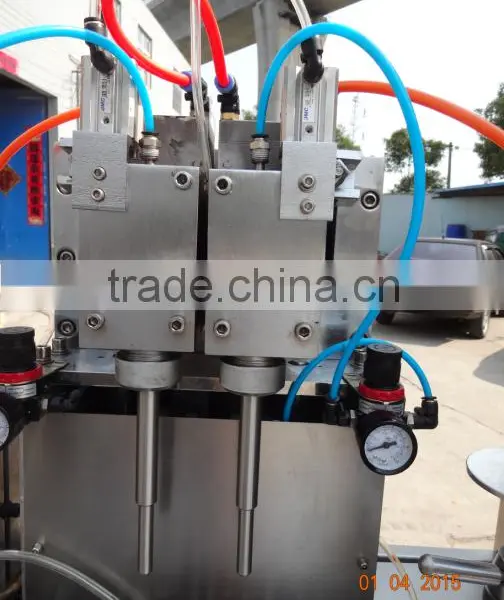

Filling Heads:

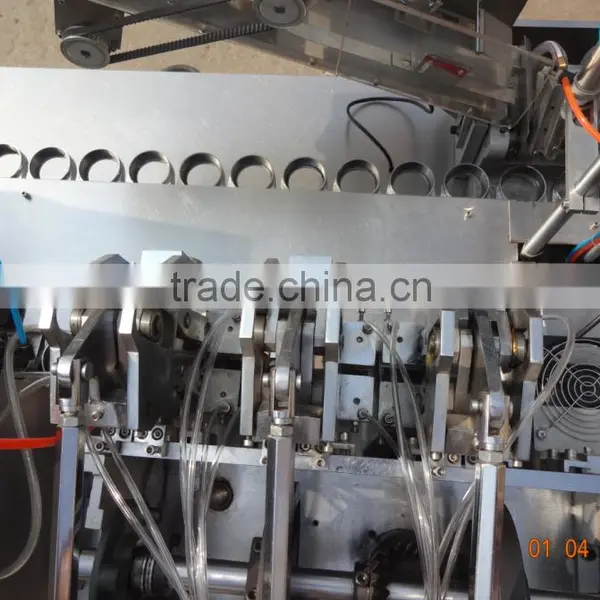

Working Plate:

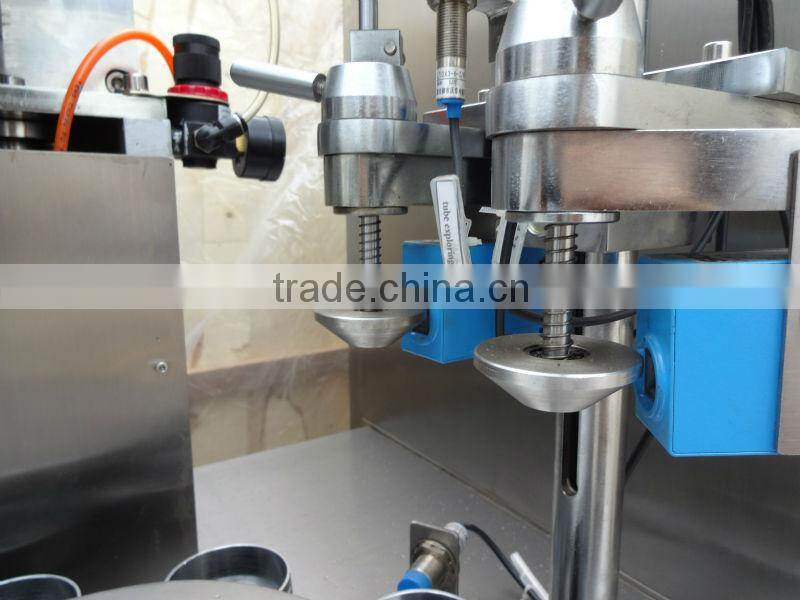

Mark Location:

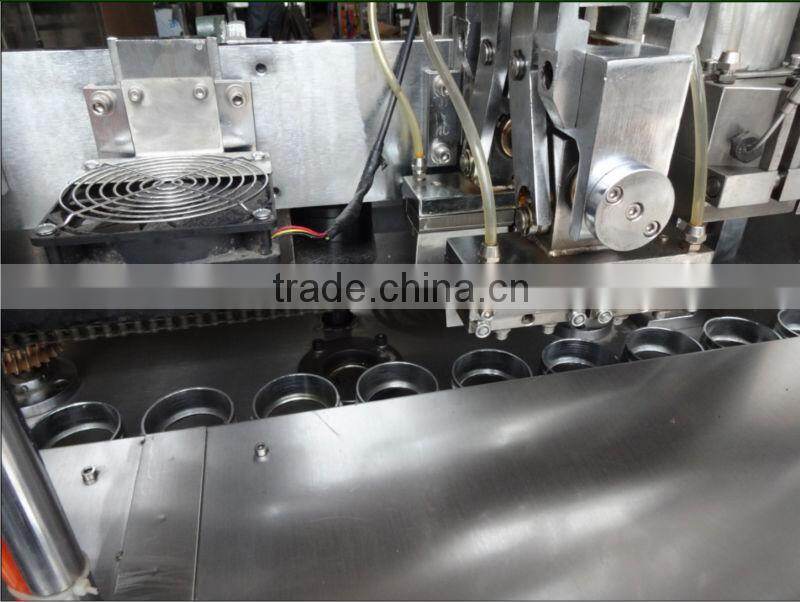

Heating Devices:

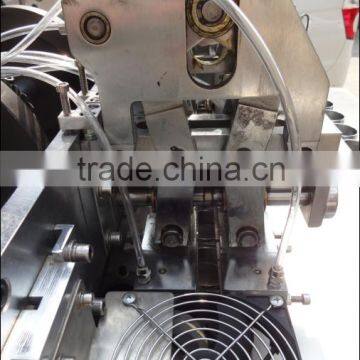

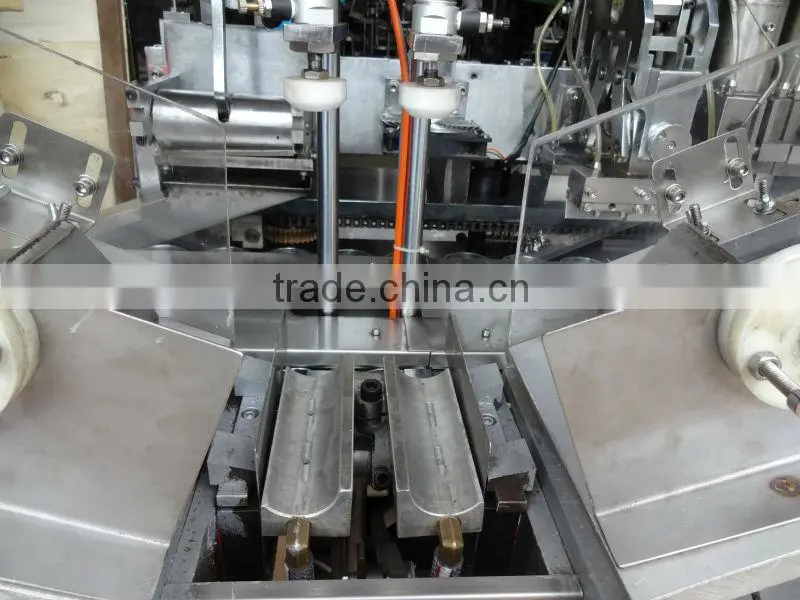

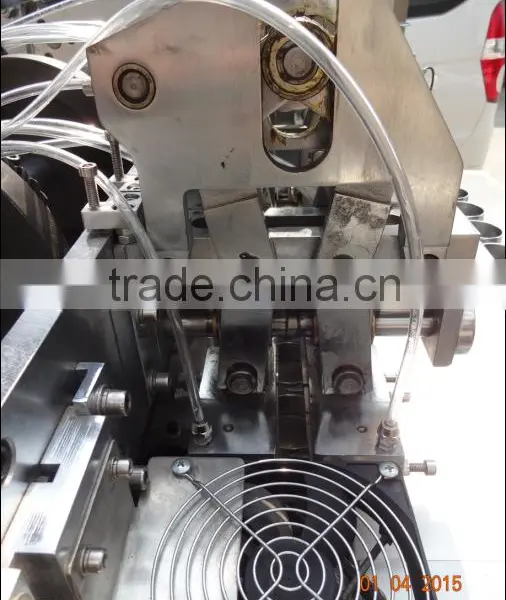

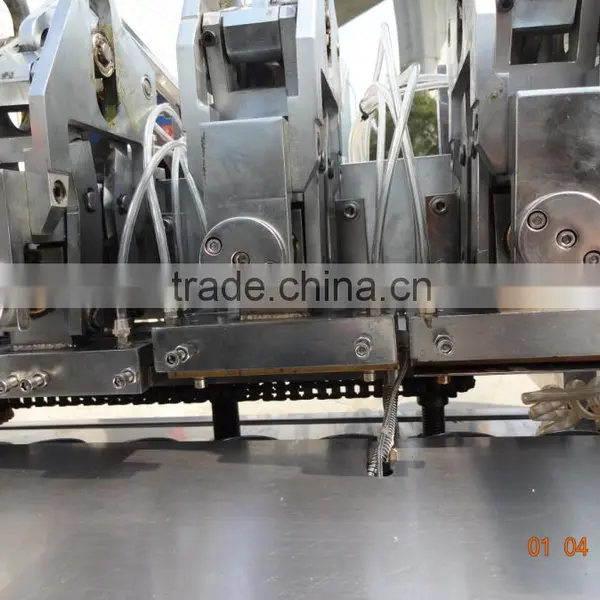

Sealing Device:

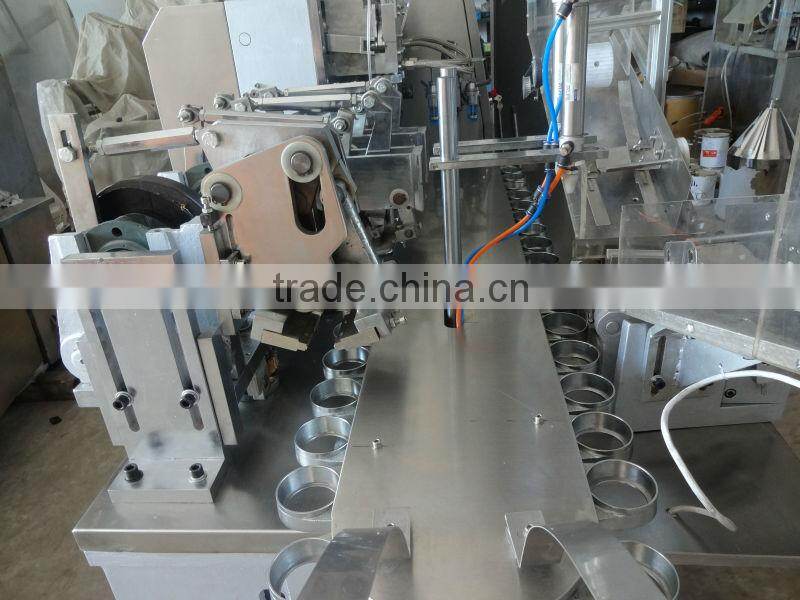

Tube Fedding:

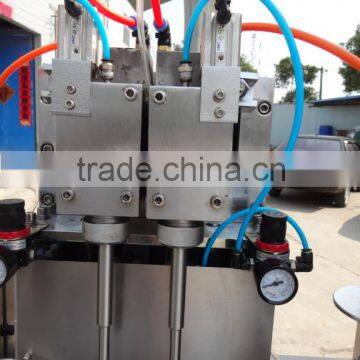

Filling pumbs:

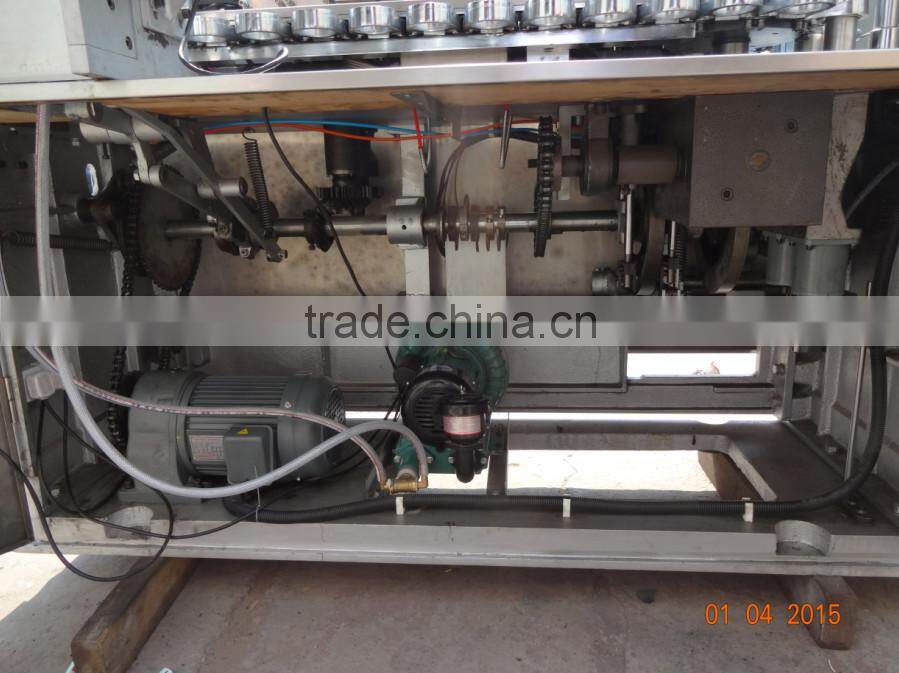

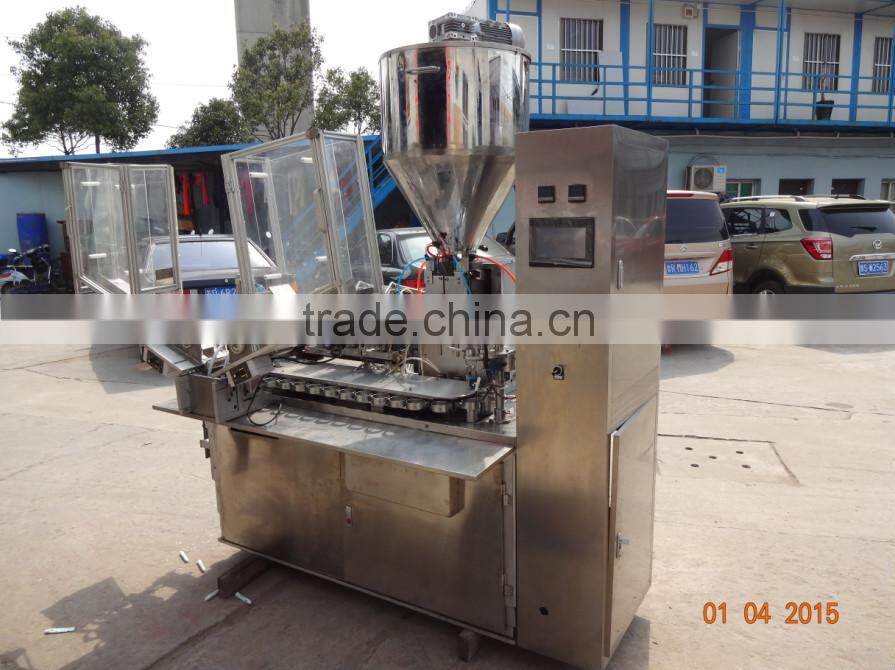

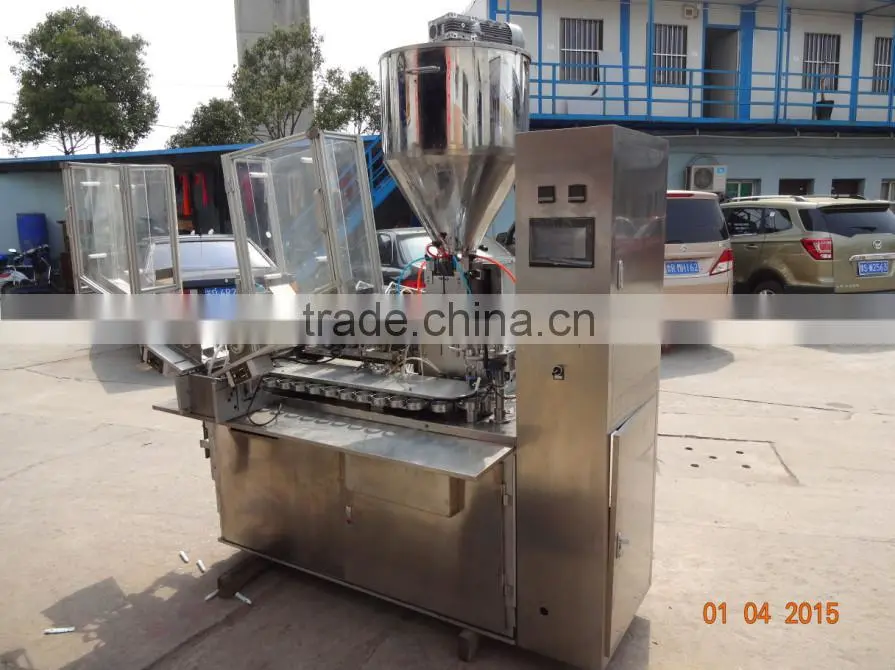

Total Machine:
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Packaging:
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Samples:
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Factory Preview:
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Cooperate Companies:
Shanghai High Speed Toothpaste Tube Filling And Sealing Machine
Certificates:
