shanghai shenhu automatic mustard sauce tube filling sealing machine Factory direct Marketing
Product name: mustard sauce tube filling sealing machine
Moulde:HTGF-100
Type:automatic
Driving type:Electric
Main function:filling and sealing for comestic,toothpaste,drug and food etc.
Briefly introduction of the equipment:
This equipment is widely used in industry of toothpaste,comestic,drugs and food etc.
It is applicable for various platic tube and plastic-laminated -tube.
It can fill-pack all kinds of cream,latex.lotion,oil and water etc.
It can automatically fill,seal ,stamp batch numbers and exit tubes(with 40 tube position)
Inner-heating and outside-heating method is adopted in the heating section,which can be blow hot-wind to the tube tail-ends inner wall.the parts touched with material adpot 304S.S,Which can proof acid,alkali and corrosion.
All the channels can be unloaded fast and agilely.
The material-valve can be rotated,it can be cleanout easily,so there's no place foe the dirty.
Fixing organization can fix position precisely and firmly.
The position-turning part can change speed by using different-frequency.customers can adjust the working speed themselves.
Several devices such as heatproof system( to keep steady heating temp of the material),mixing parts,and etc,can be chosen according to the customer's demand
Characteristics:
The parts touched with material adpot 316/304 S.S
The link parts are easy to take-down and washing
Use high quality and famous brand pneumatic elements
Technical parameter |
Type |
HTGF-100 |
Voltage |
220V/380v/50Hz/60Hz |
Productivity |
80-100pcs/min |
Filling volume |
5-250ml(change molds) |
Tube diameter |
16-35mml(change molds) |
Tube length |
50-250mm |
Max power |
7.5kw |
Water consumption |
3-6L/min |
Machine weight |
2000kg |
Dimension(L*W*H) |
2250×1000×2200mm |
Why Choose Our machine and company? |
|
1) We have our own factory and manufacture the machines ourselves. 2) Rich experience of 6 years to make cosmetics,pharmaceutical,food equipments. 3considerate Pre-consulting and after-sales service
|

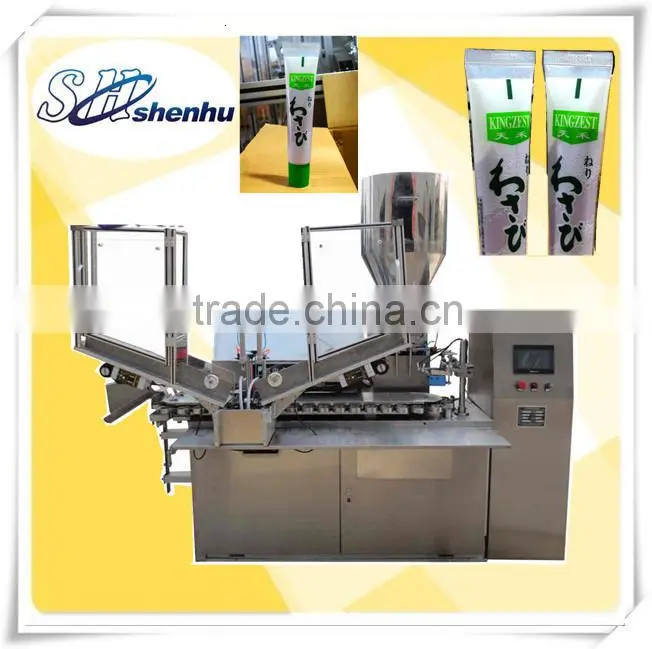

Machine pictures:

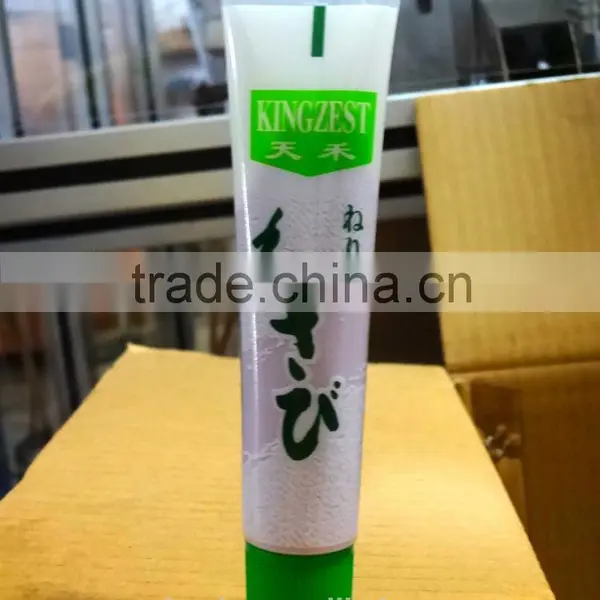

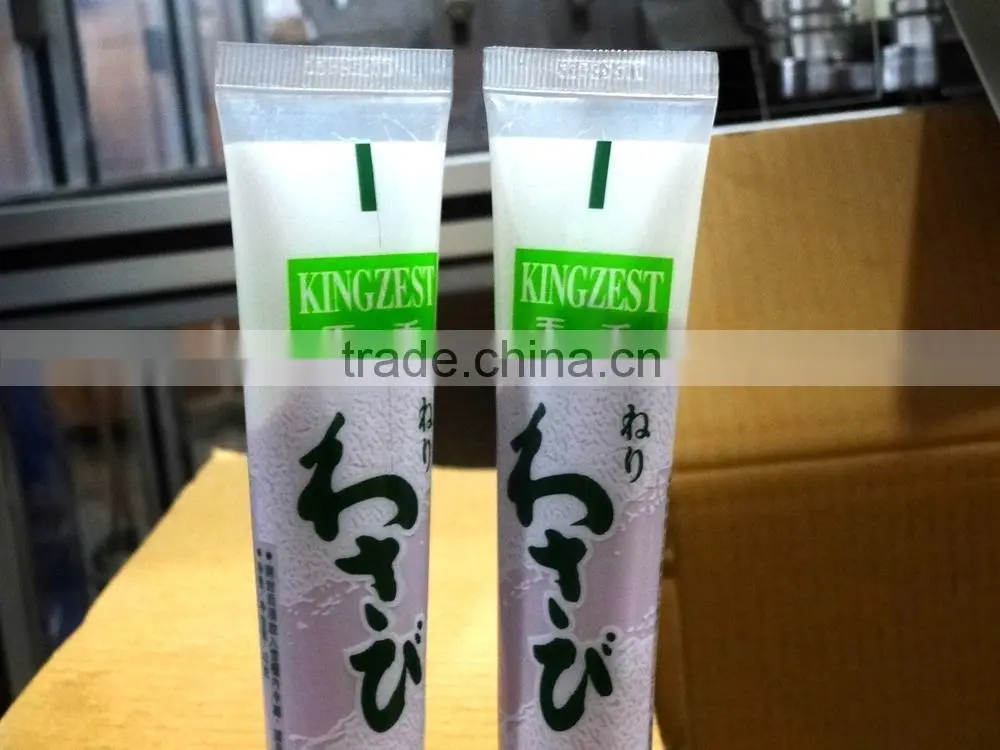

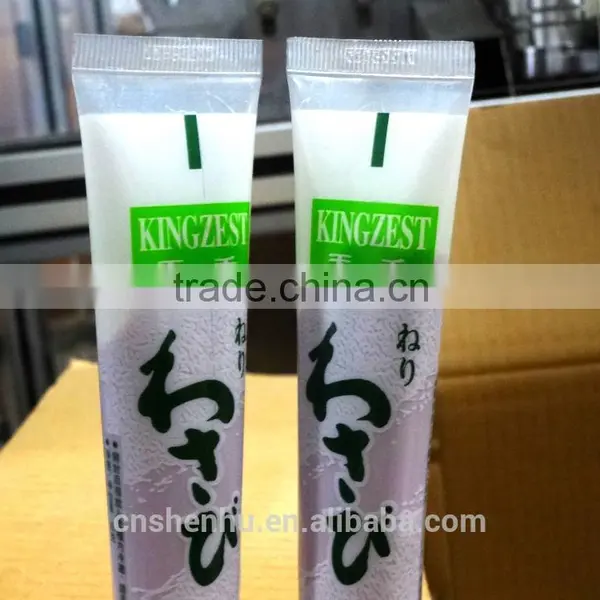

Sample pictures:
