Filling Capping and Labeling Machine for e Cigarette ,syrup

Filling Capping and Labeling Machine for e Cigarette ,syrup photo-1
Filling Capping and Labeling Machine for e Cigarette ,syrup photo-2
Filling Capping and Labeling Machine for e Cigarette ,syrup photo-3
Filling Capping and Labeling Machine for e Cigarette ,syrup photo-4
Filling Capping and Labeling Machine for e Cigarette ,syrup photo-5
Filling Capping and Labeling Machine for e Cigarette ,syrup photo-6
US$ 12,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bottles
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Mechanical
Voltage 380V
Power 2KW
Place of Origin Shanghai, China
Brand Name SHENHU
Model Number SHGX-50
Dimension(L*W*H) 1800*1000*1500MM
Weight 500KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

This Automatic Electronic Cigarette Liquid Filling and Capping Machine is mainly available to fill different liquid into various round and flat plastic or glass bottles with the range from 5 to 50ml.High precision cam provides a regular plate to position,cork and cap,accelerating cam headsgoing up and down ;constant turning arm screws caps;creepage pump measures filling volume;and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

 Name and model
HTGX-50 filling capping and labeling machine
Filling Volume
5-50ml
Productivity
30-50bottles/min
Filling Precision
≤±1%
Power Supply
AC 220V 380V/50Hz
Capping Rate
≥99%
Stoppering rate
≥99%
Air Supply
1.3 m3/h 0.4-0.8Mpa
Power
2.0 kw
Weight
500 kg
Dimension
1800*1000*1500mm

Futures

1,Man-machine dialogue system setting,visual convenient operation ,accurate filling level.
2,the mainframe running speed is stepless frequency conversion.
3,the product quantity can be controlled.
4,Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).
5,Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

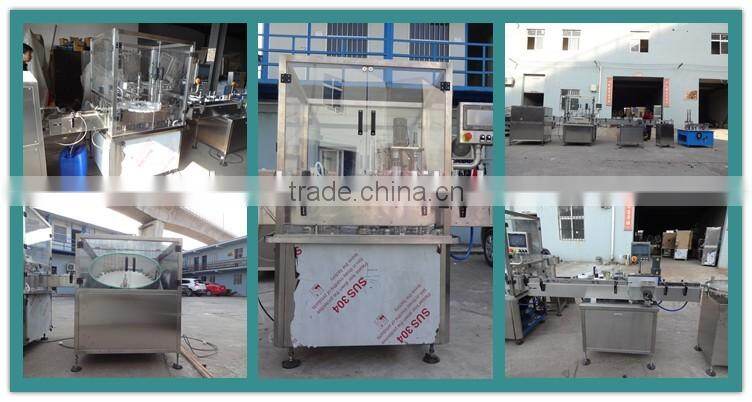

Detailed Images

Machine Parts

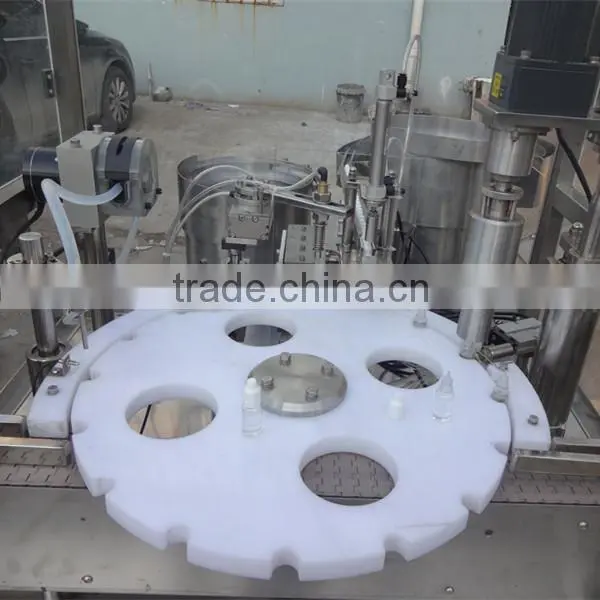

Name: star table

It used for holding bottle at accuracy position for filling and capping.Easy to change different size of bottles,made from polyethylene materials,wear-resisting.Different shape can work with round bottle,square bottle,oval bottles.

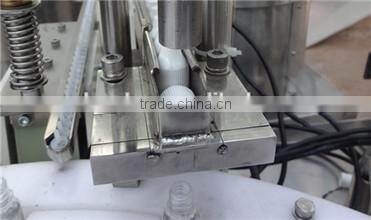

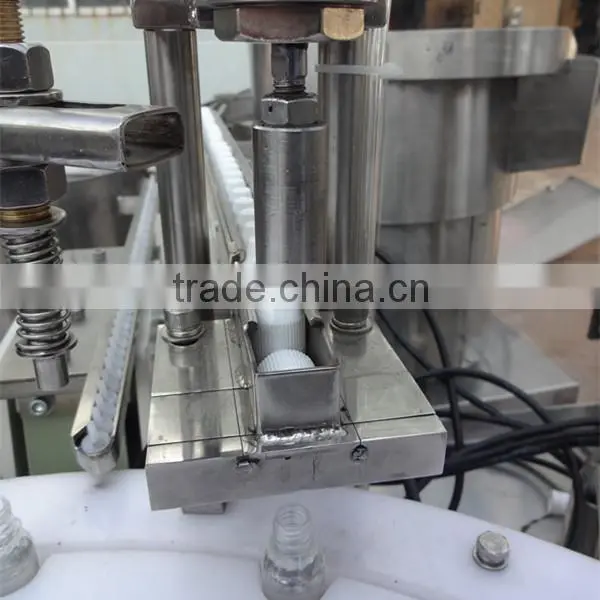

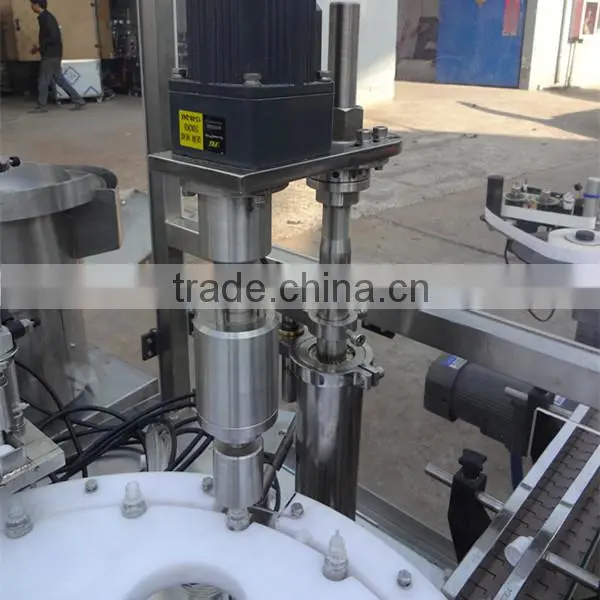

Name: Capping head and guide rail
Describe:Easy to change for different size of caps,made from stainless steel,inside is silicone ,protect caps from damage,also can change for plastic cap and aluminum cap

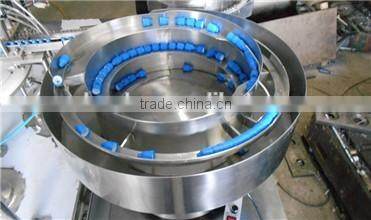

Name: vibrator
Describe:Easy to change for different size of caps,made from stainless steel,can sort rubber stoppers,aluminum caps,plastic caps and small bottles
.

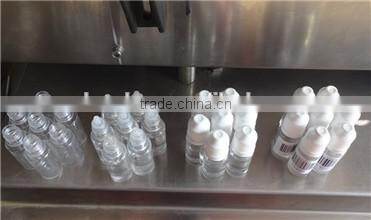

Samples

The machine is available for e liquid,eye drops,syrup,oil,penicillin and many other products.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging

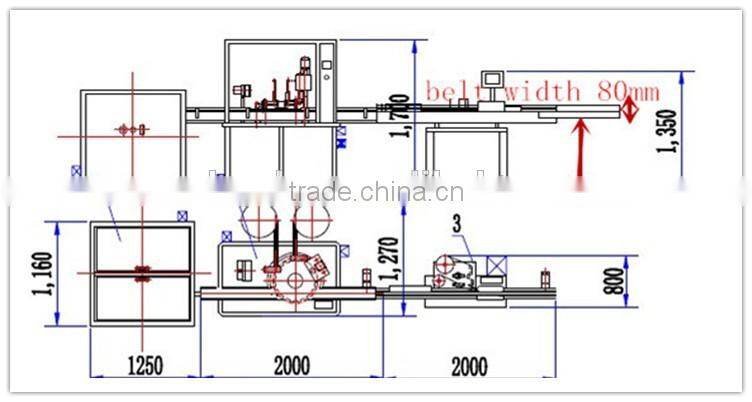

Size
sorter machine  1230*1230*1600mm 100kg
 filling capping machine
 2000*1030*2040mm 500kg
labeling machine
2100*1230*1600mm 250kg



Packaging Details
1.The normal package is Stretch film + PE plastic cover+plywood box.
2.The machine will be whole packed,no need to install any more,just need to connect with electric power,air compressor and water chiller.
3.It will come with operate manual(English language),spare parts and tools.
