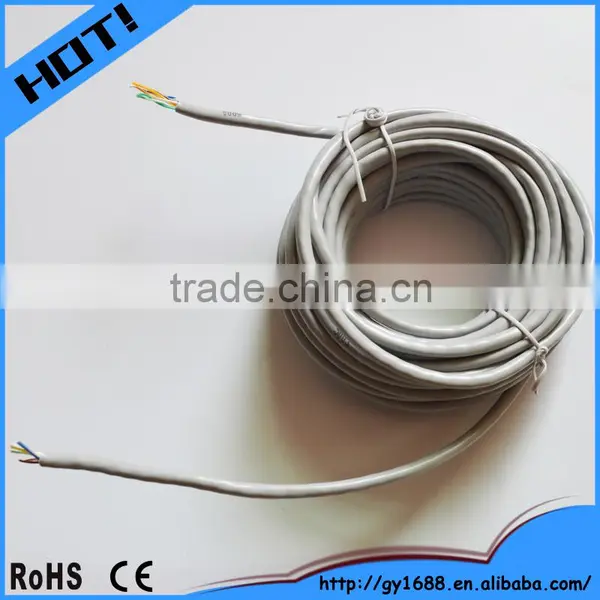

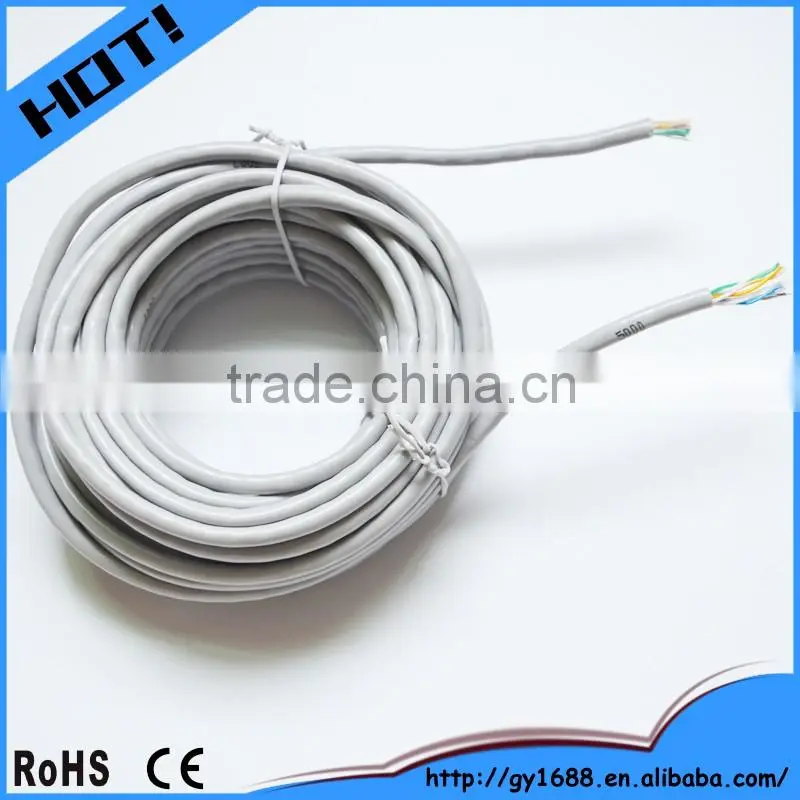

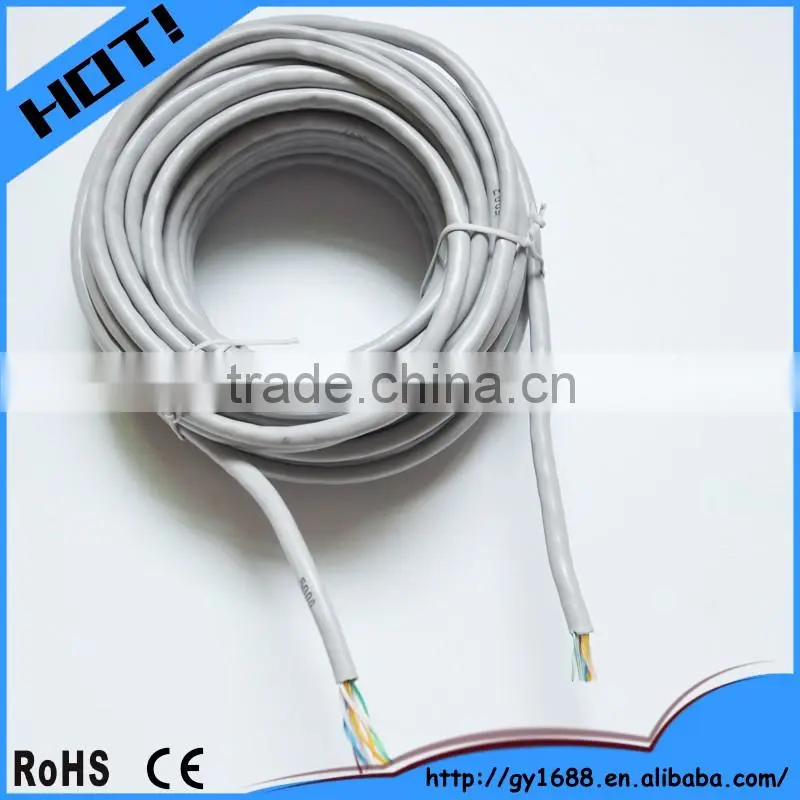

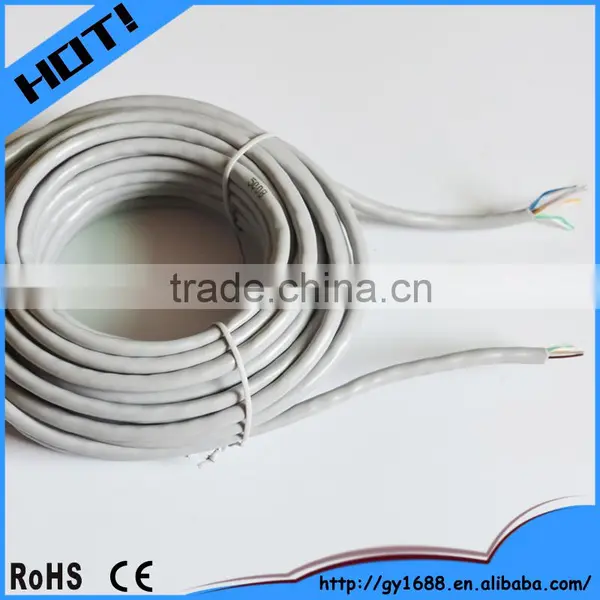

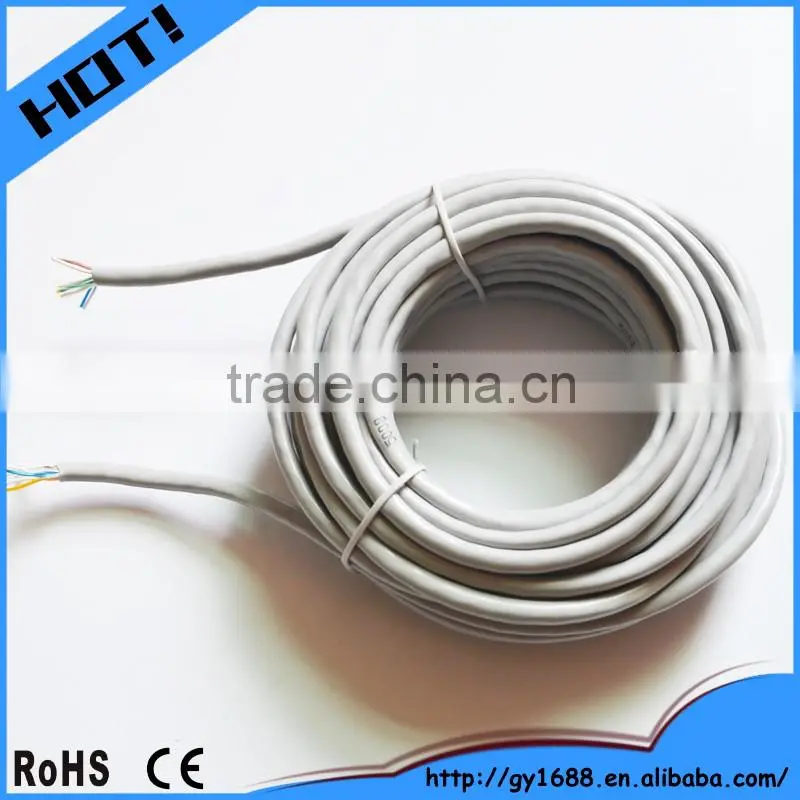

Dongguan supplier CAT6 4p LAN cable
Used for cat6 lan cable
Product structure technology property
Product name |
Dongguan supplier CAT6 4p LAN cable |
Conductor diameter |
0.58±0.02 mm |
Main color |
gray, black |
conductor elongation at break |
≥15~20% |
twist-pair pressure resistance strength |
DC test 1.5KV/60s |
cable core structure |
concentric core or SZ |
jacket material: |
Inside: PE material |
Outside: PVC material | |
jacket mix thickness |
0.6mm |
outer diameter |
7.0±0.2mm |
cable net weight |
0.032kg/m |
insulation resistance |
≥5000MΩ•km |
Details
Brand |
guangying |
Product |
CAT6 4p single shielded cable |
Category |
cat6a series |
The highest transmission frequency |
200M |
Work temperature |
-15~60℃ |
Normal life |
15 years |
Model meaning |
UTP- Unshielded Twisted Paired |
CAT6a -super six categories |
Specifications
1. Insulation material: high density PE, density 0.960g/cm³
Conform to standard of YD/T 1019-2001
2. Insulation integrality: DC sparks test 1.5-6KV,
Less than one pinhole per 12Km insulation or similar defects
3. Insulation demand: color fadeless and non-migratory
Mechanical-physical properties satisfied
Conform to standard of GB/T13849.1-93
4. Twisted-pair color and compose sequence:
1-white blue; 2-white orange; 3-white green; 4-white brown
5. Tear cable: non-hygroscopic, no oil absorption
Through the whole cable continuously
Open the cable with the pull strength adequately
6. Cable comprehensive jacket mechanical-physical properties:
Conform to standard of YD/T 1019-2001
7. Finished product cable electric properties:
Conform to standard of YD/T 1019-2001
Application
- broadband internet communication,
- intelligent building and residential district comprehensive wiring system,
- local area network system,
- communication network system,
- test equipment and cable television systematic-theft monitoring system, etc
- Applicable occasion: indoor
DongGuan GuangYing Electron Co., Ltd. is a professional manufacturer that integrates research, production and sale. To maintain product quality and consistency, we invest heavily in the most advanced manufacturing and testing equipment. We have modern factories, high-end cable production device and perfect check equipment. We also have experienced employees and management team who have engaged in this field for more than 20 years.
We are specialized in monitor video cable, vehicle-mounted connection cable, USB cable, computer VGA cable, network project cable, high-temperature Teflon cable and so on.
Our aim is to provide the best quality cable produces and create more value for customers from all over the world.
More CCTV Cable
Q1.Do you accept customization?
Yes,we respect every client requirements, and we have ability to achieve clients’ requirements.
Q2.How about your MOQ?
Our MOQ is not fixed,we will accept smell order within our power.
Q3.Could i have a visit to your factory?
Welcomed. If you go to our factory, you will get the most warm reception. Outside of business, we can be friends.
Q4.Do you provide sample?
Yes, we will provide sample for customers reference. If you have made a order, we will provide free sample to you.
Q5.How long will you prepare the goods?
According clients’ order quantity,the time of stock up will have some change. Usually we can prepare the goods within 10 days.
»» »» »»
Any more questions?
OK, please contact us!
|
|
