Help CenterLight Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity (Load):
1 - 10t
Drive Wheel:
4x2
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Capacity (Load)
1 - 10t
Drive Wheel
4x2
Horsepower
Other, < 150hp
Transmission Type
Manual
Emission Standard
Euro 2
Fuel Type
Diesel
Place of Origin
Shandong, China

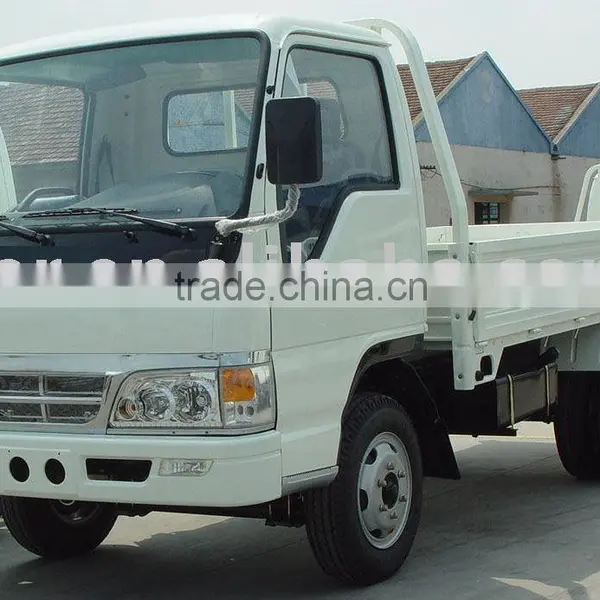

Light truck
| MODEL HT1021 | ||||
| Seating capacity | 3 | DIMENSION AND WEIGHT | ||
| Method of driving | 4x2 | Wheel Base: | 2600 mm | |
| Steering position | RIGHT | Ground Clearance: | 180mm | |
| ENGINE | Turning Radius | 12000mm | ||
| Model | 480 | Front Trend: | 1360 mm | |
| Type | Direct injection | Rear Trend: | 1320 mm | |
| water Cooled | Overall Length: | 4870 mm | ||
| diesel engine | Overall Width: | 1770 mm | ||
| Cylinder | 4 Cylinder in line | Overall Heights: | 2130 mm | |
| 4 stroke | Cargo Body Length: | 3200 mm | ||
| Bore & Stroke (mm ) | 80 & 90 | Cargo Body Width: | 1640 mm | |
| Displacement | 1809 | Cargo Body Height: | 400 mm | |
| Power (kw) | 30kw/3200RPM | PERFORMANCE | ||
| Compression ratio | 18 | Curb Weight: | 1450 Kg | |
| Torque (Nm) | 100.3Nm/3200RPM | Load Weight: | 2000 Kg | |
| Cooling system | Heavy-duty radiator | Max. Speed: | 85 Km/Hr | |
| with cooling fan & | Gradeability: | 30% | ||
| watar pump. | FUEL TANK | |||
| TRANSMISSION | Capacity: | 40 Liter | ||
| Model | 520 | Fuel Consumption: | 9 Litre/100 Km | |
| Type | 5Forward+1reverse | Paint | Superior quality spray paint | |
| with synchronizers | with protective primer. | |||
| gearbox&manaul shift | ELECTRIC SYSTEM | |||
| STEERING | Battery | 12 Volt | ||
| Type | with | Alternator | 12 Volt, 1000 w | |
| steering lock | Starter | 12 Volt, 5 kw | ||
| Driving method | RHD or LHD | TYRES | ||
| Suspension | Semi elliptical alloy steel leaf | Quantity | 2 Front + 4 Rear | |
| leaf spring | ||||
| Shock absorber | Double action | Size | 6.00R15-8PR | |
| Hydraulic type | (ON / OFF Highway Capability) | |||
| CHASSIS | Accessories | (a)Ammeter | ||
| Type | Rigid frame-wide flanged | (b)Head Light, Back Light, | ||
| welded I-section for resisting | Packing Light, Fog Light | |||
| twist the chassis is longitudinal | Reverse Light, | |||
| and cross members | Drivers Cabin Light | |||
| CLUTCH | (c)Water temperature Indicator | |||
| Type | Single dry plate Hydraulically | (d) Engine oil pressure gauge | ||
| Operated & | (e) Hydraulic Jack & Wheel Wrench | |||
| Pneumatically Assisted. | (f) Fuel level meter | |||
| BRACK SYSTEM | (g) Ammeter | |||
| Type | Hydraulic dual circuit drum | (h) Radiator Protection Grill | ||
| brack | (i) Reversing alarm | |||
| Service Brake | Vacuum boosted hydraulically | (j) Rear view mirrors | ||
| controlled | (k) Tools set | |||
| Parking Brake | Mechanical (In rear wheel | (l)Standard Accessories & | ||
| drum its, lever controlled) .. | Safety Devices for beam lifter. | |||
