Mini Truck

Negotiable MOQ: 6 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Capacity (Load):

Other, 0.5t

Drive Wheel:

4x2

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) Other, 0.5t

Drive Wheel 4x2

Horsepower Other, < 150hp

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Petrol / Gasoline

Size 3990.*1465*1890

Place of Origin China

Model Number CA1013

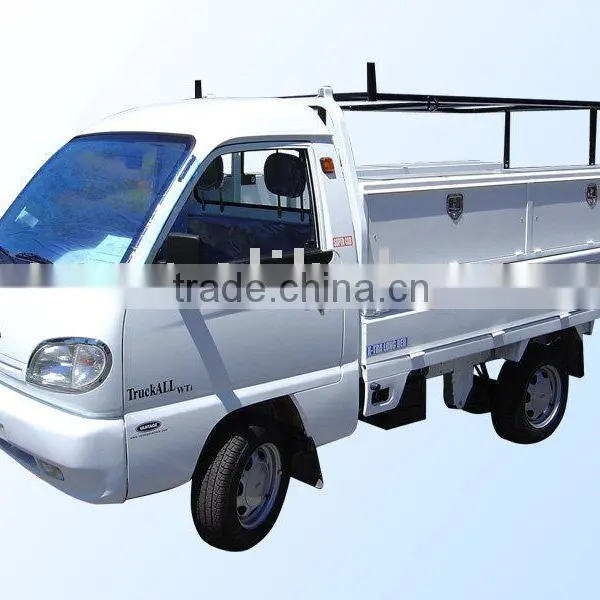

Mini truck

Model	Registered model	CA1013A1
Model	Manufacturing code	CA1013A1
DIMENSIONS	Exterior dimensions mm	3990X1465X1890
	Truck bed dimensions mm	2485X1378X325
	Wheel base mm	2040
	Treads(F/R) mm	1215/1210
	Ground clearance mm	156
	Angles(Approach/Departure)	26°/20°
	Max. gradability %	29
	(mm) Overhanger(F/R) mm	844/1106
	Seating capacity persons	2
WEIGHT	Curb vehicle weight kg	800
	Gross vehicle weight kg	1420
	payload kg	490
	Weight distribution(loaded) F/R Kg
	Weight distribution (unloaded) F/R Kg
ENGINE	Model	LJ465QE1
	Cylinders	L4,OHC EFI
	Bore×Stroke mm×mm	65.5×72
	DisplacementCapacity ml	970
	Compression ratio	8.8
	Max.power Kw/rpm	35.5/5200
	Max.torque N.m	74/3000-3500
TRANSIMISSION	Transmission type	5MT
	gear ratio 1st	3.505
	gear ratio 2st	2.043
	gear ratio 3st	1.383
	gear ratio 4st	1
	gear ratio 5st	0.806
	Reverse	3.505
CHASSIS	Final gear ratio	4.44(40/9)
	Clutch
	Truning diameter m	9.5
	Steering	Rack & pinion
	Braking system	Disc(F),Drum(R)
	Drive train	4x2MR
	Suspension system-Front	Coil spring
	Suspension system-Rear	leaf spring
	Tires size	165/70 R13
CAPACITY	Fuel consumption at100km/h ≤L	6.0(50Km/h)
	Max. Speed km/h	100
	Emission Standard	Eu III with OBD
