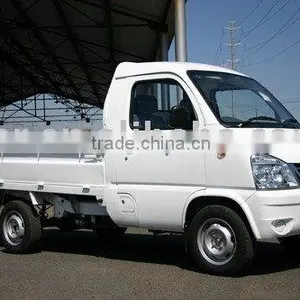

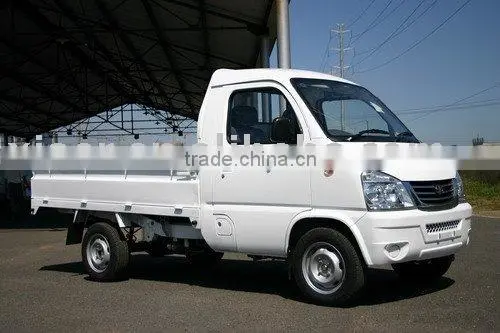

Mini Truck

Negotiable MOQ: 6 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Capacity (Load):

Other, 0.8t

Drive Wheel:

4x2

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) Other, 0.8t

Drive Wheel 4x2

Horsepower Other, < 150hp

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Petrol / Gasoline

Size 4260.*1475*1890

Place of Origin Shandong, China

Model Number CA1023

Mini truck

Model	Registered model	CA1023V	CA1023V
	Manufacturing code	CA1023V-KDAM	CA1023V-KDB
		Eu	Eu
DIMENSIONS	Exterior dimensions mm	4260X1475X1890	4260X1475X1890
	Truck bed dimensions mm	2460x1378x355	2460x1378x355
	Wheel base mm	2550	2550
	Treads(F/R) mm	1280/1290	1280/1290
	Ground clearance mm	156	156
	Angles(Approach/Departure)	27/29	27/29
	Max. gradability %	≥27	≥27
	(mm) Overhanger(F/R) mm	570/1140	570/1140
	Seating capacity persons	2	2
WEIGHT	Curb vehicle weight kg	865	865
	Gross vehicle weight kg	1795	1795
	payload kg	800	800
	Weight distribution(unloaded) F/R Kg	510/355(F/R)	510/355(F/R)
	Weight distribution (loaded) F/R Kg	825/970(F/R)	825/970(F/R)
ENGINE	Model	DA465Q	DA465Q-1A/D
	Cylinders	L4,OHC EFI	L4,OHC EFI
	Bore×Stroke mm×mm	65.5×72	65.5×78
	DisplacementCapacity ml	970	1051
	Compression ratio	8.8	9
	Max.power Kw/rpm	35.5/5200	38.55200
	Max.torque N.m	74/3000-3500	833000-3500
TRANSIMISSION	Transmission type	5MT	5MT
	gear ratio 1st	3.505	3.652
	gear ratio 2st	2.043	1.948
	gear ratio 3st	1.383	1.424
	gear ratio 4st	1	1.000
	gear ratio 5st	0.806	0.795
	Reverse	3.505	3.466
CHASSIS	Final gear ratio	4.778	4.778
	Clutch	Diaphragm spring	Diaphragm spring
	Truning diameter m	≤10	≤10
	Steering	Rack & pinion	Rack & pinion
	Braking system	Disc(F),Drum(R)	Disc(F),Drum(R)
	Drive train	4x2MR	4x2MR
	Suspension system-Front	Coil spring	Coil spring
	Suspension system-Rear	leaf spring	leaf spring
	Tires size	165/70 R13LT6PR	165/70 R13LT6PR
CAPACITY	consumption at100km/h ≤L	6.5	6.5
CAPACITY	Max. Speed km/h	≥100	≥105
