Product Details
| Brand Name | CYKY | Model Number | CY-V1700 | |
| Place of Origin | Henan, China |
Product Description
China vacuum furnace ,vacuum nitriding furnace,vacuum reducing furnace,vacuum aluminium brazing furnace
Description of the vacuum heat treatment furnace:
1700C vacuum furnace is mainly used in sinter cemented carbides, stainless steel line molding, stainless steel fiber, magnetic materials,and ceramic materials,and it also can be used in power metallurgy, refractory metals and magnetic material industry.We can sinter super hard, alloy,tungsten, copper, tantalum,stainless steel and rare-earth permanent magnetic material. Since the heater symmetrical distribute along the vacuum chamber, and temperature uniformity is high,you can actualize semi-automatic and automatic control according to your demands.
Outstanding features of the vacuum furnace
1.Maximum energy efficiency is achieved by surrounding chamber thermal-efficient alumina fiber ceramic insulation.
2.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
3.PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
4.Power control with 30 segments programmable.
Technical parameters of the vacuum heat treatment furnace/ vacuum furnace
| Model | CY-V1700 |
| Max. temperature | 1700℃ |
| Working temperature | 1600℃ |
| Temperature accuracy | +/-1℃ |
| Heating rate | 0-20C/min |
| Dimension | 200×200×300mm |
| Temperature control | Digital 50 segments programmable |
| Max. vacuum level | 7*10ˆ(-3)Pa |
| Heating element | MoSi2 rods |
| Refractory material | Alumina ceramic fiber |
| Thermal couple | B type |
| Rated power | 5KW |
| Working voltage | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
Special details can be according to your detailed requirement!!!!!!

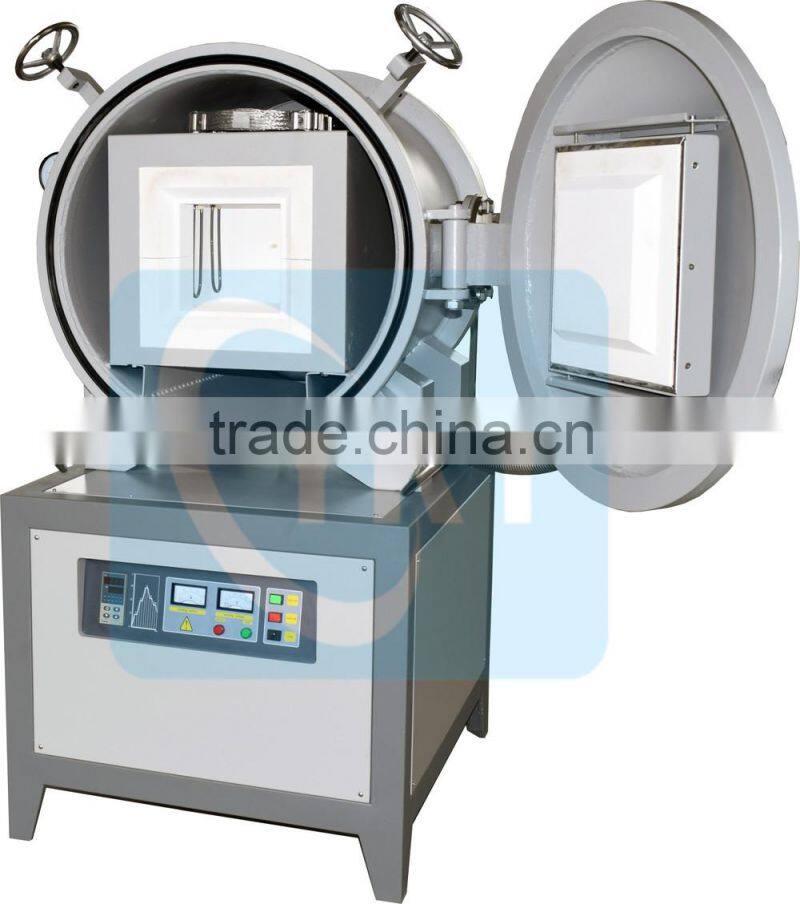

Detailed photos of the vacuum furnace:
Touch screen temperature controller vacuum furnace
