1600C Fast Cooling High Temperature Vacuum Tempering Furnace

1600C Fast Cooling High Temperature Vacuum Tempering Furnace thumbnail-1
1600C Fast Cooling High Temperature Vacuum Tempering Furnace thumbnail-2
1600C Fast Cooling High Temperature Vacuum Tempering Furnace photo-1
1600C Fast Cooling High Temperature Vacuum Tempering Furnace photo-2
US$ 1,800 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, vacuum heat treatment furnace
Usage:
Heat Treatment Furnace
Contact Supplier Request Quote Chat Now
Zhengzhou CY Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
according to your requirement
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, vacuum heat treatment furnace
Usage Heat Treatment Furnace
Place of Origin Henan, China
Brand Name CYKY
Model Number CYKY-1600V
Voltage 380V
Power(W) 10kw
Weight 500 kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

1600C fast cooling high temperature vacuum tempering furnace



Product Description

 Mainly used in pharmaceutical, chemical, food, electronics and other industrial sectors pressing granular raw materials into tablets or granules , the vacuum furnace also can be used for metal heat treatment, and the powder sintering, etc.



Specification of the high temperature vacuum furnace
Furnace construction
  • designed with  high purity ceramic fibre insulation;
  • double shell with low temperature of the furnace surface ( less than 40C)
  • Watering cooling and air cooling method can be designed as your requirement
  •  Perfect sealing furnace door and easy open
Chamber Size

standard chamber size:

100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm

other chamber size is customized.
Power 2KW~30KW
Voltage AC 204 to 380V 3 phases(please tell us when your place order.)
Max. Temperature 1600 °C (< 2 hours)
Continuous work temp. 1500°C
Max. Heating Rate 15 °C /min
Temperature controller

• PID automatic control and auto-tune function.

• 50 programmable segments for precise control.

• Built in protection for over-heated and broken Thermal couple.

• digital operation panel, also touch screen controller can be desigend.
vacuum system

Double rotary pump + Diffusion pump + vacuum gauge + high vacuum valves + stainless steel bellows

(digital vacuum gauge is optional)
Max. vacuum 7x10-3 Pa (with molecular pump system)
Temperature Accuracy +/- 1 °C
Heating Element MoSi2 heating element
Heating Element B type
Outer Dimension Dia300~dia1000mm
Gross weight with package 120Kgs~500kg
Accessories (free charge)
 1 pair of glove  1 crucible tong  2pcs spare MoSi2 heating element
Software to control furnace through computer (if you need, additional order)
• Communication module installed in temperature controller
• software –TCS(Temperature Control System, available for Win2003, Win XP)
• One USB cable, one RS485 Serial interface.
Warranty One year limited warranty
Certificate
 CE certified

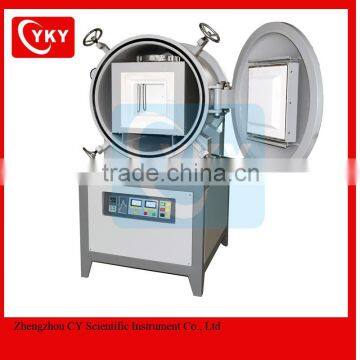

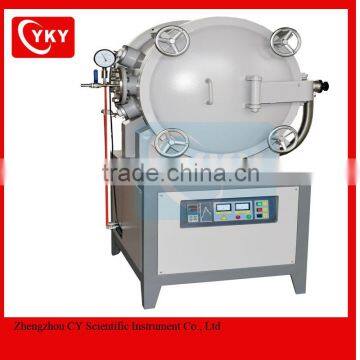

picture of the high temperature vacuum furnace / vacuum heat treatment furnace

1600C fast cooling high temperature vacuum tempering furnace1600C fast cooling high temperature vacuum tempering furnace1600C fast cooling high temperature vacuum tempering furnace

Packaging & Shipping

 1600C fast cooling high temperature vacuum tempering furnace
