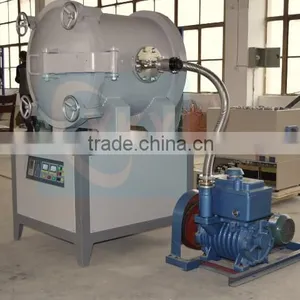

Vacuum Heat Treatment Furnace Used for Sintering, Quenching , Sintering/ Vacuum Furnace

Vacuum Heat Treatment Furnace Used for Sintering, Quenching , Sintering/ Vacuum Furnace thumbnail-1
Vacuum Heat Treatment Furnace Used for Sintering, Quenching , Sintering/ Vacuum Furnace photo-1
US$ 1,800 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, vacuum heat treatment furnace
Usage:
Heat Treatment Furnace
Contact Supplier Request Quote Chat Now
Zhengzhou CY Scientific Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
according to your requirement
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, vacuum heat treatment furnace
Usage Heat Treatment Furnace
Place of Origin Henan, China
Brand Name CYKY
Model Number CYKY-1600V
Voltage 380V
Power(W) 10kw
Weight 500 kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

    Vacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnace



Product Description

  CYKY  series Vacuum sintering furnace is mainly used for sintering and annealing of powder metallurgy and ceramics. Also this chamber vacuum sintering furnace is used for high-temperature sintering of cemented carbide direct quenching aftering sintering , and annealing of metal parts and high-quality brazing.



Specification of the high temperature vacuum heat treatment furnace
Furnace construction
  • designed with  high purity ceramic fibre insulation;
  • double shell with low temperature of the furnace surface ( less than 40C)
  • Watering cooling and air cooling method can be designed as your requirement
  •  Perfect sealing furnace door and easy open
Chamber Size

standard chamber size:

100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm

other chamber size is customized.
Power 2KW~30KW
Voltage AC 204 to 380V 3 phases(please tell us when your place order.)
Max. Temperature 1600 °C (< 2 hours)
Continuous work temp. 1500°C
Max. Heating Rate 15 °C /min
Temperature controller

• PID automatic control and auto-tune function.

• 50 programmable segments for precise control.

• Built in protection for over-heated and broken Thermal couple.

• digital operation panel, also touch screen controller can be desigend.
Max. vacuum degree 7x10-3 Pa (with molecular pump system)
Temperature Accuracy +/- 1 °C
Heating Element MoSi2 heating element
Heating Element B type
Gross weight with package 120Kgs~500kg
Accessories (free charge)
 1 pair of glove  1 crucible tong  2pcs spare MoSi2 heating element
Software to control furnace through computer (if you need, additional order)
• Communication module installed in temperature controller
• software –TCS(Temperature Control System, available for Win2003, Win XP)
• One USB cable, one RS485 Serial interface.
Warranty One year limited warranty
Certificate
 CE certified

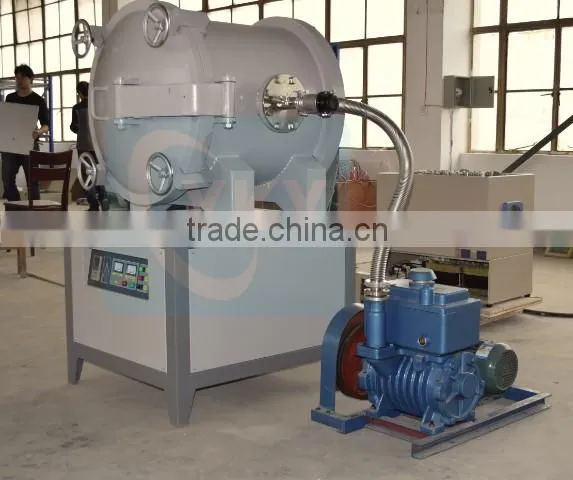

picture of the high temperature vacuum furnace / vacuum heat treatment furnace

Vacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnaceVacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnaceVacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnace



water chiller used for water cooling

Vacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnace

Packaging & Shipping

 Vacuum heat treatment furnace used for sintering, quenching , sintering/ vacuum furnace
