TIWIN DL5C 5000K 10W 900LM 5 Inch Special Design LED Downlight
US$ 10.69 - 17.51
/ Piece
20 Pieces(Min. Order)
- Shanghai
- Credit Card
You May Like
-
TIWIN DL5C 3000K 12W 1050LM 5 Inch Pecial Design LED Downlight
-
TIWIN DL5C 4000K 12W 1050LM 5 Inch Pecial Design LED Downlight
-
TIWIN DL5C 5000K 12W 1050LM 5 Inch Pecial Design LED Downlight
-
TIWIN DL6C 3000K 15W 1300LM 6 Inch Special Design LED Downlight
-
TIWIN DL6C 4000K 15W 1300LM 6 Inch Special Design LED Downlight
-
TIWIN DL6C 5000K 15W 1300LM 6 Inch Special Design LED Downlight
Product Details
| LED Light Source | 3030 | Warranty(Years) | 2 years | |
| Input Voltage(V) | 220-240 | Lamp Power(W) | 10 | |
| Lamp Luminous Flux(lm) | 900LM | Lamp Luminous Efficiency(lm/w) | 88 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -25, 35 | |
| Working Lifetime(Hour) | 25000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CCC | |
| Model Number | DL5C1011A8U-Y550WH5N101 | Place of Origin | Jiangsu, China | |
| Brand Name | TIWIN |
Product Description
Product Description
| 4'',Φ125*70mm, AC220V~240V,Ra≥80,IP20, ≥25000H | |||
| DL4C-8W-WW | DL4C1008A8U-Y530WH5N101 | 8 W, 8pcs 3030, 3000K, 80°,650lm, 2 years warranty | |
| DL4C-8W-NW | DL4C1008A8U-Y540WH5N101 | 8 W, 8pcs 3030, 4000K, 80°,650lm, 2 years warranty | |
| DL4C-8W-CW | DL4C1008A8U-Y540WH5N101 | 8 W, 8pcs 3030, 5000K, 80°,650lm, 2 years warranty | |
| 5'', Φ150*89mm, AC220V~240V, Ra≥80,IP20, ≥25000H | |||
| DL5C-10W-WW | DL5C1011A8U-Y530WH5N101 | 10W, 11pcs 3030, 3000K, 80°, 900lm, 2 years warranty | |
| DL5C-10W-NW | DL5C1011A8U-Y540WH5N101 | 10W, 11pcs 3030, 4000K, 80°, 900lm, 2 years warranty | |
| DL5C-10W-CW | DL5C1011A8U-Y540WH5N101 | 10W, 11pcs 3030, 5000K, 80°, 900lm, 2 years warranty | |
| DL5C-12W-WW | DL5C1013A8U-Y530WH5N101 | 12W, 13pcs 3030, 3000K, 80°, 1050lm, 2 years warranty | |
| DL5C-12W-NW | DL5C1013A8U-Y540WH5N101 | 12W, 13pcs 3030, 4000K, 80°, 1050lm, 2 years warranty | |
| DL5C-12W-CW | DL5C1013A8U-Y540WH5N101 | 12W, 13pcs 3030, 5000K, 80°, 1050lm, 2 years warranty | |
| 6'',Φ175*101mm, AC220V~240V,Ra≥80,IP20, ≥25000H | |||
| DL6C-15W-WW | DL6C1016A8U-Y530WH5N101 | 15W, 16pcs 3030, 3000K, 90°, 1300lm, 2 years warranty | |
| DL6C-15W-NW | DL6C1016A8U-Y540WH5N101 | 15W, 16pcs 3030, 4000K, 90°, 1300lm, 2 years warranty | |
| DL6C-15W-CW | DL6C1016A8U-Y540WH5N101 | 15W, 16pcs 3030, 5000K, 90°, 1300lm, 2 years warranty | |
TIWIN DL5C 5000K 10W 900LM 5 inch special design LED downlight:
Anti-glare, high light efficiency, high CRI. simple design, combined with modern architecture perfectly.Deep cover non-glare design,Crocodile buckle design, easy to install. combined with modern architecture perfectly.
High-pressure die casting aluminum alloy, 3D heatreleasing construction.
Compliance with international safety and reliability standards.
Multiple electrical protection, with industrial grade high temperature electrolyte capacitor, Long life durability.
Specification:
| | JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD. | ||||||
| Document ID | Product Specification | Version | 1.01 | ||||
| Compile Date | Page | 2014/1/1 | |||||
| Photo | | Item | Specifications | ||||
| Name | DLC Downlight | ||||||
| Product specification | AC220V~240V 50Hz/60Hz 8W/10W/12W/15W | ||||||
| Size | 4''/5''/5''/6 Φ125*70mm/Φ150*89mm/Φ150*89mm/Φ175*101mm | ||||||
| Installation method | Embedded mounted | ||||||

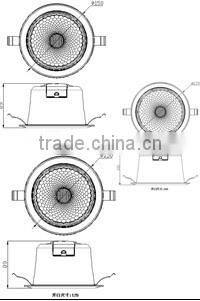

| dimensions | | ambient temperature | —25~35C° | ||||
| Cut-Size | Φ100mm/Φ125mm/Φ125mm/Φ150mm | ||||||
| Control method | No | ||||||
| IP grade | IP20 | ||||||
| Rated lifespan | ≥25000H | ||||||
| standard | GB7000.1-2007 | ||||||
| material | Aluminum | ||||||
| Power Efficiency | 90% | ||||||
| PF | 0.91 | ||||||
| Installations component | Snap-in | ||||||
| color | silver gray | ||||||
| CPD |

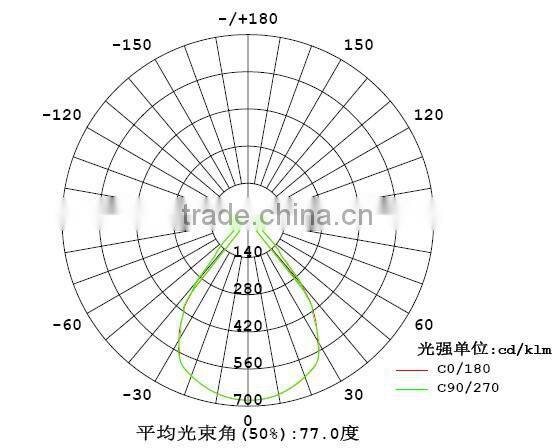

| Beam angle | 80° | ||||
| Luminous flux | 650lm/900lm/1050lm/1300lm | ||||||
| CCT | 3000K/4000K/5000K | ||||||
| CRI | Ra≥80 | ||||||
| Brand | / | ||||||
| Lamp type | 3030 | ||||||
| specification | 8/11/13/16 pcs chips, 0.26/0.34/0.34/0.42KG/PCS | ||||||
| specification | output: | ||||||
| Inner box size | K3A 3 layers: 166*162*88mm/191*187*107mm/191*187*107mm/217*213*125mm | ||||||
| Carton size | A=B 5 layers: 467*344*379mmmm/562*394*429mm/562*394*429mm/652*446*481mm | ||||||
| weight(Kg) | N.W = 5.5/7.2/7.2//8.9KG | ||||||

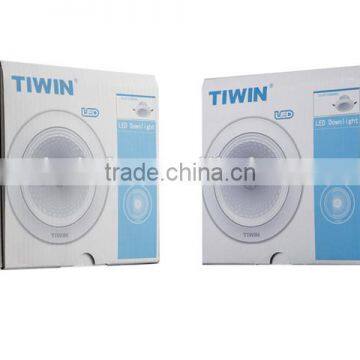

| packing | 20 pcs inner boxes per carton | ||||||

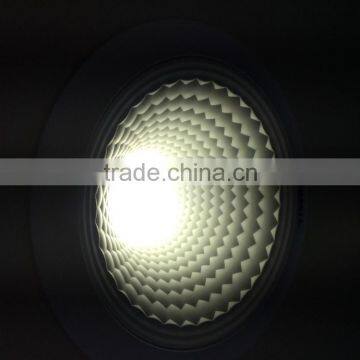

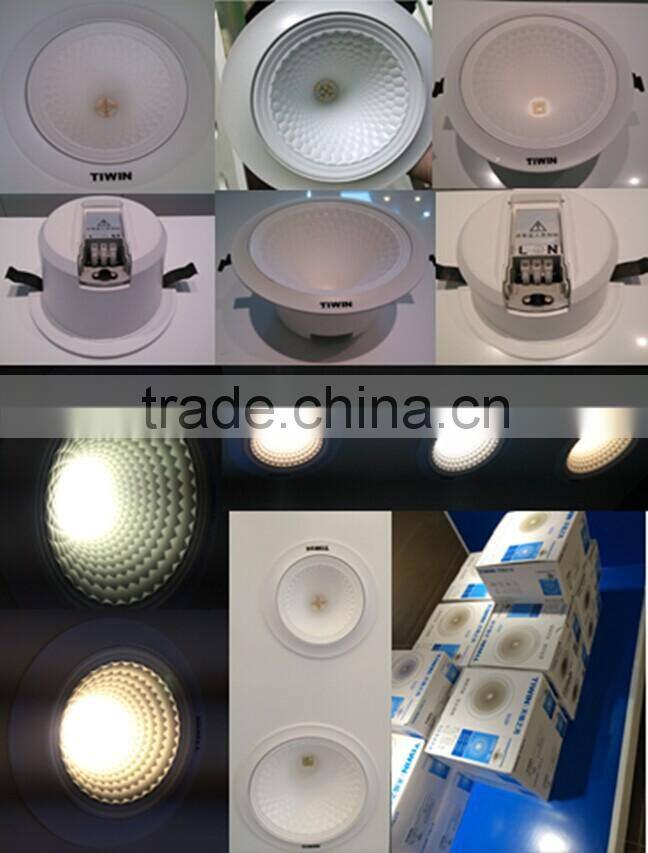

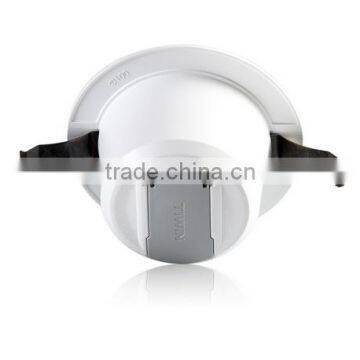

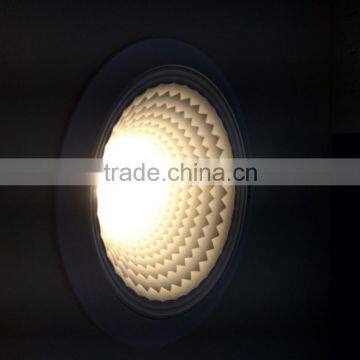

Downlight pictures:

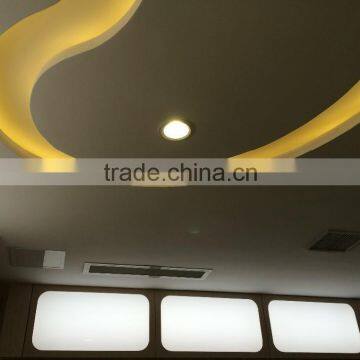

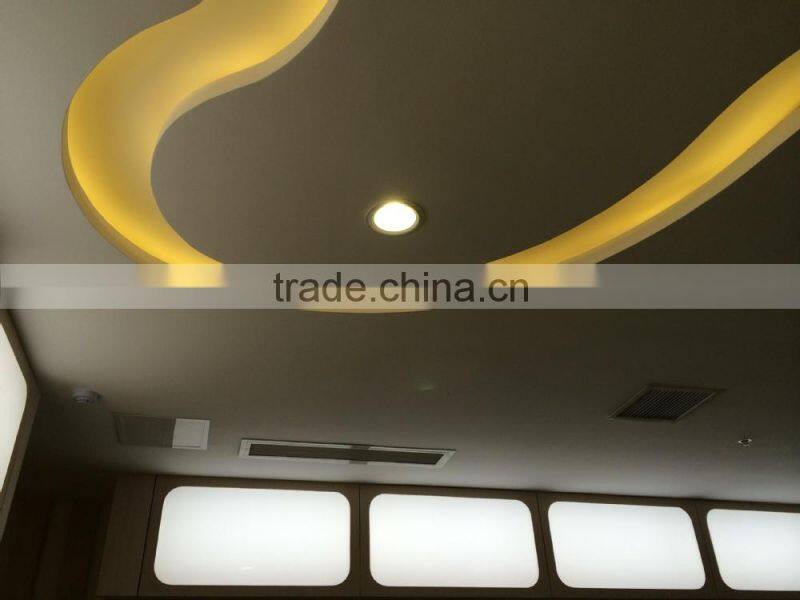

Install places:
shopping malls, museums, hotels, rooms and other places.
We provide with online video, virtual lighting designers, ready to support the installation and fabric lamp for electrical technicians at any time.
Company Information
TIWIN FACTORY AND OFFICE

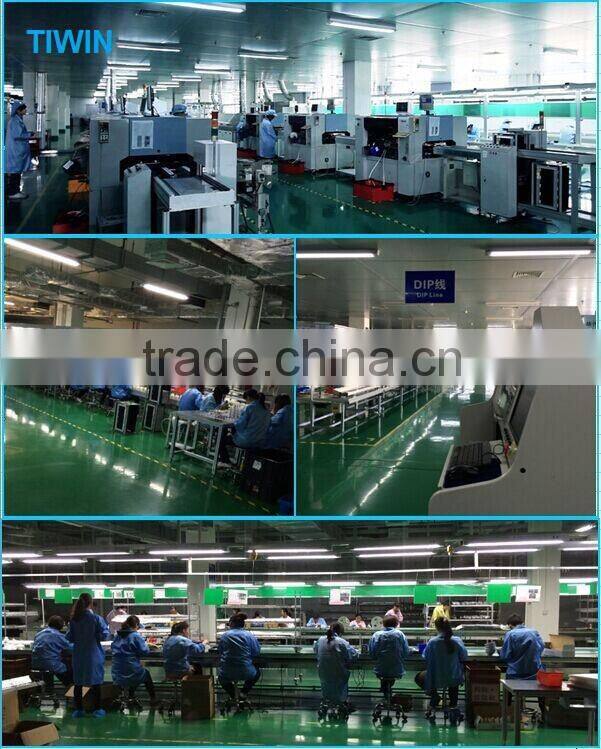

TIWIN WORKPLACE:

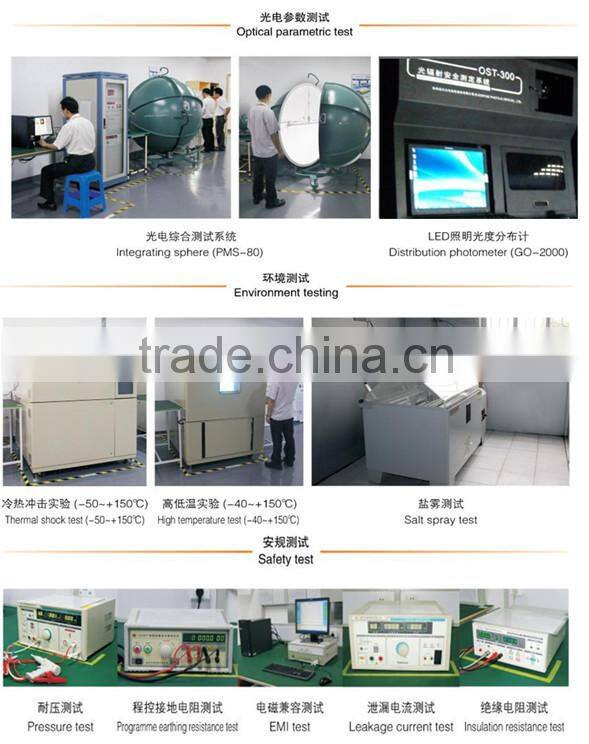

TIWIN LABORATORY:
TIWIN WAREHOUSE:
TIWIN ON CCTV:
TIWIN EXHIBITIONS:
Contact Us
- Jiangsu Tianying Opto-Electronics Technology Company Limited
- Contact nameKerry Ho Chat Now
- Phone0086-159-50876020
- AddressNo.69 Xiyuan Avenue,Haian, Nantong city ,Jiangsu, Nantong, Jiangsu
