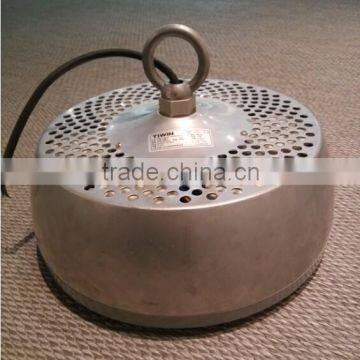

TIWIN Grey 4500k 60w led high bay light industrial lighting

Name: TIWIN Grey 4500k 60w led high bay light industrial lighting
Brand: TIWIN
Price: USD $89 - 89 / Piece

FOB Price

USD $89 - $89 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port SHANGHAI
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	Cree	Warranty(Years):	2	Input Voltage(V):	220-240
Lamp Power(W):	60	Lamp Luminous Flux(lm):	5400	Lamp Luminous Efficiency(lm/w):	90
Color Temperature(CCT):	Pure White	Working Temperature(℃):	-20, 40	Working Lifetime(Hour):	40000
Lamp Body Material:	Aluminum Alloy	IP Rating:	Other, ip 20	Certification:	CCC, CE
Place of Origin:	Jiangsu, China	Brand Name:	TIWIN	Model Number:	BYME industrial lighting

Product Description

TIWIN Grey 5500lm 60w led high bay light industrial lighting

Bright-sky series

Variety of housing colors

Applications: factories, warehouses, supermarkets, highway toll stations, gas stations, exhibitions etc.

3-years warranty

Features

Using spinning aluminum shell, high thermal conductivity profile extrusion heat sink, good texture, good heat dissipation

CREE/CITILED brand LED chips, high-efficiency, quality guaranteed

Optical lenses and high energy efficiency

Lifetime up to 40,000 hours

Housing Colors: dark gray, silver grey, rose red, apple green, to suit different applications

BYME serie	Luminous sources	Working environment	Installation	Protection grade	Rated life	Beam angle	Color	material	Input voltage
industrial lighting	3535	indoors	hanging	IP20	>40000h	60°	Deep gray/silver grey /rose red/apple green/lemon brown	Aluminum alloy/plastic	220-240V/50-60Hz

Specifications

MODEL#	Dimensions	Rated power	Current	Luminous flux	CCT	CRI	Power factor	Electrical protection	Package number
BYME2006A3U	φ300*H182mm	120W	700mA	10800Lm	4500K	>70	0.9	Class I	1PCS/box
BYME2005A3U	φ300*H182mm	100W	700mA	9000Lm	4500K	>70	0.9	Class I	1PCS/box
BYME2004A3U	φ300*H182mm	80W	700mA	7200Lm	4500K	>70	0.9	Class I	1PCS/box
BYME2003A3U	φ300*H182mm	60W	700mA	5400Lm	4500K	>70	0.9	Class I	1PCS/box

Name	BYME led High bay lighting
Product specification	220-240VAC, 50-60Hz 60W/80W/100W/120W
Size	Φ300 × H215mm
Installation method	Pendant Mounted
ambient temperature	-15-40℃,10%~65% RH
Angle adjustment	No
Control method	No
IP grade	IP20
Rated lifespan	≥40000H
standard	GB7000.1-2007
material	aluminum alloy
Radiator component	aluminum alloy
Ottica
Installations component	install ring
color	dark grey/Silver gray/red/green/yellow
Beam angle	60°
Luminous flux	5400±80lm/7200±120lm/9000±160lm/10800±200lm
CCT	4500±500K
CRI	Ra≥70
Brand	CREE
Lamp type
specification	27/36/45/54pcs 84×0.1W
specification
Inner box size	350×350×190mm
Carton size
weight(Kg)	N.W =4/4.2/4.4/4.5kg
packing	1pcs per carton
