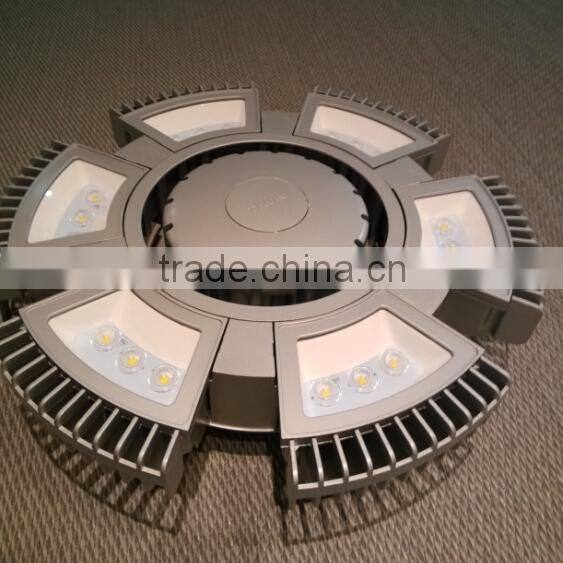

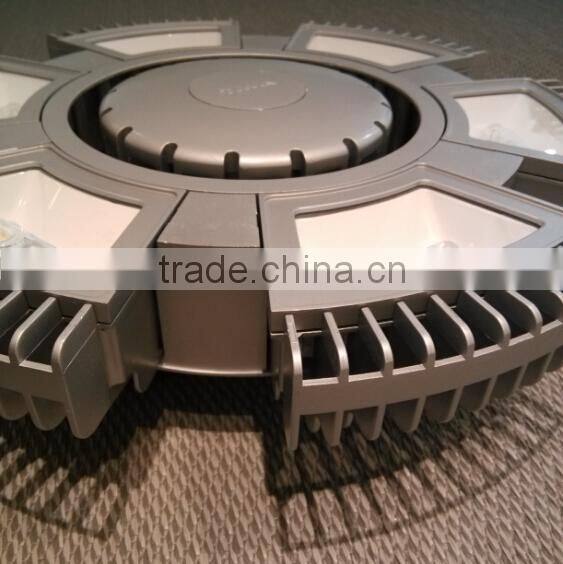

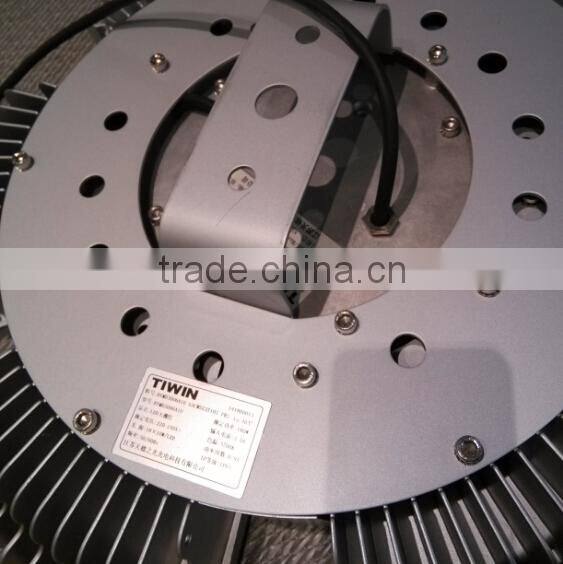

TIWIN LED high bay lamp 120w 180w 250w High power led high bay light fixture for warehouse and industrial lighting

Name: TIWIN LED high bay lamp 120w 180w 250w High power led high bay light fixture for warehouse and industrial lighting
Brand: TIWIN
Price: Negotiable

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port SHANGHAI
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	LUMILEDS	Warranty(Years):	3	Input Voltage(V):	100-240
Lamp Power(W):	180	Lamp Luminous Flux(lm):	17500	Lamp Luminous Efficiency(lm/w):	90
Color Temperature(CCT):	Cool White	Working Temperature(℃):	-20, 40	Working Lifetime(Hour):	40000
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP65	Certification:	CCC, CE
Place of Origin:	Jiangsu, China	Brand Name:	TIWIN	Model Number:	BYMD 180w led high bay lamp

Product Description

TIWIN LED high bay lamp factory warehouse light 120w 180w 250w high bay light

Skyline-boat series Highbay lamp

Modular design, flat shape, professional optical design, low glare, high luminous efficiency

Applications: workshop, factory, warehouse, highway toll stations, gas stations, supermarkets, exhibition hall, gymnasium etc.

3-years warranty

Features

Flat design, unique, more flexible installation

Professional thermal design cooling structure, the use of high thermal conductivity of aluminum alloy material, excellent thermal performance

IP65, dust and water resistance

AC100V-240V wide voltage input, constant current drive, stable light and color temperature

120/180/250W, 65/100 ° light distribution

BYMD serie

Working environment

Installation

Protection grade

Rated life

Beam angle

Color

material

LED Brand

led high bay lamp

-20~+40℃

chain hangs/ boom/ ceiling

IP65

>30000h

65°/100°

Silver gray

Die casting aluminum

Lumileds

Led high bay lamp Specifications

MODEL#	Dimensions	Rated power	Luminous flux	Color temperature	CRI	Power factor	Electrical protection	Weight	Package number
BYMD3008A1U	φ486*190mm	250W	25500Lm	5700K	>70	>0.95	Class I	13KG	1PCS/box
BYMD3006A1U	φ486*190mm	180W	17500Lm	5700K	>70	>0.95	Class I	11KG	1PCS/box
BYMD3004A1U	φ486*190mm	120W	11500Lm	5700K	>70	>0.95	Class I	8KG	1PCS/box

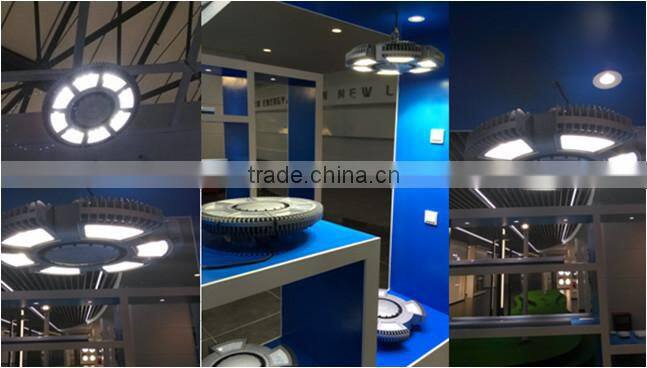

Showing room

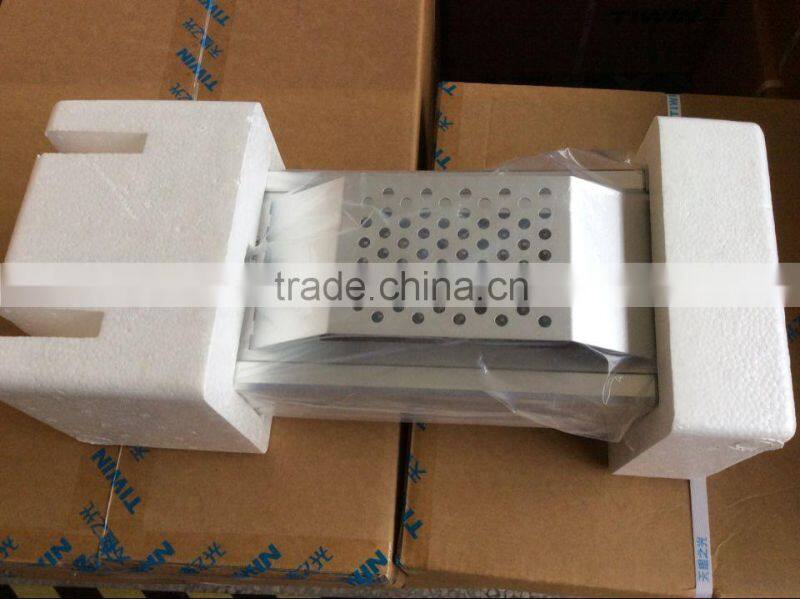

Packaging

Trade Shows

About TIWIN

I. Introduction

TIWIN is a subsidiary company of public-listed TIANYING GROUP (China TIWIN 000035).

TIWIN located in TIWIN Environmental-Protection Industry Park, Hai’an, Nantong City, Jiangsu Province, covers an area of 600 acres ( 400,000 square meters ). We has over 500 staffs, the R&D team includes more than 100 products development engineers. In 2011, we set up the Marketing and R&D Center in Caohejing Hi-tech Park, Shanghai.

TIWIN focused on design, manufacture, sale and service in LED lighting business.

II. Sample rooms

IV. Production

V. Warehouse

Advantages

1)Factory direct price
2)High power&quality LED&most part of our products are CREE/Bridgelux LED
3)All kinds of products are CE&Rohs certified;Most products with TUV, UL, SAA, EMC, GS,ETL,Energy Star certifications
4)Product&Package with Unique design
5) Own professional and experiency R & D staffs, years of experience

6) ISO9001:2008 quality control system
