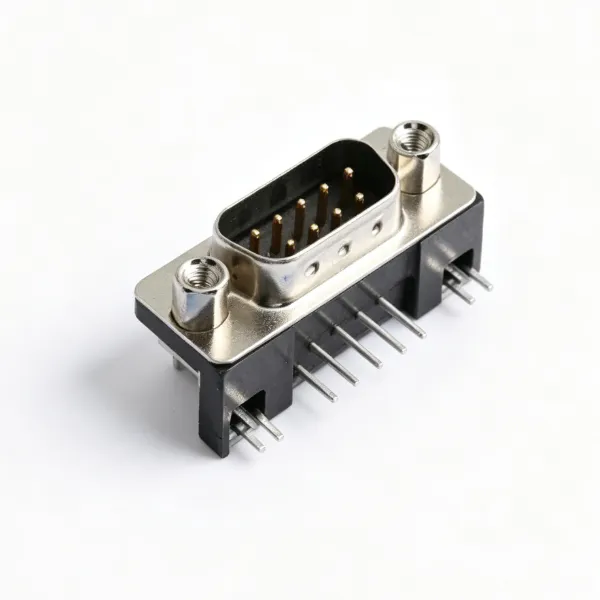

Help CenterHARTING 09681637813 9 Position D-Sub Male Plug Right Angle Through Hole PCB Connector With Gold Plated Contacts and 4-40 Screw Lock
Product Spotlights
Related Products
-
HARTING 09681537613 D-Sub Female Connector 9 Position Right Angle PCB Mount Through Hole Industrial Electronic Signal ConnectionUS$ 2.23MOQ: 50 Pieces -
HARTING 09691815821 D-Sub Mixed Female 20A Short S4 Solder Power Contact Gold Plated Copper Alloy Connector for Industrial ApplicationsUS$ 2.97MOQ: 100 Pieces
-
HARTING 09691817422 D-Sub Mixed Female 30A Solder Power Contact PL3 Straight Gold Plated Copper Alloy Contact for Industrial Connector ApplicationsUS$ 2.04MOQ: 100 Pieces
-
HARTING 09670094715 D-Sub 9 Pin Female Rectangular Industrial Connector for Automation Signal ConnectionUS$ 12 - 15MOQ: 1 Piece
-
HARTING 09670090323 D-Sub 9 Pin Metal Hood Shielded Backshell Rectangular Connector AccessoryUS$ 12 - 15MOQ: 1 Piece

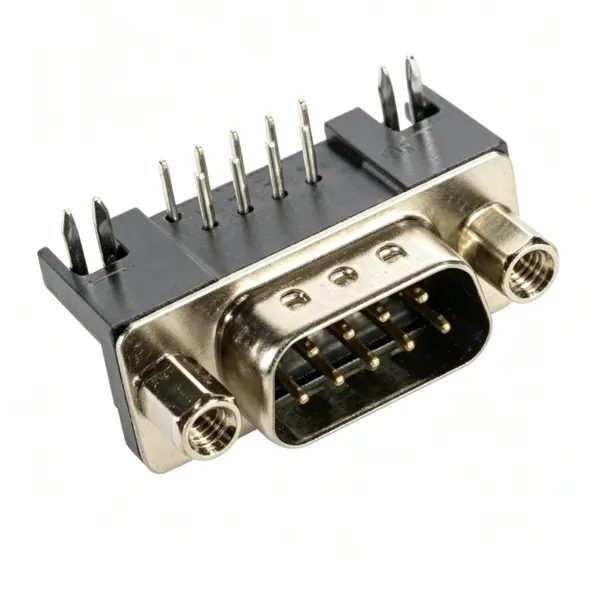

HARTING 09681637813 9 Position D-Sub Male Right Angle PCB Connector
Product Overview
HARTING 09681637813 is a 9-position D-Sub male connector designed for PCB connection applications. The product specification is DSUB SV MA SSDP ANG-US 09P AU3.
This connector features a right-angle configuration and through-hole mounting for PCB installation. The contacts are designed for wave soldering termination, making the connector suitable for industrial electronic assemblies and board-level signal connections.
Key Features
• Brand: HARTING
• Manufacturer Part Number: 09681637813
• HARTING Article Number: 09 68 163 7813
• Product Specification: DSUB SV MA SSDP ANG-US 09P AU3
• 9-position D-Sub connector
• Male plug configuration
• Two-row contact arrangement
• Right-angle connector orientation
• Through-hole PCB mounting
• Wave soldering termination
• Stamped contacts
• Copper alloy contacts
• Steel connector shell
• Glass-filled PBT insulating material
• Board locks for PCB fixing
• Grounding features
• 4-40 UNC screw lock flange
• Rated current: 6.5 A
Technical Specifications
Brand: HARTING
Manufacturer Part Number: 09681637813
Series: D-Sub
Product Type: D-Sub Male PCB Connector
Number of Positions: 9
Number of Contacts: 9
Number of Rows: 2
Gender: Male
Contact Type: Signal Contact
Contact Form: Stamped
Mounting Type: Through Hole
Connector Orientation: Right Angle
Termination Method: Wave Soldering
Connection Type: Motherboard to Daughtercard
Shell Size: D-Sub Size 1
Contact Material: Copper Alloy
Insulator Material: Glass-Filled PBT
Shell Material: Steel
Rated Current: 6.5 A
PCB Fixing: Board Locks
Grounding: Grounding Features
Locking Type: 4-40 UNC Screw Lock
Operating Temperature: -55°C to +125°C
Flammability Rating: UL94 V-0
Packaging: Bulk
Application: PCB Signal Connection
Typical Applications
• Industrial automation equipment
• Industrial computers
• Control systems
• Communication equipment
• Data transmission devices
• Measurement instruments
• Testing equipment
• Electronic control boards
• Industrial machinery
• PCB signal connection systems
Product Advantages
The right-angle configuration helps support PCB designs where horizontal connector installation is required.
The through-hole mounting and wave soldering termination provide a reliable connection method for printed circuit board assemblies.
The board locks help improve mechanical stability during installation.
The D-Sub 9-position configuration is suitable for industrial signal and communication connection applications.
Important Note
Please verify the connector orientation, number of positions, PCB footprint, mounting method and mating connector requirements before placing an order.
