Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China

Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China thumbnail-1
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China thumbnail-2
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China thumbnail-3
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China thumbnail-4
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China thumbnail-5
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China photo-1
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China photo-2

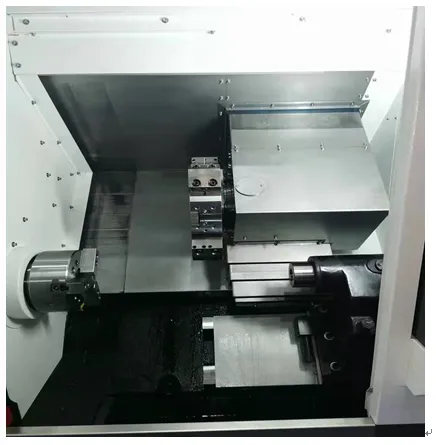

Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China photo-3

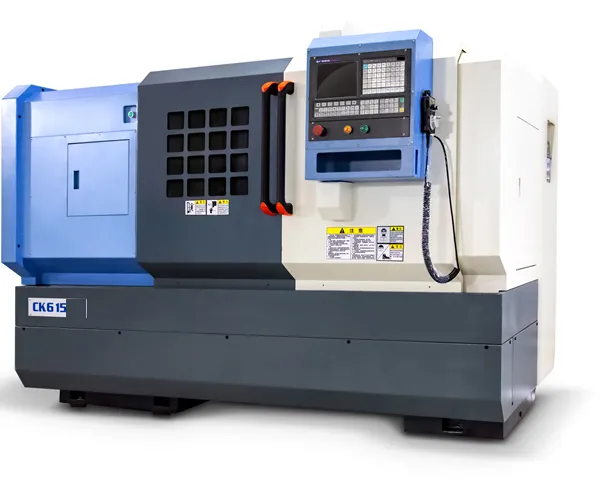

Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China photo-4
Horizontal Turret CNC Lathe Turn-mill Combination Horizontal Lathe From China photo-5
US$ 25000 - 500000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Vertical Lathe
Certification:
ISO 9001
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Suzhou Excellence Intelligent Technology Co., LTD
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Vertical Lathe
Certification ISO 9001
Automatic Grade Automatic
Power Source Electric
Condition New
Controlling Mode Other
Precision High Precision
Processing Accessory Centre CNC Lathe
Guide Rail Inclined Guide Rail
Tool Holder Single-tool Holder CNC Lathe
Setting Mode Table



Maximum rotary diameter on bed: Φ500 mm

Maximum rotary diameter on carriage: Φ280 mm

Maximum workpiece length: 1000 mm

Bed guide width: 390 mm

Maximum slide travel (X-axis): 500 mm

Maximum Z-axis carriage travel: 850 mm

Spindle bore diameter: Φ82 mm

Spindle speed range: 65–210 / 195–620 / 510–1600 rpm

Spindle nose specification: D8

Main motor power: 7.5 kW + 11 kW inverter

Tailstock sleeve taper hole: MT5

Tailstock sleeve diameter: 75 mm

Tailstock sleeve stroke: 165 mm

Positioning accuracy: 0.01 mm

Repeatability: ±0.005 mm

Ellipticity during machining: 0.004 mm

Surface roughness after machining: Ra1.6

Electric turret tool positions: 4 stations (6-station optional)

Tool clamp size: 25×25 mm

Overall dimensions (L×W×H): 2700×1600×1900 mm

Input power: 50 Hz, 380 V

Machine net weight: 2600 kg








Product Tags: HHorizontal turret CNC Lathe , turn-mill combination , Horizontal Lathe
