Welcome to Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000–3,000 square meter factory and 101–200 skilled employees. As a trusted supplier of seismic isolation products, we are proud to introduce our Spherical Design Seismic Isolation Pot Bearing Pad — a high-performance solution engineered for bridges and buildings. This advanced bearing combines spherical geometry with pot bearing technology to provide exceptional seismic protection, load distribution, and durability. With annual export value reaching US$2.5–5 million and shipments to global markets including North America, Europe, Southeast Asia, and Africa, our products are trusted by engineers worldwide. Read on to discover how this bearing pad can enhance the safety and longevity of your infrastructure projects.
Product Overview and Key Features

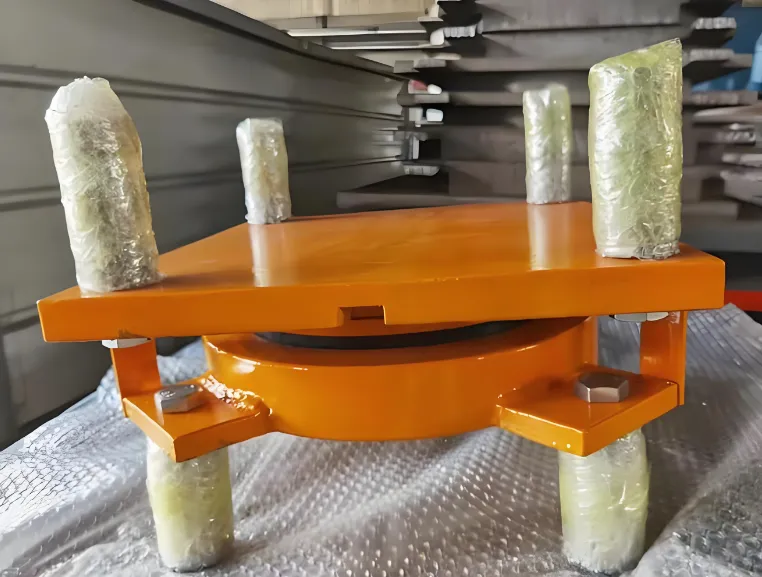

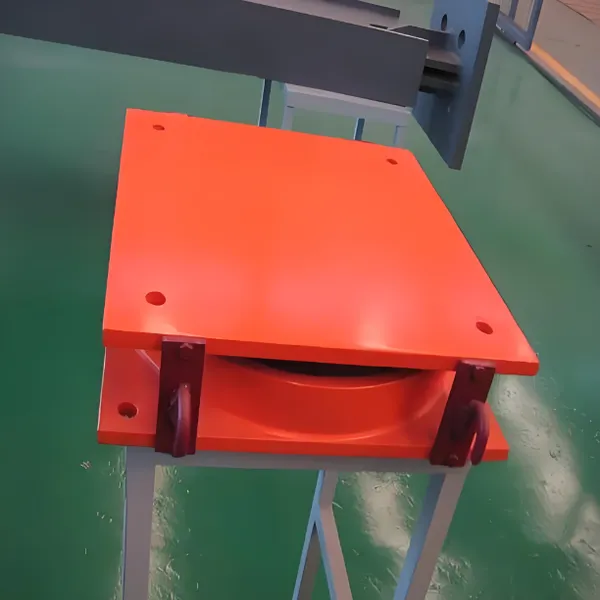

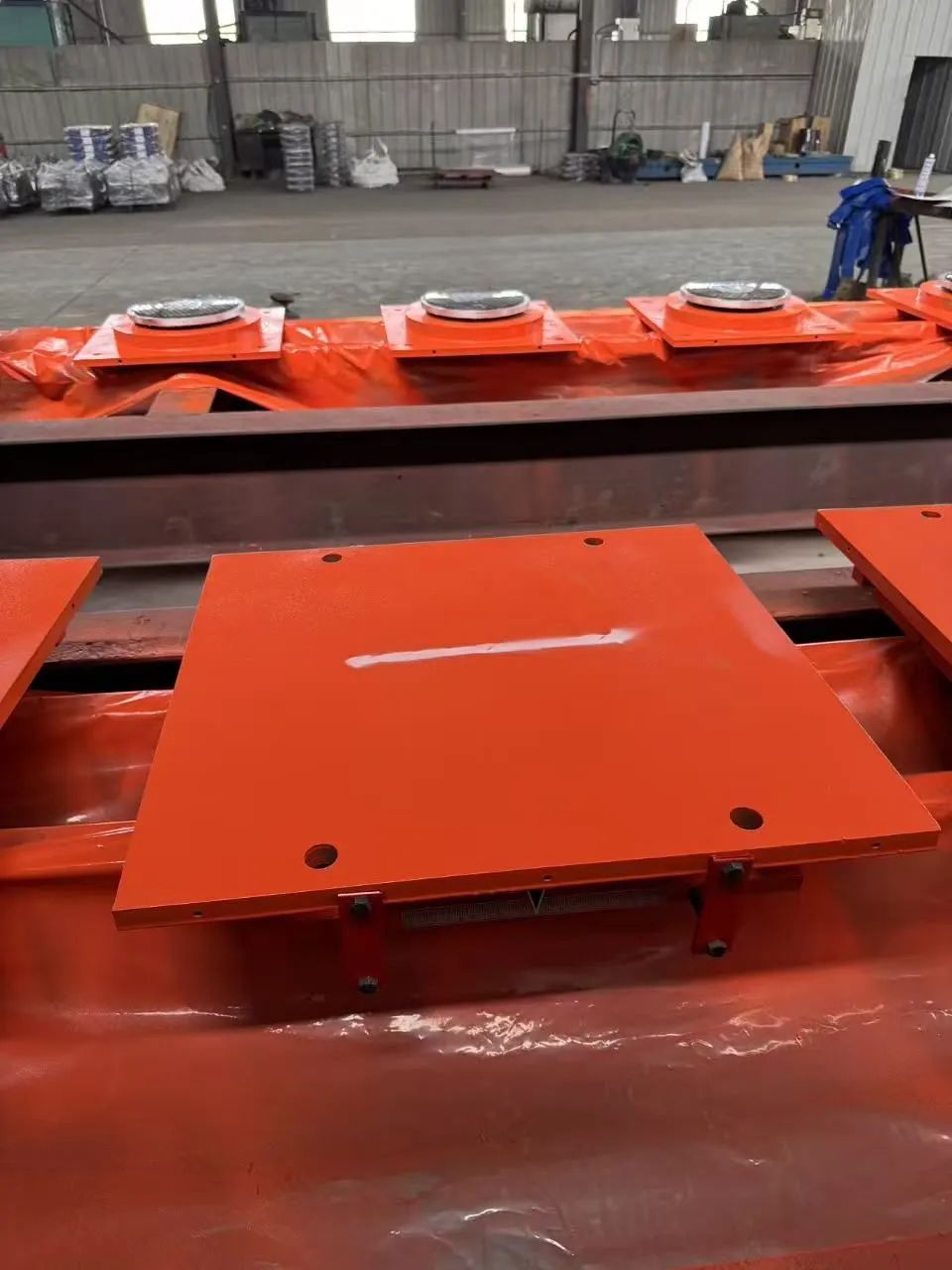

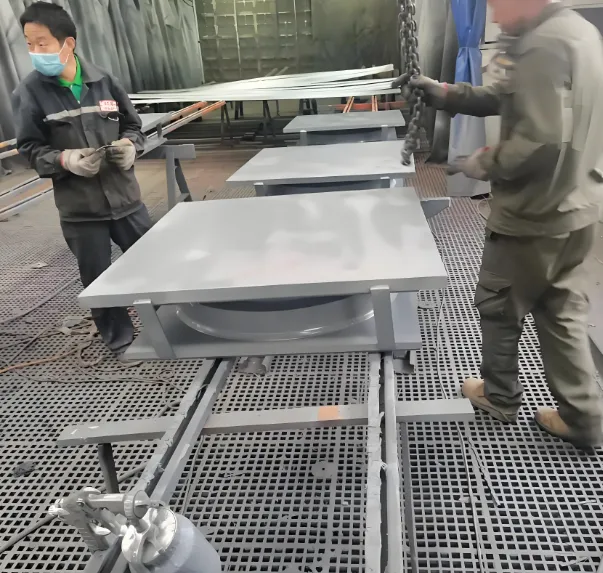

The Spherical Design Seismic Isolation Pot Bearing Pad is a state-of-the-art bearing system that isolates structures from seismic forces through controlled rotation and horizontal displacement. Its spherical surface allows multi-directional movement, reducing stress on the superstructure during earthquakes. Key features include:
- Spherical sliding surface — enables 360° rotation and accommodates large horizontal displacements, ensuring effective seismic isolation.
- Pot bearing core — made of high-strength steel and filled with elastomeric material, providing stable vertical load support and energy dissipation.
- PTFE (polytetrafluoroethylene) sliding layer — reduces friction and wear, allowing smooth movement under cyclic loads.
- Corrosion-resistant coating — protects against environmental factors, extending service life in harsh conditions.
- Modular design — available in various load capacities, dimensions, and configurations to meet specific project requirements.

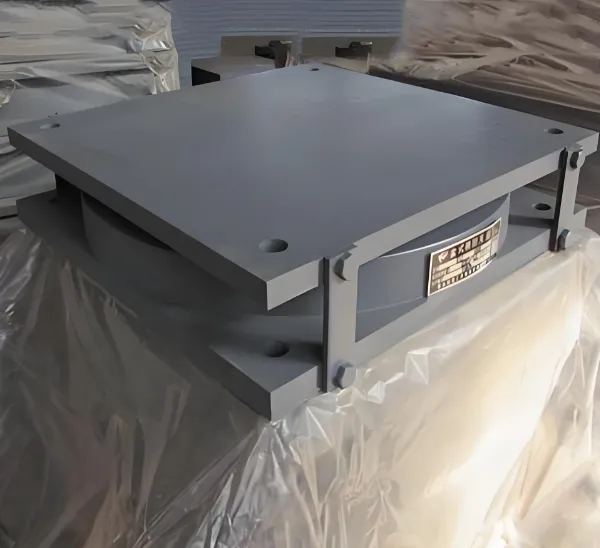

- Easy installation — pre-assembled units with anchor bolts and lifting lugs for quick on-site positioning.
Technical Specifications
The following table summarizes the typical technical parameters of our Spherical Design Seismic Isolation Pot Bearing Pad. Custom specifications are available upon request.
| Parameter | Value Range | Remarks |
|---|---|---|
| Vertical Load Capacity | 500 kN – 50,000 kN | Customizable |
| Horizontal Displacement | ±50 mm – ±200 mm | Higher options available |
| Rotation Angle | ±0.02 rad – ±0.05 rad | Spherical design ensures multi-directional rotation |
| Operating Temperature | -40°C to +60°C | Can be extended for special environments |
| Friction Coefficient | ≤ 0.03 (with PTFE layer) | Low friction ensures smooth movement |
| Design Life | ≥ 50 years | With proper maintenance |
| Material | Steel, PTFE, Elastomeric core | All materials comply with international standards |
Advantages and Benefits for Your Project
Choosing our spherical seismic isolation pot bearing pad brings multiple benefits to bridge and building applications:
- Enhanced seismic performance — The spherical design allows the bearing to accommodate multi-directional seismic forces, reducing the acceleration transmitted to the superstructure by up to 60% compared to fixed bearings.
- Reduced maintenance costs — The PTFE sliding layer and durable elastomeric core minimize wear and tear, requiring little to no maintenance over decades of service.

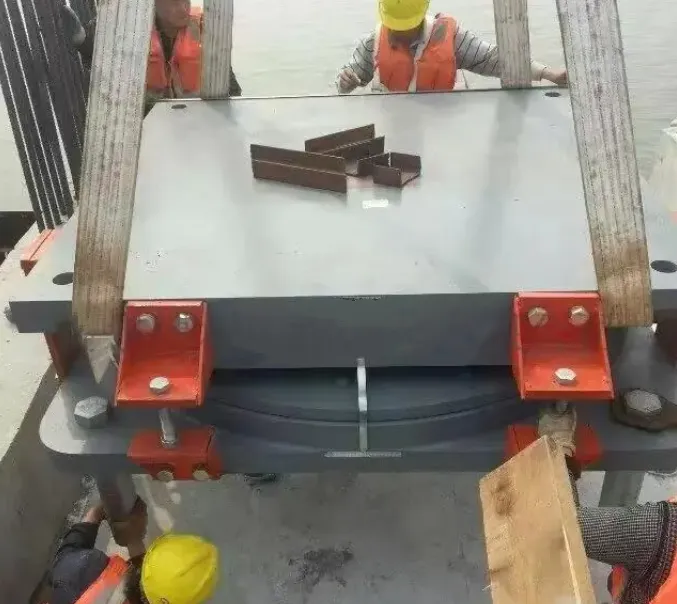

- Flexible installation — Suitable for both new construction and retrofit projects. The bearing can be installed on concrete or steel substructures with standard anchor systems.
- Customizable to your needs — We offer tailored solutions including load capacity, displacement range, and special coatings for corrosive environments such as coastal areas.
- Compliance with international standards — Our products are manufactured under ISO9001 quality management system, ensuring consistent quality and reliability.
- Environmental adaptability — With an operating temperature range from -40°C to +60°C, the bearing performs reliably in extreme climates.
Our bearing pads have been successfully deployed in numerous projects worldwide, including highway bridges, railway bridges, stadiums, hospitals, and high-rise buildings. The spherical design effectively isolates structures from ground motion, protecting both human life and property investment.
Why Choose Hengshui Ruibin New Materials LLC?

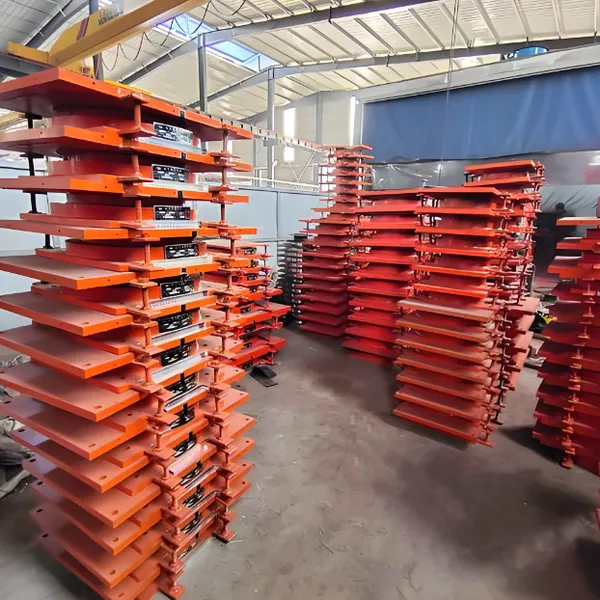

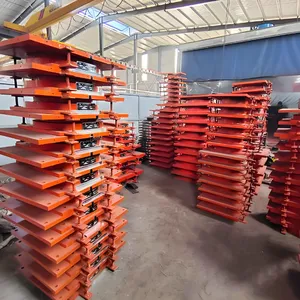

Since our establishment in 2019, we have grown rapidly to become a reliable partner in the global seismic isolation market. Our factory spans 1,000–3,000 square meters, equipped with advanced production lines and testing facilities. With a dedicated team of 101–200 employees, we ensure strict quality control at every stage — from raw material inspection to final assembly.
Our annual export value of US$2.5–5 million demonstrates strong international demand, with shipments via Tianjin and Qingdao ports to markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia. We hold ISO9001 and ISO9000 certifications, reflecting our commitment to quality management. Our main markets include both domestic and international clients, and we continuously strive to improve our products based on feedback and the latest engineering research.
When you choose our Spherical Design Seismic Isolation Pot Bearing Pad, you are investing in a product that undergoes rigorous testing, including load testing, fatigue testing, and environmental simulation. We provide comprehensive technical support, from design recommendation to on-site installation guidance. Our after-sales team is ready to assist with any queries.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between a spherical bearing and a traditional pot bearing?
A: A spherical bearing incorporates a curved sliding surface that allows rotation in multiple directions, whereas a traditional pot bearing typically rotates only in one plane. The spherical design provides better seismic isolation capability for structures subjected to complex ground motions. -
Q: Can this bearing pad be used for both bridges and buildings?
A: Yes, it is designed for both applications. For bridges, it handles vertical loads from traffic and environmental forces; for buildings, it isolates the superstructure from seismic activity. The bearing can be customized with different load ratings and displacement capacities to suit each project. -
Q: What is the typical lead time for production?
A: Standard production lead time is 30–45 days after order confirmation, depending on quantity and customization. Urgent orders can be expedited with prior arrangement. We recommend contacting our sales team for specific timelines. -
Q: Do you provide installation instructions and technical support?
A: Absolutely. We provide detailed installation manuals, technical drawings, and optional on-site guidance for large projects. Our engineering team is available for consultation before and after purchase. -
Q: What certifications does your product have?
A: Our manufacturing facility is ISO9001 and ISO9000 certified. The bearing pads are designed and tested in accordance with relevant international standards. If you require specific certifications for your region, please inform us so we can discuss compliance. -
Q: How do you ensure product quality during production?

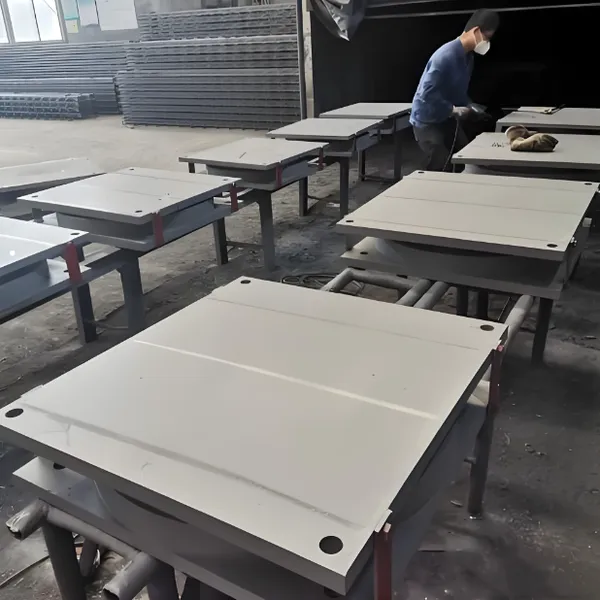

A: We implement a strict quality control system: incoming raw material inspection, in-process inspection during machining and assembly, and final performance testing including load and displacement tests. Each bearing is individually numbered and traceable. -
Q: What is the warranty period for your bearing pads?
A: We offer a standard warranty of 12 months from the date of shipment, covering manufacturing defects. Extended warranty options are available upon request. Please refer to our warranty policy for detailed terms. -
Q: Can you provide samples for testing before large orders?
A: Yes, we can provide sample units for evaluation. Sample cost and shipping will be discussed based on the specific requirements. Once the sample is approved, we can proceed with mass production.
Ready to enhance the safety and durability of your next project? Contact Hengshui Ruibin New Materials LLC today for a quotation or technical consultation. Our experienced team will help you select the optimal bearing solution and provide competitive pricing. With our proven track record and global shipping network, we are your reliable partner in seismic isolation. Trust us to deliver — your infrastructure deserves the best protection.
