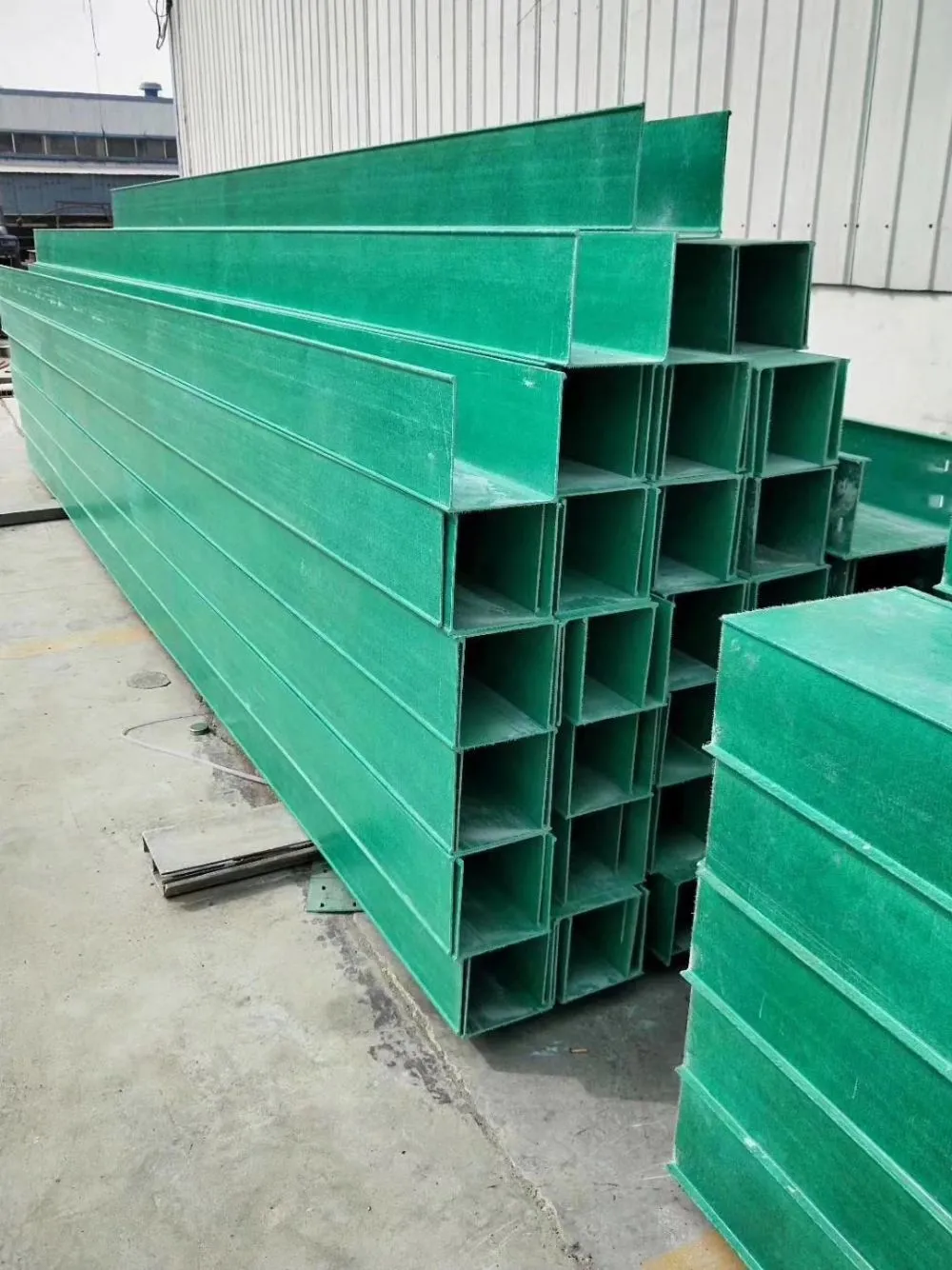

Hengshui Ruibin New Materials LLC is proud to present our premium Pultruded FRP Cable Tray with a robust load capacity of 100 kg/m and UL 94 V-0 flame retardant rating. As a manufacturer established in 2019 with a 1,000-3,000 sqm factory and ISO9001/ISO9000 certified production, we deliver high-quality, corrosion-resistant cable management solutions for global industries. Our trays are engineered for durability, safety, and easy installation, making them the ideal choice for demanding environments.
This 3-meter long cable tray is designed to support heavy cable loads while maintaining structural integrity. The pultrusion process ensures consistent fiber orientation, resulting in high strength-to-weight ratio and excellent dimensional stability. Whether you need it for power plants, petrochemical facilities, or data centers, our FRP tray offers superior performance over traditional metal trays.
Key Features & Technical Specifications
- Material: Pultruded fiberglass reinforced polyester resin – non-conductive, non-magnetic, and resistant to corrosion, chemicals, and UV.
- Load Capacity: Rated for 100 kg/m uniform load (tested as per industry standards). Available in higher load ratings upon request.
- Flame Retardancy: UL 94 V-0 rated – self-extinguishing, low smoke emission, suitable for fire-sensitive areas.
- Length: Standard 3 meters (9.8 ft), with custom lengths up to 6 meters available.
- Width Options: 150mm, 300mm, 400mm, 600mm (customizable).
- Color: Yellow or Gray (standard); other colors available on request.
- Surface: Smooth or textured anti-slip finish optional.
- Accessories: Splice plates, covers, brackets, clamps, and grounding kits available.
| Parameter | Specification |
|---|---|
| Material | Pultruded FRP (polyester resin + glass fiber) |
| Load Capacity | 100 kg/m (uniform load) |
| Flame Retardant | UL 94 V-0 |
| Standard Length | 3 meters |
| Operating Temperature | -40°C to +120°C |
| Dielectric Strength | > 50 kV (dry) |
| Weight per 3m section | Approx. 12-15 kg (depending on width) |
Advantages for Your Business
- Corrosion Resistance: Outlasts steel and aluminum in harsh chemical, marine, or humid environments – no rust, no painting required.
- Lightweight & Easy Installation: 1/4 the weight of steel, reducing labor costs and structural load. Simple to cut and assemble on-site.
- Safety: Non-conductive and non-sparking, ideal for electrical rooms and explosive atmospheres. UL 94 V-0 flame retardant ensures fire safety.
- Low Maintenance: No need for periodic coating or galvanizing – saves lifetime costs.
- High Strength: Pultruded continuous fiber provides superior tensile and flexural strength, supporting heavy cable loads without sagging.
- Customizable: Width, length, color, and accessories can be tailored to your project requirements.
Our FRP cable trays have been widely used in power generation, oil & gas, pharmaceutical, water treatment, and transportation projects across North America, South America, Europe, and Southeast Asia. With an annual export value of US$2.5-5 million, we serve both OEM and distributor partners.
Company Trust & After-Sales Support
Hengshui Ruibin New Materials LLC, established in 2019, operates a modern factory of 1,000-3,000 square meters with 101-200 skilled employees. Our ISO9001 and ISO9000 certified quality management system ensures consistent product excellence. We ship from Port of Tianjin and Port of Qingdao, providing reliable logistics to global markets. Our technical team offers free design consultation, sample testing, and installation guidance. We are committed to delivering value through superior products and responsive service.
Choose Hengshui Ruibin for your cable management needs – experience the difference of a dedicated manufacturer. Contact us today for a quote or technical inquiry.
Frequently Asked Questions
-
Q: What is the maximum load capacity of this FRP cable tray?
A: The standard load capacity is 100 kg/m for uniform load. Higher capacities (e.g., 150 kg/m) can be produced with reinforced design. -
Q: Is the tray suitable for direct burial or outdoor use?
A: Yes, the FRP material is UV-resistant and corrosion-proof. For outdoor installation, we recommend using UV-stabilized resin (optional). -
Q: Can I cut the tray to custom lengths on-site?
A: Absolutely. The pultruded profile can be easily cut with standard tools (e.g., abrasive saw). No special equipment needed. -
Q: What accessories are included with the tray?
A: The tray alone is supplied. Accessories such as splice plates, covers, brackets, and clamps are ordered separately. We provide complete kits upon request. -
Q: How does the flame retardant performance compare to metal trays?
A: Our UL 94 V-0 rating means the material self-extinguishes within 10 seconds and does not drip flaming particles. Metal trays are non-flammable but can conduct heat and electricity, whereas FRP provides additional electrical insulation. -
Q: What is the delivery time for a standard order?
A: For standard sizes (3m length, 300mm width), lead time is 10-15 working days after order confirmation. Custom orders may take 20-30 days. -
Q: Do you offer samples for testing?
A: Yes, we provide free samples (up to 30cm length) for quality evaluation. Shipping cost is on the customer's side. -
Q: Is the tray compatible with common cable tie systems?
A: Yes, the tray has a slotted design that allows easy attachment of cable ties, Velcro straps, or mounting brackets.
