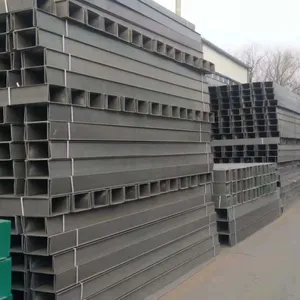

As a leading manufacturer specializing in FRP (Fiberglass Reinforced Plastic) cable trays, Hengshui Ruibin New Materials LLC is proud to introduce our high-quality FRP Cable Tray, available in the standard size of 50mm x 100mm with a 3-meter length. Established in 2019 and backed by a 1,000-3,000 square meter factory, we have been serving global markets including North America, Europe, Southeast Asia, and Africa. Our products are designed for durability, corrosion resistance, and easy installation, making them the ideal choice for cable management in demanding environments. With a 1-year warranty and free sample available, we invite you to experience the quality and reliability of our FRP cable trays firsthand.
Product Features & Technical Specifications
Our FRP cable tray is manufactured using pultrusion technology, ensuring consistent quality and mechanical strength. Below are the key features and detailed specifications:
- Corrosion Resistance: Ideal for chemical plants, wastewater treatment, offshore platforms, and other corrosive environments.
- Lightweight & High Strength: Weighs approximately 30% less than steel trays, reducing installation costs and structural load.
- Non-Conductive & Non-Magnetic: Safe for electrical applications, minimizing interference with sensitive cables.
- UV Resistant: Suitable for both indoor and outdoor installations, with additives to protect against sunlight degradation.
- Fire Retardant Properties: Optional fire-retardant resin available upon request to meet specific safety standards.
- Easy Installation: Pre-drilled holes and splice plates allow for quick assembly and adjustment.
- Low Maintenance: No need for painting or coating; resistant to rust and rot.
- Customizable Length & Color: Available in custom lengths (up to 6m) and multiple colors (grey, yellow, green, etc.).
| Parameter | Value |
| Overall Width (W) | 50 mm |
| Overall Height (H) | 100 mm |
| Section Length | 3 m (customizable) |
| Material | Fiberglass Reinforced Plastic (FRP) |
| Resin Type | Polyester / Vinyl Ester (optional) |
| Load Capacity | Up to 150 kg/m (depending on design) |
| Operating Temperature | -40°C to +80°C (higher upon request) |
| Surface Finish | Smooth, UV-stabilized coating |
| Warranty | 1 Year |
Benefits to Your Business
- Reduce Total Cost of Ownership: Longer lifespan (20+ years) compared to metal trays, with zero maintenance costs.
- Faster Project Completion: Lightweight design allows for faster installation, saving labor time and costs.
- Enhanced Safety: Non-conductive and non-magnetic properties reduce risk of electrical hazards.
- Environmentally Friendly: FRP is recyclable and requires less energy to produce than steel.
- Global Compliance: Our products are manufactured under ISO9001:2015 certified quality management system, ensuring consistent quality.
Our FRP cable trays are widely used in industries such as oil & gas, petrochemical, power generation, telecommunications, data centers, water treatment, and infrastructure projects. The standard 50mm x 100mm size is suitable for medium cable loads, while the 3m length offers convenient handling and flexibility for layout design.
Trust & Reliability
Hengshui Ruibin New Materials LLC has been a trusted manufacturer since 2019, with an annual export value of US$2.5 Million – US$5 Million and a dedicated team of 101-200 employees. Our factory spans 1,000-3,000 square meters, equipped with advanced pultrusion lines and quality testing equipment. We ship from major ports including Port of Tianjin and Port of Qingdao, ensuring timely delivery worldwide. With certifications including ISO9001 and ISO9000, our products meet rigorous quality standards. We have successfully served markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more. To build your confidence, we offer a free sample for evaluation. Contact us today to request your sample or discuss your custom requirements.
Frequently Asked Questions
Q1: What is the maximum load capacity of this FRP cable tray?
A: The standard 50mm x 100mm tray can support up to 150 kg/m under uniform load, depending on the support spacing. For higher loads, we can customize the design with thicker walls or additional reinforcements.
Q2: Is this cable tray suitable for outdoor use?
A: Yes, our FRP cable trays are UV-resistant and can withstand outdoor exposure. We recommend adding a UV stabilizer during manufacturing for long-term outdoor applications. Options for fire-retardant resin are also available.
Q3: What accessories are available for installation?
A: We provide a full range of accessories including splice plates, brackets, covers, dividers, and fasteners. All accessories are made of FRP or stainless steel to match the tray's corrosion resistance.
Q4: Can I get a free sample before placing a bulk order?
A: Absolutely! We offer free samples of the standard size (50mm x 100mm x 3m) for evaluation. You only need to cover the shipping cost. Contact our sales team to arrange a sample shipment.
Q5: What is the lead time for a typical order?
A: For standard 50mm x 100mm trays, lead time is approximately 15-20 working days after confirmation. Custom sizes or colors may require additional time. We work closely with our logistics partners to ensure timely delivery from Tianjin or Qingdao ports.
Q6: Do you have any certifications for quality?
A: Yes, we are certified under ISO9001:2015 (ISO9001 and ISO9000). Our quality management system ensures consistent product quality from material selection to final inspection.
Q7: Can this cable tray be used in corrosive environments like chemical plants?
A: Yes, FRP is inherently corrosion-resistant to most chemicals, acids, and alkalis. For highly aggressive environments, we recommend using vinyl ester resin to enhance chemical resistance. Please consult with our technical team for specific recommendations.
Q8: What is the warranty policy?
A: We offer a 1-year warranty against manufacturing defects. Under normal usage conditions, our FRP cable trays have a service life of 20 years or more. We stand behind our product quality and provide prompt after-sales support.
