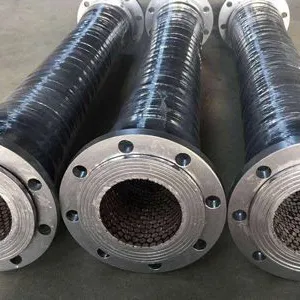

Help CenterCeramic Lined Wear Resistant Rubber Hose Flexible Ceramic Rubber Hose
Product Spotlights
Related Products
-
Ceramic Lined Wear Resistant Rubber Tube for River Sand Pumping WorkNegotiableMOQ: 1 Meter -
High Wear Resistant Ceramic Lined Rubber Pipe for Ore Conveying ProjectNegotiableMOQ: 1 Meter
-
Wear Resistant Ceramic Lined Rubber Pipe for Mineral Material ConveyingNegotiableMOQ: 1 Meter
-
Wear Resistant Ceramic Lined Rubber Tube for Fly Ash Conveying OperationNegotiableMOQ: 1 Meter
-
Ceramic Lined Wear Resistant Rubber Sand Blasting Hose for Abrasive BlastingNegotiableMOQ: 1 Meter
Welcome to Hebei Speed Torque Transmission Technology Co., Ltd. – your reliable partner for high-performance industrial hoses. Since 2017, we have been dedicated to manufacturing superior Ceramic Lined Wear Resistant Rubber Hoses that combine the flexibility of rubber with the extreme hardness of ceramic tiles. Our factory, spanning 3,000–5,000 square meters, and a skilled team of 101–200 employees ensure that every hose meets rigorous quality standards. With ISO9001 certification and an annual export value of US$5 million to US$10 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania. This Ceramic Lined Rubber Hose is designed to withstand severe abrasion, impact, and high temperatures, making it the ideal solution for demanding material handling and slurry transport applications.
Product Features & Technical Specifications

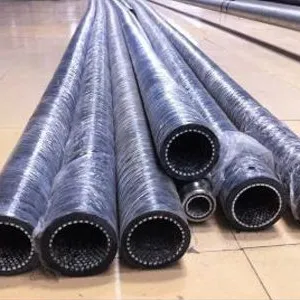

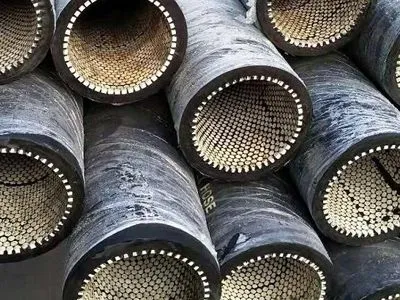

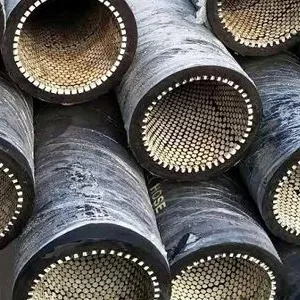

- Ceramic Lined Protection: High-alumina ceramic tiles (Al₂O₃ ≥ 92%) are embedded in the rubber matrix, providing exceptional wear resistance against abrasive particles, slurries, and powders.
- Flexible Rubber Body: The natural rubber or SBR/NBR outer layer offers excellent flexibility, allowing easy installation in tight spaces and reducing system stress.
- Enhanced Durability: The combination of rubber and ceramic extends service life 3–5 times longer than traditional rubber hoses, reducing replacement frequency and downtime.
- Wide Temperature Range: Suitable for continuous operation from -40°C to +150°C, with optional heat-resistant compounds for higher temperatures.
- Customizable Dimensions: Available in inner diameters from 1 inch to 12 inches, lengths up to 20 meters, and various flange/end fittings upon request.
- Pressure Resistance: Working pressure ranges from 10 bar to 40 bar, with burst pressure 3–4 times higher, ensuring safety in high-pressure systems.
- Low Maintenance: The smooth internal ceramic surface reduces friction, minimizes clogging, and requires less cleaning.
| Parameter | Specification |
|---|---|
| Inner Diameter | 1" – 12" (customizable) |
| Working Pressure | 10 – 40 bar |
| Burst Pressure | ≥ 3x working pressure |
| Temperature Range | -40°C to +150°C |
| Ceramic Thickness | 3 mm – 10 mm (optional) |
| Rubber Hardness | 60 – 80 Shore A |
| Standard Length | 1 – 20 meters |

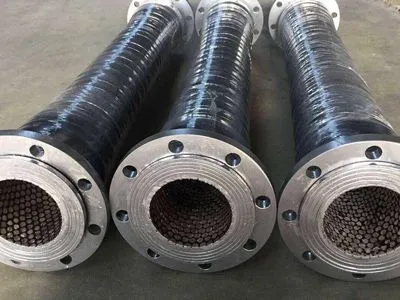

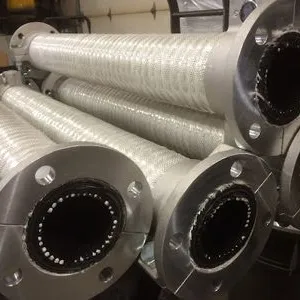

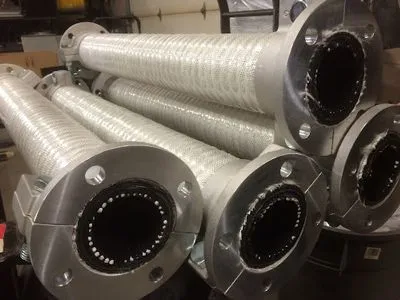

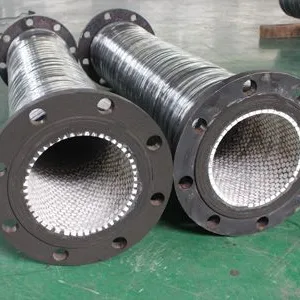

| End Fittings | Flanged, threaded, or custom (available upon request) |
Key Benefits for Your Business
- Reduced Operational Costs: The extended wear life means fewer replacements, lower maintenance, and less downtime – directly improving your bottom line.
- Enhanced Safety: High burst pressure and robust construction minimize the risk of sudden hose failure in high-pressure systems.
- Versatile Applications: Ideal for transporting abrasive slurries (mining, dredging), dry powders (cement, fly ash), and granular materials in power plants, steel mills, and chemical industries.
- Easy Installation: The flexible rubber body allows routing around obstacles without additional fittings, saving installation time and costs.
- Environmentally Friendly: Longer service life reduces waste, and the materials are recyclable where local facilities exist.
Trust & Experience
At Hebei Speed Torque Transmission Technology Co., Ltd., we have been delivering high-quality Ceramic Lined Rubber Hoses to global markets since 2017. Our ISO9001-certified quality management system ensures every hose undergoes strict inspection – from raw material testing to final pressure and abrasion tests. With a dedicated team of 101–200 employees and a modern factory of 3,000–5,000 square meters, we can fulfill orders of any scale with consistent quality. Our annual export value of US$5 million to US$10 million reflects the trust of customers in North America, South America, Europe, Asia, Africa, and Oceania. We ship from major Chinese ports (Shanghai, Tianjin, Qingdao) and offer custom packaging and logistics support. When you choose our Ceramic Lined Rubber Hose, you choose durability, flexibility, and a partner committed to your success. Contact us today for a quote or technical consultation – we are ready to serve you.
Frequently Asked Questions (FAQ)
Q1: What makes this ceramic lined rubber hose different from standard rubber hoses?
A1: The embedded ceramic tiles provide a hard, smooth inner surface that resists severe abrasion from sharp particles, while still maintaining the flexibility of rubber. This combination significantly extends service life in abrasive applications.
Q2: Can this hose be used for high-temperature materials?
A2: Yes, the standard temperature range is -40°C to +150°C. For higher temperatures up to 250°C, we can use special rubber compounds – please consult our technical team.
Q3: What end fittings are available?
A3: We offer flanged ends (ANSI, DIN, JIS), threaded ends (NPT, BSP), and custom designs. All fittings are available upon request.
Q4: How do I determine the correct inner diameter and working pressure for my application?
A4: We recommend providing the flow rate, material density, and system pressure. Our engineering team can help calculate the optimal size and pressure rating for your specific needs.
Q5: Is this hose suitable for food-grade applications?
A5: The standard version is not food-grade. However, we can supply a variant with FDA-approved rubber lining upon request – please specify your requirements.
Q6: What is the minimum order quantity (MOQ)?
A6: Our standard MOQ is 50 meters for each size, but we can accommodate smaller trial orders for new customers. Contact us for details.
Q7: How long does shipping take?
A7: For standard sizes, production takes 15–25 days. Shipping time depends on the destination; we ship via sea or air from Shanghai, Tianjin, or Qingdao port.
Q8: Do you provide samples for testing?
A8: Yes, we can provide small sample pieces (cut sections) or a short hose sample at a nominal cost. Please contact our sales team for sample requests.
