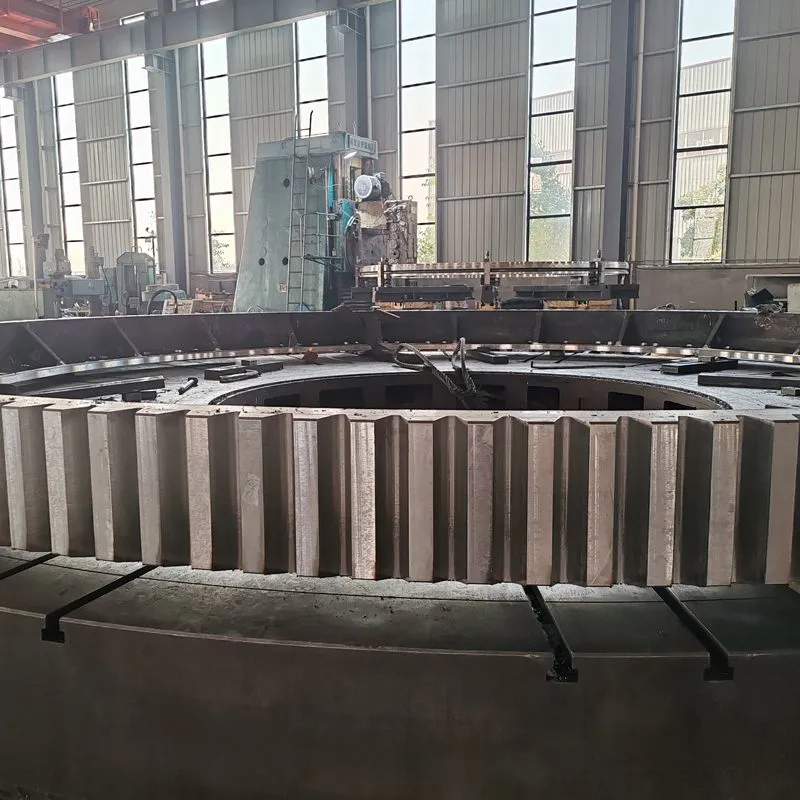

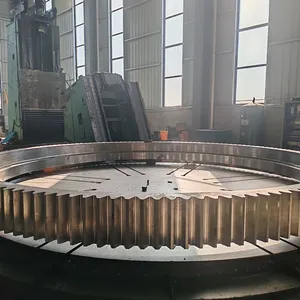

Forged Ball Mill Girth Gear, 15m Diameter, Module 30, Quenched and Tempered, 5000 Nm Rated Torque, Smooth Operation
Product Spotlights
Forged 15m diameter, module 30 girth gear with 5000 Nm rated torque. Quenched and tempered for high strength and durability. Smooth operation reduces vibration and energy loss. ISO9001 certified, customizable options available. Ideal for ball mills in mining and cement industries.
US$ 1000
≥1 Combo
Key Specifications
Get Latest Price
Diameter:
15m
Module:
30
Rated Torque:
5000 Nm
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao|tianjin
Delivery Detail:
30 days
Related Products
-
Large Ball Mill Girth Gear, 18m Diameter, Module 35, 42CrMo4, Induction Hardened, 10000 Nm, ISO 7 PrecisionUS$ 1000MOQ: 1 Combo -
Ball Mill Girth Gear, 16m Diameter, Module 30, 40Cr, Induction Hardened, 6000 Nm, With Mill Test Report, 1-Year WarrantyUS$ 1000MOQ: 1 Combo
-
Ball Mill Girth Gear for Mineral Processing Plant, 14m Diameter, 20CrNiMo, 8500 Nm, Oil-Immersion Lubrication, Stable RotationUS$ 1000MOQ: 1 Combo
-
Alloy Steel Ball Mill Girth Gear, 40CrNiMo Material, 20m Diameter, ISO 6 Precision, Induction Hardened for Cement PlantUS$ 1000MOQ: 1 Combo
-
Ball Mill Girth Gear, 12m Diameter, 20MnCr5 Material, Carburized and Hardened, 6500 Nm Torque, Dust-Proof DesignUS$ 1000MOQ: 1 Combo
Diameter
15m
Module
30
Rated Torque
5000 Nm
Material
Forged Alloy Steel
Heat Treatment
Quenched and Tempered
Application
Ball Mill
Type
Girth Gear
Hardness
Optional (customizable)
Precision Grade
Available upon request
Certification
ISO9001, ISO14000, OHSAS18001
As a professional manufacturer with over 10,000 square meters of factory space and 51–100 experienced employees, Henan San Kuang Machinery Technology Co., Ltd. is proud to offer our Forged Ball Mill Girth Gear – a critical component for large-scale grinding operations. Engineered with a 15-meter diameter, module 30, and a rated torque of 5000 Nm, this gear undergoes a precise quenching and tempering process to deliver exceptional durability and smooth operation. Our commitment to quality and international standards (ISO9001, ISO14000, etc.) ensures that every gear meets the rigorous demands of the mining and cement industries.
Key Features & Technical Specifications
- Forged Construction: Made from high-strength alloy steel, providing superior toughness and wear resistance compared to cast alternatives.
- Large Diameter & High Module: 15m outer diameter and module 30 enable the gear to transmit high torque efficiently while maintaining structural integrity.
- Quenched & Tempered Heat Treatment: Enhances surface hardness and core ductility, reducing the risk of cracking under heavy loads.
- 5000 Nm Rated Torque Capacity: Designed to handle the demanding power requirements of ball mills in dry or wet grinding processes.
- Smooth Operation: Precision machining and balancing ensure low noise, reduced vibration, and extended service life for the entire drive system.
- Customizable Options: Tooth profile, hardness, and final machining can be tailored to customer specifications – available upon request.
| Parameter | Value |
|---|---|
| Outer Diameter | 15 m |
| Module | 30 |
| Rated Torque | 5000 Nm |
| Material | Forged Alloy Steel (e.g., 42CrMo4 or equivalent) |
| Heat Treatment | Quenching + Tempering |
| Surface Hardness | Customizable (typically 280–320 HB) |
| Application | Ball Mill (cement, mining, mineral processing) |
| Certification | ISO9001, ISO14000, OHSAS18001, and others |
Product Advantages & Customer Benefits
- Extended Service Life: The forged structure and optimized heat treatment significantly reduce fatigue failure, lowering maintenance costs over the gear's lifetime.
- Improved Energy Efficiency: Smooth operation and precise tooth engagement minimize power losses, contributing to lower overall energy consumption of the mill.
- Faster Installation: Each gear is machined to tight tolerances, ensuring easy alignment with the mill shell and pinion, reducing downtime during assembly.
- Global Compliance: Our manufacturing process adheres to multiple international standards (ISO9001, ISO14000, OHSAS18001), making the gear suitable for export to North America, Europe, South America, Africa, and other regions.
- Flexible Customization: We offer options for tooth profile modification, additional surface treatments (e.g., nitriding), and partial or full machining – all available upon request.
Trust & Reliability
Henan San Kuang Machinery Technology Co., Ltd. has been serving global customers since 2022, with an annual export value of US$2.5 million to US$5 million. Our factory spans 10,000–30,000 square meters and houses a skilled team of 51–100 people. We are proud to hold certifications such as ISO9001, ISO14000, OHSAS18001, SA8000, TL9000, QS9000, and others, ensuring that every product meets stringent quality, environmental, and safety standards. With convenient shipping ports in Shanghai, Qingdao, Tianjin, and Lianyungang, we deliver promptly to markets across the globe. Choose our Forged Ball Mill Girth Gear for reliable performance and long-term value. Contact us today for a quote or technical consultation.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for a 15m diameter girth gear?
A: Lead time depends on the specific requirements and current production schedule. Typically, it ranges from 4 to 6 months. Please contact us for an accurate estimate based on your order. -
Q: Can the gear be manufactured with different tooth profiles (e.g., involute, cycloidal)?
A: Yes, we can machine standard involute profiles as well as custom profiles per your design. The module 30 specification is standard, but we can adjust the tooth geometry as needed. -
Q: What is the maximum hardness achievable after heat treatment?
A: Through quenching and tempering, we can achieve surface hardness in the range of 280–320 HB. For higher hardness (e.g., 350–400 HB), additional surface hardening processes like nitriding are available upon request. -
Q: Do you provide installation and after-sales support?
A: We offer technical documentation, on-site installation guidance (if required), and a standard warranty period. Our team can assist with troubleshooting and spare parts supply. -
Q: Is the gear suitable for wet grinding environments (e.g., slurry)?
A: Yes, the forged alloy steel with proper sealing and corrosion protection can withstand wet conditions. We recommend discussing your specific environment for additional coating or material options. -
Q: What certifications do your products hold?
A: Our factory is certified under ISO9001, ISO14000, OHSAS18001, SA8000, and many others. We can provide a certificate of conformity with each shipment. -
Q: How do you ensure the gear's balance and smooth operation?
A: Every gear undergoes dynamic balancing after machining. We also perform run-out and tooth contact pattern inspections to guarantee smooth meshing and low vibration. -
Q: Can you supply a complete drive system including pinion and bearings?
A: Yes, we can supply the matching pinion gear, shaft, and bearings as a package. Please inquire for a complete system quotation.
