Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a factory spanning 1,000-3,000 square meters and an annual export value of US$2.5-5 million, proudly presents our FRP Drainage Channel designed specifically for parking lots and roadways. Complying with the EN 1433 B125 load rating standard, this 1000mm length channel combines high strength, corrosion resistance, and lightweight properties to offer an efficient drainage solution. Our ISO9001-certified production ensures consistent quality, making it an ideal choice for infrastructure projects worldwide.
The product is engineered to handle heavy pedestrian and light vehicular traffic (up to 12.5 tons static load) while maintaining excellent hydraulic performance. Its fiberglass reinforced polymer (FRP) construction eliminates the issues of rust, spalling, and chemical attack that plague traditional concrete or metal channels. Below we detail the key features, technical specifications, and benefits for your project.
Key Features & Benefits
- High Load Capacity: B125 rating per EN 1433 – suitable for parking lots, pedestrian zones, and light roadway applications.
- Corrosion & Chemical Resistance: FRP withstands acids, alkalis, salts, and UV exposure, ensuring decades of service life.
- Lightweight & Easy Installation: Weighs 70% less than concrete channels – reduces labor costs and equipment needs.
- Modular Design: 1000mm standard length with interlocking joints for continuous runs; custom lengths available upon request.
- Low Maintenance: Smooth inner surface reduces debris buildup; easy to clean with water jet.
- Anti-Slip Grate Options: Available in ductile iron, galvanized steel, or FRP grates to match safety requirements.
- Customizable Dimensions: Width and height can be tailored to specific drainage flow requirements.
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Length | 1000 mm | Standard; other lengths available |
| Load Rating | B125 (EN 1433) | Tested to withstand 12.5 tons static load |
| Material | Fiberglass Reinforced Polymer (FRP) | UV-stabilized resin |
| Width Options | 100mm, 150mm, 200mm (customizable) | Internal width |
| Height Options | 100mm, 150mm, 200mm (customizable) | Overall height including grate |
| Weight (approx.) | 5-8 kg per unit | Depends on dimensions |
| Hydraulic Capacity | Varies by size; consult datasheet | Optimized for efficient flow |
| Operating Temperature | -40°C to +80°C | Suitable for various climates |
Why Choose Our FRP Drainage Channel?
Compared to traditional concrete channels, our FRP solution offers superior resistance to freeze-thaw cycles, chemicals, and corrosion. The lightweight nature simplifies transportation and installation – one person can easily handle a 1000mm section. The modular design with tongue-and-groove joints ensures a watertight connection without additional sealants. Additionally, the B125 rating guarantees reliable performance under typical parking lot and light roadway traffic. For heavier loads, we offer higher rating classes (e.g., C250) upon request.
The smooth inner surface of the FRP channel minimizes sediment accumulation, reducing clogging and maintenance frequency. The grates, available in various materials, are designed to be lockable for security and can be specified with different slot patterns for pedestrian safety. Our factory is equipped with advanced pultrusion and compression molding processes, ensuring consistent wall thickness and dimensional accuracy. All products undergo rigorous quality control testing, including load tests per EN 1433.
Trust & Reliability
Backed by ISO9001 and ISO9000 certification, our manufacturing facility in Hengshui, Hebei, China, employs 101-200 skilled workers. With an annual export value of US$2.5-5 million, we have successfully shipped to markets across North America, South America, Europe, Africa, Oceania, Asia, and the Middle East. Our products are exported via the ports of Tianjin and Qingdao with fast delivery times. We provide comprehensive technical support, including engineering drawings, installation guides, and after-sales service. If you are looking for a durable, cost-effective drainage solution for your parking lot or roadway project, our FRP channel is the right choice.
Contact us today for a quote or to request samples. We welcome OEM/ODM inquiries and can customize colors, dimensions, and grate types to match your specific requirements. Let our expertise help you achieve efficient, long-lasting drainage.
Frequently Asked Questions (FAQ)
-
What does B125 load rating mean?
B125 is a classification under EN 1433 for channels and gratings that can withstand a static load of 12.5 tons. It is suitable for pedestrian areas, parking lots, and light roadways. -
Can the channel be used in areas with heavy trucks?
For heavy traffic areas (e.g., main roads, industrial zones), we recommend C250 or higher classifications. Our factory can produce channels with higher load ratings upon request. -
Is the FRP material resistant to chemicals and UV?
Yes, the FRP is made with UV-stabilized resin that resists degradation from sunlight. It also withstands common chemicals like road salts, oils, and mild acids. -
How is the channel installed?

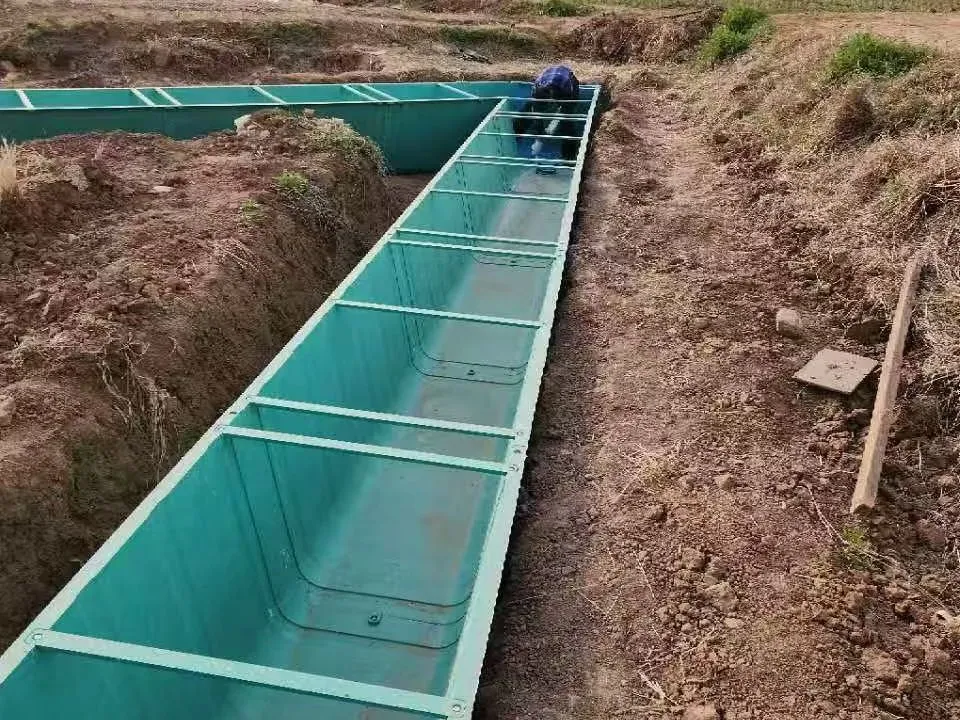

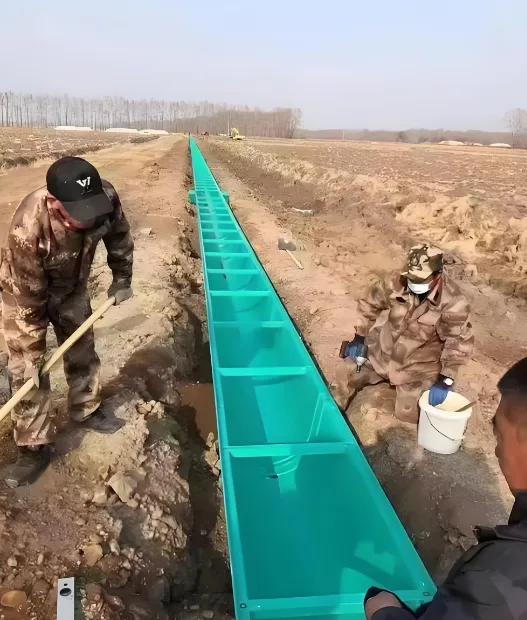

Install by excavating a trench, creating a compacted concrete base, placing the channel sections with interlocking joints, and backfilling with concrete. Detailed installation manual provided with each order. -
Can I customize the length, width, or height?
Yes, we offer custom dimensions. Standard length is 1000mm, but we can produce 500mm, 1500mm, or other lengths. Width and height can be tailored to your drainage flow requirements. -
What grate materials are available?
Options include ductile iron, galvanized steel, stainless steel, and FRP. Each has different load ratings and corrosion resistance. Choose based on traffic and environment. -
How long does the channel last?
FRP channels have a service life of 30+ years under normal conditions, as they do not corrode, spall, or degrade like concrete or metal. -
Do you provide samples?
Yes, we can send samples for evaluation. Please contact our sales team to discuss your project and sample requirements.
Note: All technical data is indicative and subject to change. Please request a formal datasheet for your specific configuration. Certifications mentioned are based on our company's quality management system; product-specific test reports available upon request.
