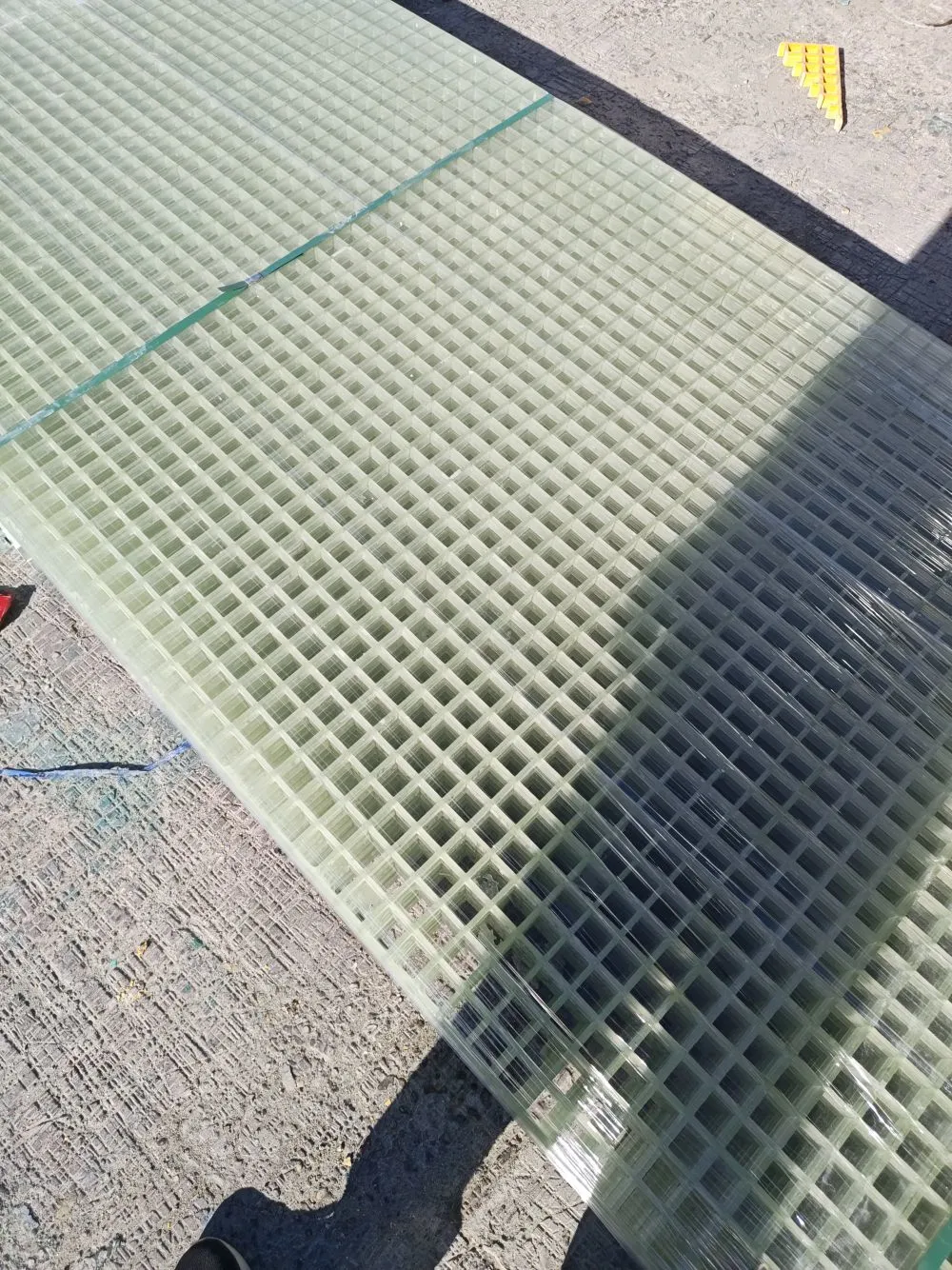

Help CenterMolded Fiberglass Grating 30% Open Area 1.5" Thick 5 Bar Load Capacity Suitable for Heavy Duty Platforms
Product Spotlights
Related Products
-
Industrial FRP Grate With 38mm Square Mesh 0.5" Thick Anti-Slip Surface Compliant With International StandardsNegotiableMOQ: 300 Square Meters -
Fiberglass Reinforced Plastic Grating for Oil & Gas Platforms Chemical Resistant Anti-Slip WalkwayNegotiableMOQ: 300 Square Meters
-
Corrosion Proof FRP Grating for Wastewater Treatment Plants Cooling Tower Walkways and Industrial FlooringNegotiableMOQ: 300 Square Meters
-
Corrosion Resistant FRP Grating 1.5" x 1.5" Grid Pattern UV Stabilized Fire Retardant Class A StandardNegotiableMOQ: 300 Square Meters
-
FRP Grating for Wastewater Treatment Plant Trench Covers 38mm Thick Anti-CorrosionNegotiableMOQ: 300 Blades
As a professional manufacturer from Hengshui Ruibin New Materials LLC, we are proud to introduce our Molded Fiberglass Grating with 30% open area, 1.5" thickness, and 5-bar load capacity, specifically designed for heavy-duty platforms. With over 5 years of manufacturing experience since 2019, our factory spans 1,000–3,000 square meters and employs over 100 skilled workers, ensuring consistent quality and reliable supply. This grating combines exceptional strength, corrosion resistance, and lightweight design, making it an ideal solution for demanding industrial environments.
Our product is engineered to meet the rigorous requirements of heavy-duty applications, offering a perfect balance between open area for drainage and load-bearing performance. The 30% open area allows efficient passage of light, air, and liquids, while the 1.5-inch thickness and 5-bar load capacity ensure it can withstand heavy equipment and foot traffic. Whether you need a durable walkway, platform, or trench cover, this grating delivers long-term value with minimal maintenance.
Key Features & Technical Specifications
- Material: High-quality fiberglass reinforced plastic (FRP) with vinyl ester or polyester resin options.
- Thickness: 1.5 inches (38.1 mm) – provides excellent rigidity and impact resistance.
- Open Area: 30% – optimized for drainage, ventilation, and light transmission.
- Load Capacity: 5-bar rating – supports heavy static and dynamic loads, suitable for industrial platforms.
- Anti-Slip Surface: Concave-convex texture ensures safe footing even in wet or oily conditions.
- Corrosion Resistance: Impervious to chemicals, saltwater, and UV radiation, ideal for harsh environments.
- Fire Retardant: Available with fire-retardant resin (optional) to meet specific safety standards.
- Non-Conductive: Electrically non-conductive and non-magnetic, safe for electrical substations and sensitive areas.
- Low Maintenance: Does not rust, rot, or require painting; easy to clean with pressure washing.
| Property | Value |
| Panel Width | Up to 4 feet (customizable) |
| Panel Length | Up to 20 feet (customizable) |
| Weight per Sq. Ft. | Approximately 4.5 lbs (2.04 kg) |
| Resin Types | Polyester, Vinyl Ester, or Phenolic (optional) |
| Color Options | Yellow, Gray, Green, or custom |
| Operating Temperature | -40°F to 180°F (-40°C to 82°C) |
Benefits for Your Business
- Increased Safety: The anti-slip surface and 30% open area reduce slip hazards and prevent water accumulation.
- Long Service Life: Fiberglass grating lasts 10–20 years in corrosive environments, outperforming steel and aluminum.
- Cost-Effective: Lower installation costs due to lightweight (1/3 the weight of steel) and no need for welding or heavy lifting equipment.
- Versatile Applications: Suitable for chemical plants, offshore platforms, water treatment facilities, food processing plants, and more.
- Easy Installation: Can be cut on-site with standard tools; available with pre-drilled holes or snap-in clips.
- Customizable: Panel dimensions, color, resin type, and load rating can be tailored to your project requirements.
Trust & Reliability
Hengshui Ruibin New Materials LLC has been a trusted manufacturer since 2019, with a factory size of 1,000–3,000 square meters and a dedicated team of 101–200 employees. Our annual export value of US$2.5 Million – US$5 Million reflects our commitment to global supply chains. We hold ISO9001 and ISO9000 certifications for our quality management systems, ensuring every product meets rigorous standards. Our main markets span North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East, demonstrating our ability to serve diverse industrial needs. Each grating panel undergoes strict quality control – from raw material inspection to final load testing – guaranteeing consistent performance. We ship from the ports of Tianjin and Qingdao, providing reliable logistics to customers worldwide.
By choosing our Molded Fiberglass Grating, you invest in a product that combines proven engineering, manufacturer expertise, and exceptional after-sales support. We invite you to request a sample or discuss your specific project requirements. Our team is ready to provide technical drawings, load calculations, and customized solutions to ensure your success. Contact us today for a quote or more information.
Frequently Asked Questions (FAQ)
-
What is the load capacity of this grating?
The 5-bar load capacity indicates it can support heavy static loads typical for industrial platforms. For specific load ratings (e.g., uniform load, concentrated load), please refer to our load tables or contact our technical team. -
Can this grating be used outdoors?
Yes, it is UV-resistant and suitable for outdoor applications. For extreme UV exposure, we recommend using a UV-stabilized resin or a gel coat finish, which can be customized. -
What colors are available?
Standard colors are yellow, gray, and green. Custom colors are available upon request with a minimum order quantity. -
How is the grating installed?
Installation is simple using clips, bolts, or welding (for steel structures). Our panels can be cut on-site with a diamond saw, and we provide installation guides and accessories. -
Is this product fire retardant?
Standard polyester resin has limited fire resistance. We offer fire-retardant vinyl ester or phenolic resin options that meet ASTM E84 Class I or II, depending on the grade. -
What is the typical lead time?
For standard sizes and colors, lead time is 10–15 working days. Custom orders may require 20–30 working days. We can expedite for urgent projects subject to availability. -
Do you offer cut-to-size panels?
Yes, we can cut panels to your exact dimensions. Please provide a drawing or specify the length, width, and any cutouts needed. -
How does the 30% open area affect strength?
The open area is achieved by the molded grid pattern, which maintains structural integrity while allowing drainage. The 1.5-inch thickness and 5-bar rating ensure strength is not compromised.
