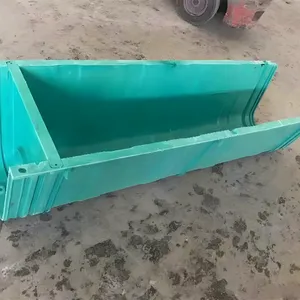

Help Center50kN Load Capacity FRP Drainage Channel With 5mm Wall Thickness
Product Spotlights
Related Products
-
Customizable FRP Drainage Channel With On-Site Installation Guidance ServiceNegotiableMOQ: 300 Meters -
Load Class D400 FRP Drainage Channel 150mm Width for Heavy Traffic AreasNegotiableMOQ: 300 Meters
-
FRP Drainage Channel for Chemical Plant Floor Drainage With Corrosion ResistanceNegotiableMOQ: 300 Meters
-
Molded Fiberglass Drainage Channel 400mm x 2000mm, Integral Slope 1.5%, Resin: Vinyl EsterNegotiableMOQ: 300 Meters
-
Fiberglass Drainage Channel 150mm Width x 1000mm Length, Load Class C250, ISO-Phthalic Polyester ResinNegotiableMOQ: 300 Meters
As a professional manufacturer based in Hengshui, Hebei, China, Hengshui Ruibin New Materials LLC is proud to present our 50kN Load Capacity FRP Drainage Channel with 5mm Wall Thickness. This high-performance drainage solution is engineered to withstand heavy traffic loads while providing long-lasting corrosion resistance. Our FRP drainage channels are manufactured under strict ISO9001 quality management systems, ensuring consistent quality and reliable performance for demanding infrastructure projects worldwide.
The product combines superior mechanical strength with lightweight properties, making installation faster and more cost-effective compared to traditional concrete or metal channels. The 5mm wall thickness ensures excellent structural integrity, while the 50kN load capacity makes it suitable for applications such as highways, parking lots, airports, and industrial zones. Each channel is designed to effectively manage surface water runoff, preventing flooding and erosion.
Key Features & Technical Specifications
- High Load Capacity: Rated for 50kN (equivalent to C250 load class), suitable for vehicle traffic and heavy machinery.
- Durable Construction: 5mm uniform wall thickness provides excellent impact resistance and long service life.
- Corrosion Resistant: FRP material is immune to rust, chemicals, and UV degradation, ideal for harsh environments.
- Lightweight: Approximately 70% lighter than concrete, reducing transportation and installation costs.
- Versatile Sizing: Available in standard lengths of 1000mm and 2000mm, with customizable widths and heights from 100mm to 200mm.
- Anti-Slip Surface: Optional textured top surface for enhanced safety in pedestrian areas.
- Easy Installation: Modular design with interlocking joints for quick assembly and alignment.
- Low Maintenance: Smooth inner surface minimizes debris accumulation and simplifies cleaning.
Technical Parameters (Standard Model)
| Parameter | Value |
| Load Capacity | 50 kN (C250) |
| Wall Thickness | 5 mm |
| Standard Length | 1000 mm / 2000 mm |
| Width Options | 100 mm, 150 mm, 200 mm (custom) |
| Height Options | 100 mm, 150 mm, 200 mm (custom) |
| Material Composition | Glass fiber + polyester resin |
| Color | Gray / Black (custom colors available) |
| Surface Finish | Smooth or anti-slip texture |
| Operating Temperature | -40°C to +80°C |
Advantages Over Traditional Materials
Compared to concrete drainage channels, our FRP product offers superior crack resistance and no spalling under freeze-thaw cycles. It is also non-conductive and non-magnetic, making it safe for use near electrical installations. The smooth inner bore reduces flow resistance, increasing hydraulic efficiency by up to 15% compared to rough concrete surfaces. For metal channels, FRP eliminates corrosion issues entirely, saving on replacement costs over the product's lifespan.
Applications
- Highways & Roads: Efficient water drainage for asphalt and concrete surfaces.
- Parking Lots: Handles vehicle loads without deformation.
- Airports: Suitable for runway and apron drainage systems.
- Industrial Facilities: Resistant to chemicals and heavy machinery traffic.
- Sports Fields: Lightweight and easy to install in turf areas.
- Residential & Commercial: Landscaping and pavement drainage.
Why Choose Hengshui Ruibin New Materials LLC?
Since our establishment in 2019, we have grown into a reliable manufacturer with a factory spanning 1,000–3,000 square meters and a dedicated workforce of 101–200 employees. Our annual export value exceeds US$2.5 million, serving markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. We are proud to hold ISO9001 and ISO9000 certifications, reflecting our commitment to quality. Our products are shipped from major ports in Tianjin and Qingdao, ensuring efficient logistics to global customers.
We offer customization services for dimensions, colors, and special load requirements. Every batch undergoes rigorous testing for load capacity, dimensional accuracy, and material strength. Our team of experienced engineers and technicians is ready to support your project from design to installation.
Contact us today to request a quote, sample, or technical consultation. With our competitive pricing, fast delivery, and after-sales support, Hengshui Ruibin is your trusted partner for high-performance FRP drainage solutions.
Frequently Asked Questions (FAQ)
- What is the exact load capacity of this drainage channel? The FRP drainage channel is rated for 50kN, which corresponds to the C250 load class according to EN 1433 standards. It can withstand vehicles with a gross weight of up to 25 tons under normal conditions.
- Can the channel be cut to custom lengths on-site? Yes, the FRP material can be easily cut using standard tools like a diamond blade saw or angle grinder. However, we recommend ordering custom lengths from our factory to ensure proper fit and avoid unnecessary waste.
- Is the product UV resistant? Yes, the resin system used includes UV stabilizers, making the channel suitable for outdoor applications without significant degradation. For extended exposure, optional gel coat colors are available.
- How do I connect multiple channels together? Each channel section features a tongue-and-groove joint design with a sealing gasket. Simply align the ends and apply a compatible adhesive (provided upon request) for a watertight connection.
- What is the weight per meter of the channel? The weight depends on the specific dimensions. For a standard 100mm wide x 100mm high channel with 5mm wall thickness, the weight is approximately 8 kg per meter. Larger sizes weigh proportionally more.

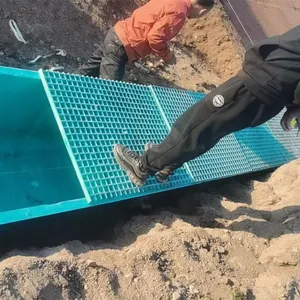

- Does the channel come with a grating or cover? The standard product is a channel body only. We offer various grating options (e.g., galvanized steel, stainless steel, or FRP grids) that can be ordered separately. Please contact our sales team for compatibility.
- What is the minimum order quantity (MOQ)? For standard sizes, the MOQ is 100 meters. For custom sizes, please inquire with our sales team. We can accommodate smaller quantities for sample orders.
- How long is the warranty period? Our standard warranty is 2 years from the date of shipment against manufacturing defects. The product's design life under normal conditions is 20+ years.
*All specifications are subject to change without notice. Please confirm technical details with our engineering team before ordering.
