Help CenterHaoqing Environmental Protection Frp Sewage Tank Cover, Arch-shaped Gas Collection Hood, Sewage Tank Capping, Corrosion-resistant, Customizable Sizes
Related Products
-
Haoqing Environmental Protection Fiberglass Tanks 1 - 300m³ Vertical and Horizontal Wound Molding Chemical Anti - Corrosion Hydrochloric Acid and Sulfuric Acid Tanks Stirring Tanks Fermentation Tanks Wastewater Treatment Tanks Nitrogen - Sealed Water TankNegotiableMOQ: 0 Unit -
Haoqing Environmental Protection Fiberglass Reinforced Plastic Cable Supports, Molded, Combined, With Screws and Embedded Parts, Complete Specifications, Insulating and Corrosion-resistant, for TunnelsUS$ 1.54 - 2.31MOQ: 1 Piece
-
Haoqing Environmental Protection Frp Cable Trays: Trough Type, Ladder Type, Tray Type, Polymer, Polyurethane, Corrosion-resistantUS$ 1.54 - 2.31MOQ: 1 Meter
-
Haoqing Hebei Frp Biological Deodorization Box, 95%-99% Deodorization Efficiency, Plc Automatic Control, Biological Filter, Deodorization BoxNegotiableMOQ: 0 Set
-
Haoqing Hebei Hbps Frp Integrated Pre - Installed Lifting Pumping Station Dn1200 - Dn4200 50 - 50000m³/dUS$ 2000 - 2307.69MOQ: 1 Unit
Hengshui Haoqing Environmental Protection Equipment Co., Ltd. (Brand: Haoqing), a source factory in Zaoqiang, Hebei, the hometown of fiberglass in China, specializes in sewage tank enclosure and odor collection, with a monthly production of 3000㎡ of fiberglass covers. 【Product Features】 - Corrosion-resistant: Adapt to the corrosive environment around the sewage tank, such as hydrogen sulfide and ammonia, with a design service life ≥ 15 years. - Lightweight and high-strength: A single piece can be designed with a large span, reducing supports and facilitating the maintenance of tank equipment. - Good sealing performance: The flange surface is sealed with rubber strips, and the odor collection rate meets the VOCs limit in GB 37822. - Safe: Non-conductive and non-heat-conductive, with a non-slip surface, suitable for personnel inspection. 【Specifications】 Form: Arch / Flat / Gas collection hood. Span: Single span 1 - 12m (multiple spans can be combined). Plate thickness: Calculated according to the load (usually 8 - 20mm). Load grade: Pedestrian / Vehicle / Equipment maintenance. Sealing: Flange surface + Rubber strip. Execution standards: GB 50009 (Load), GB 37822 (VOCs). 【Application Scope】 Covering of aeration tanks and secondary sedimentation tanks in sewage treatment plants, enclosure of chemical sewage tanks, and odor collection in landfill leachate tanks. 【Full-chain matching】 The interfaces with biological deodorization boxes and purification towers are uniformly designed to avoid misalignment and aging.

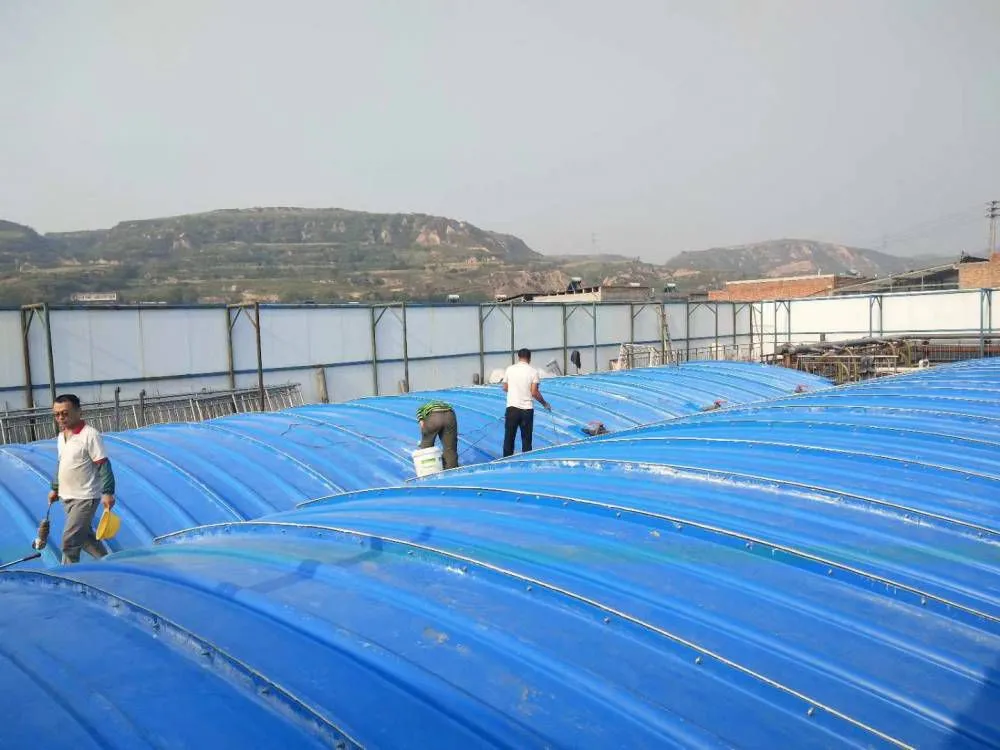

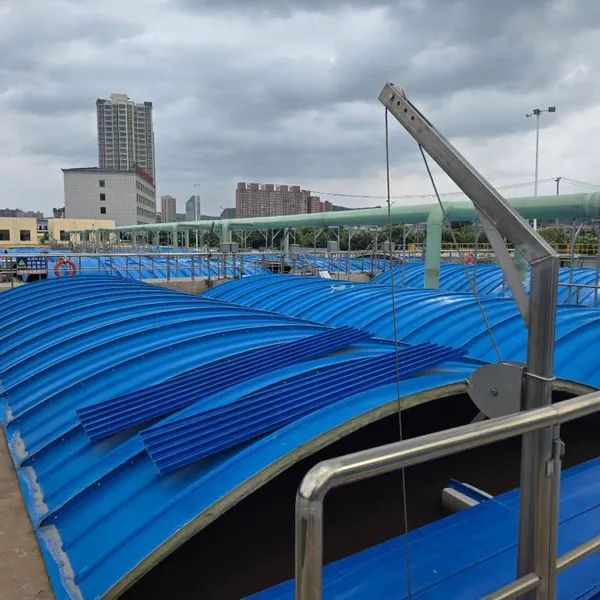

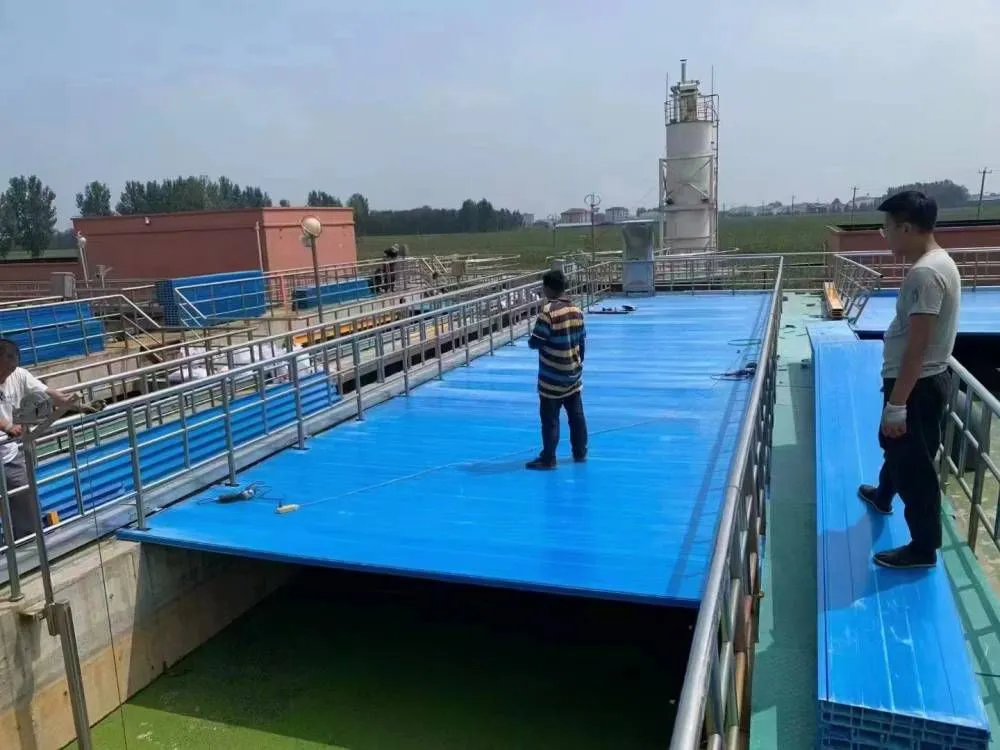

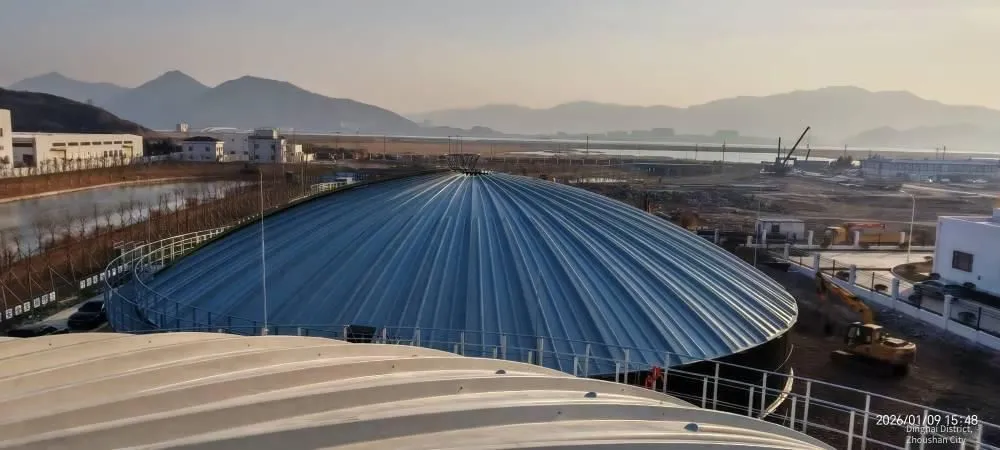

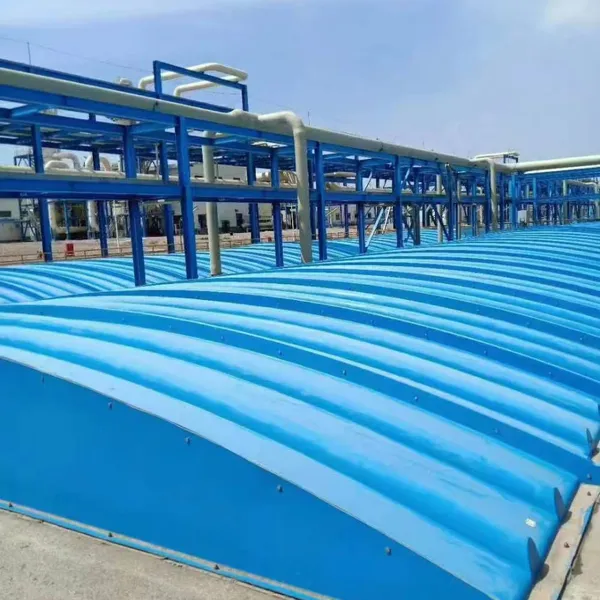

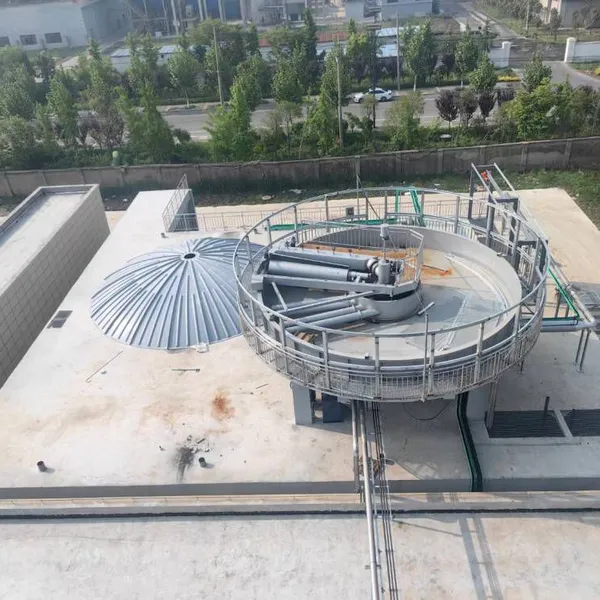

The Haoqing fiberglass sewage tank covers are used for the enclosure and odor collection of sewage tanks in sewage treatment plants and chemical enterprises. The product forms include arch covers, flat covers, and gas collection hoods, and can be customized according to the tank span and load.
【Product Features】
Corrosion-resistant: Adapt to the corrosive environment around the sewage tank, such as hydrogen sulfide and ammonia, with a service life ≥ 15 years.
Lightweight and high-strength: A single piece can be designed with a large span, reducing supports and facilitating the maintenance of tank equipment.
Good sealing performance: The flange surface is sealed with rubber strips, and the collection rate meets the VOCs limit requirements in GB 37822.
Safe: Non-conductive, non-heat-conductive, with a non-slip surface, suitable for personnel inspection.
【Specifications】
Item |
Parameter |
Form |
Arch / Flat / Gas collection hood |
Span |
Single span 1 - 12m (multiple spans can be combined) |
Plate thickness |
Calculated according to the load (usually 8 - 20mm) |
Load grade |
Pedestrian / Vehicle / Equipment maintenance |
Sealing |
Flange face + Rubber strip |
Implementation standard |
GB 50009 (Load), GB 37822 (VOCs) |
【Application scope】Covering of aeration tanks/secondary sedimentation tanks in sewage treatment plants, enclosure of chemical sewage tanks, odor collection of landfill leachate tanks.
Source factory, supporting the integrated supporting design of the four - piece set of "Cover plate + Collection + Conveyance + Purification"
