Help CenterFactory Sell 80 Watt CO2 Laser Power Supply/High Voltage CO2 Laser PSU/CO2 Tube Driving Power Supply
Product Spotlights
1-Year Warranty Coverage: Comprehensive 1-year warranty for all mechanical and electrical defects.
Customized Color Options: Available in Black color with flexible customization for other requirements.
Related Products
-
150W DC/AC Dual-Input Portable Laser Power Supply for Laser Weeder Zs-L150W-YNegotiableMOQ: 20 Units -
DC250-350V 300W Laser Power Supply for Combined Beam Laser Generator on Mobile Laser EquipmentNegotiableMOQ: 20 Units
-
High Power 600W Folded CO2 Laser Tube for CO2 Laser Knife CuttingNegotiableMOQ: 20 Units
-
1064nm 600W 4PCS Folded CO2 Laser Tube With Metal Case for Laser Die CuttingNegotiableMOQ: 20 Units
-
Reci W1 1110mm 70-90 Watt CO2 Laser TubeNegotiableMOQ: 20 Units
Model NO. |
ZS-80W CO2 laser power supply |
Type |
Laser Power Supply |
Input Voltage |
110V/220V 50Hz/60Hz |
Condition |
New |
Silicone Tube |
Optional |
Application Industry |
Advertising, Clothing, Crafts, Packaging |
Output Current Adjust |
Potentiometer |
Installed Machine |
6040/6090/1390 CO2 Laser Engraver |
Air Cooling Fan |
1PCS |
Transport Package |
Carton |
Trademark |
RUBYLASER |
HS Code |
8504401990 |
Standard Component |
Standard Component |
Color |
Black |
Application |
CO2 Laser Glass Tube 80W |
High Voltage Line |
3 Meter or Longer |

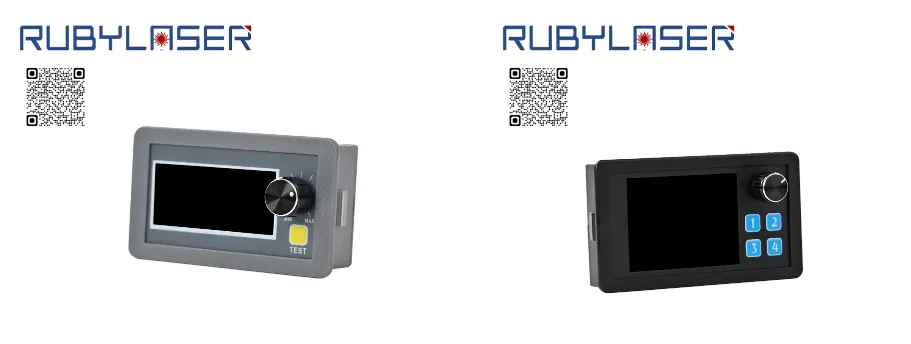

LCD Display Module |
Optional |
Input Control Signal |
H/L/P/G/in/5V/in/P |
Auto Ault Diagnosis |
Optional |
Flyback Quantity |
2PCS |
Open/Short Circuit Protect |
Yes |
Specification |
80W |
Origin |
Shandong |
Production Capacity |
100000PCS/Year |

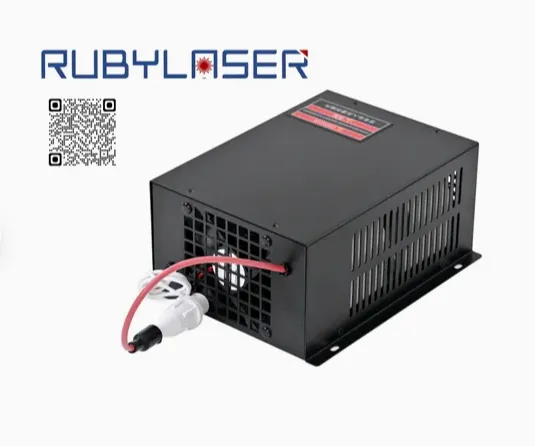

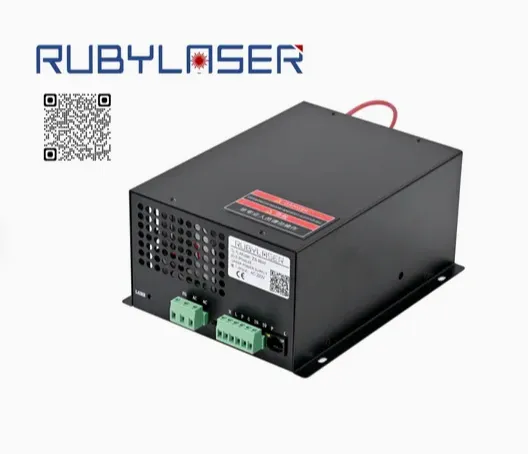

RUBYLASER 80W LASER POWER SUPPLY
1.Input analog signal(0~5V) or PWM is used to control the output laser power on this 80Watt laser power supplies.

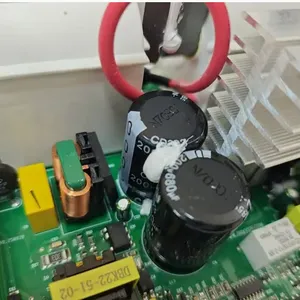

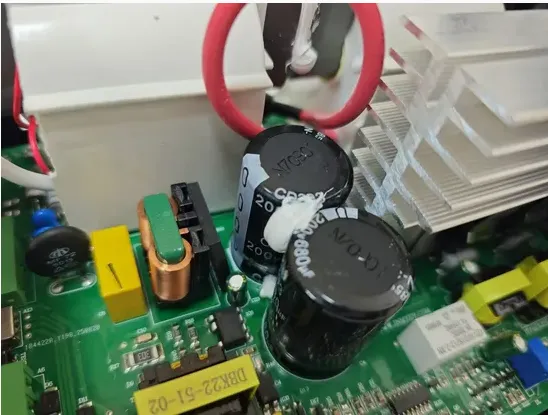

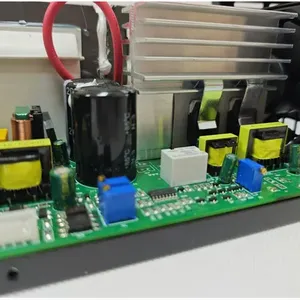

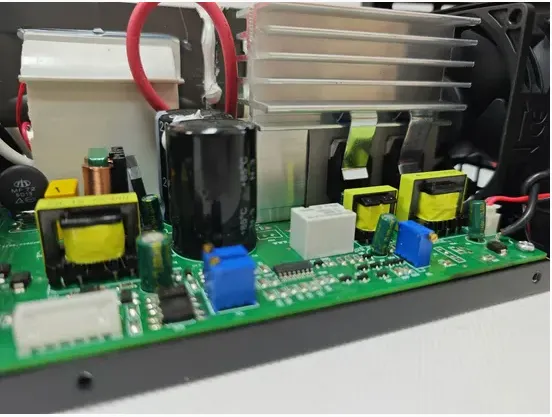

2. This 80Watt laser power supplies is used to drive most brand 1200-1450mm CO2 laser tube. The two fans laser power supplies use zero-current half-bridge soft-switch circuit to make sure the CO2 laser power supplies have high efficiency.
3.This two fans laser power supplies has RED TEST button to easily figure out CO2 power supplies or CO2 laser tube's failure. It is very easy and simple to remove trouble.
Specification | ||
Input |
Input voltage |
AC220V±10% |
AC frequency |
47~440HZ |
|
Maximum input power |
750W |
|
Maximum input current |
3.4A |
|
Output |
Maximum output voltage |
32KV |
Maximum output current |
33mA |
|
Efficiency |
More than 90% (Full load) |
|
Response speed |
Less than 1ms |
|
Control interface |

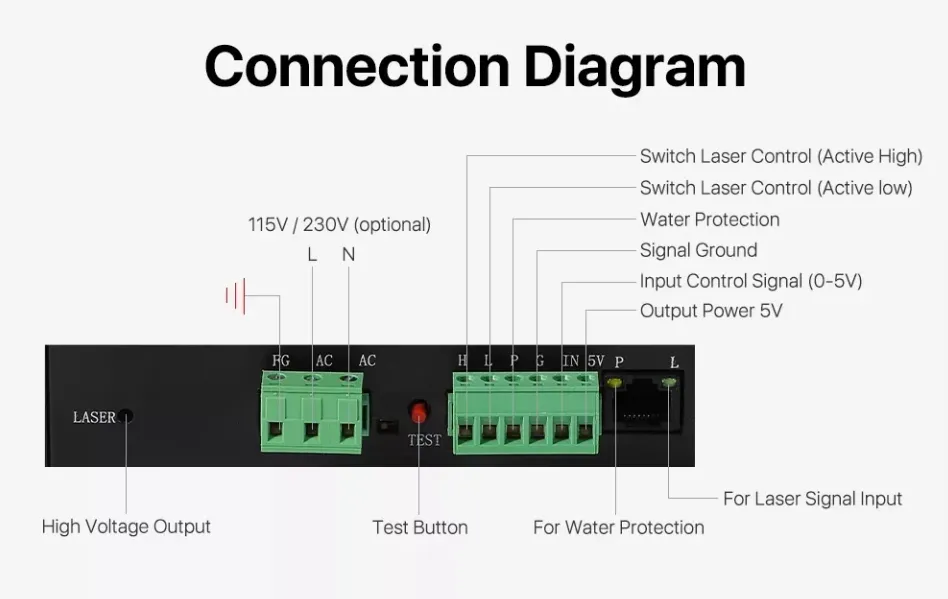

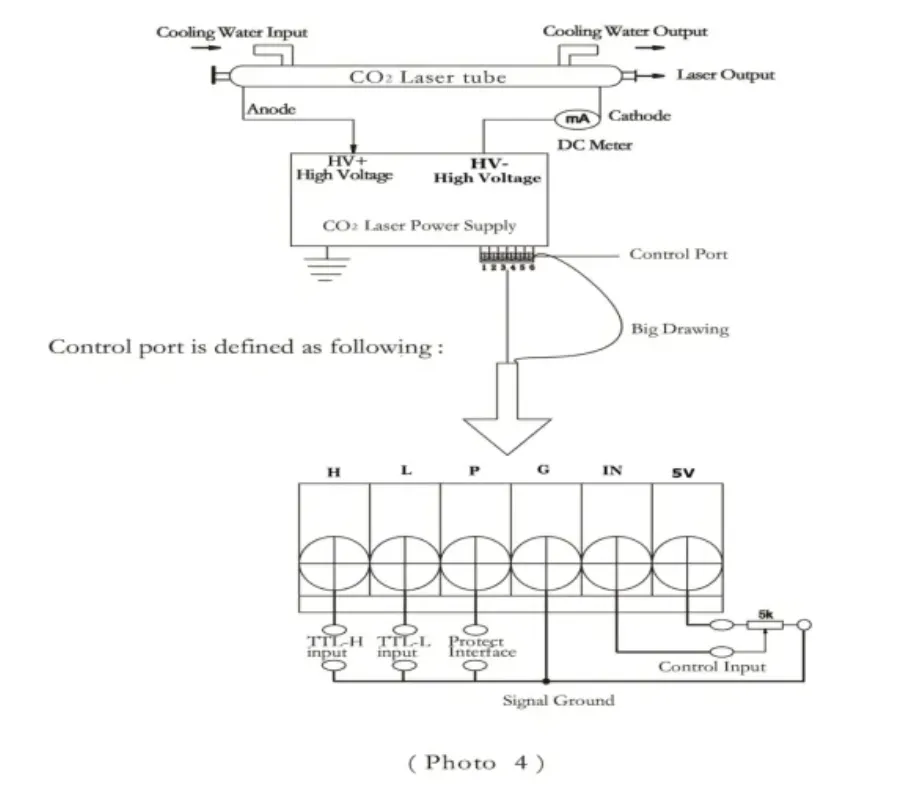

TTL multilevel switching control, effective level can be high and low selection (see control wining diagram) |
|
Insulation |
input-output |
AC 1500V 1 minutes not more than 10mA |
input-shell |
AC 1500V 1 minutes not more than10mA |
|
Output-shell |
Connection |
|
Open Circuit Protection |
Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc) |
|
Environmental Requested |
Working temperature |
-10ºC~50ºC |
Relative Humidity |
Maximum 85%RH (non-condensing) |
|
Dimensions (LxWxH) |
198mmx142mmx90mm |
|
