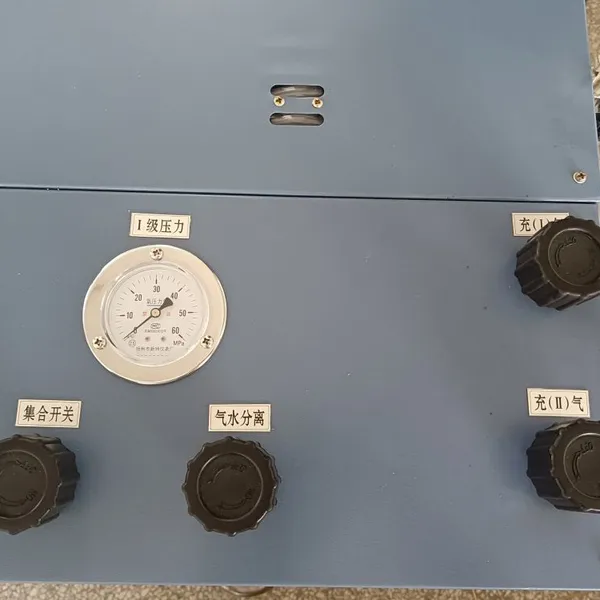

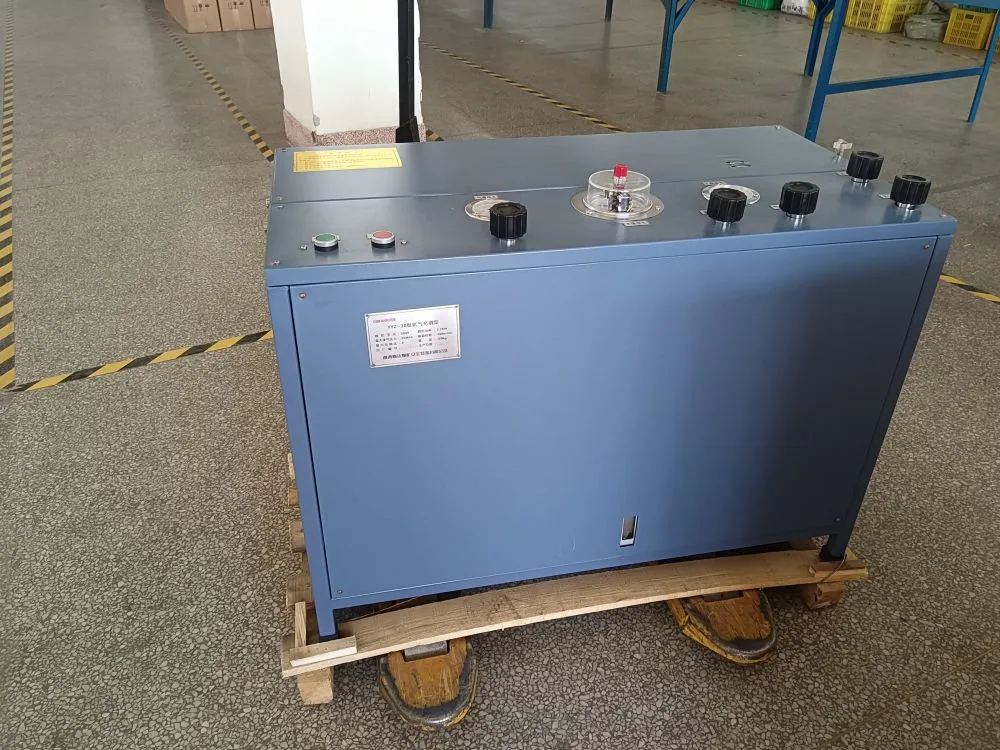

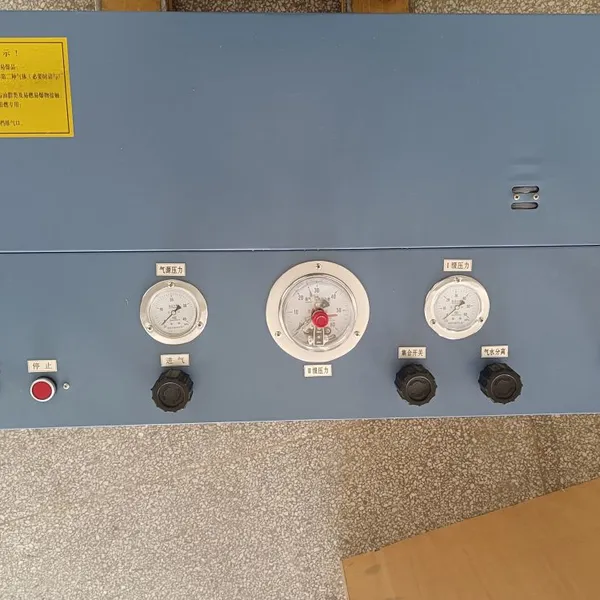

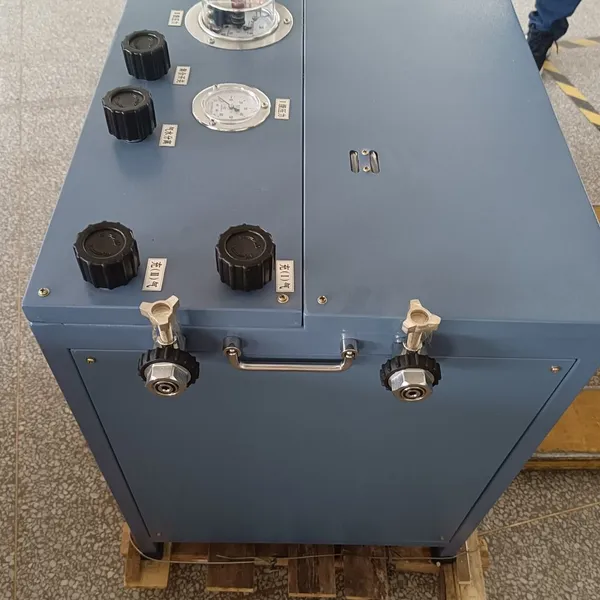

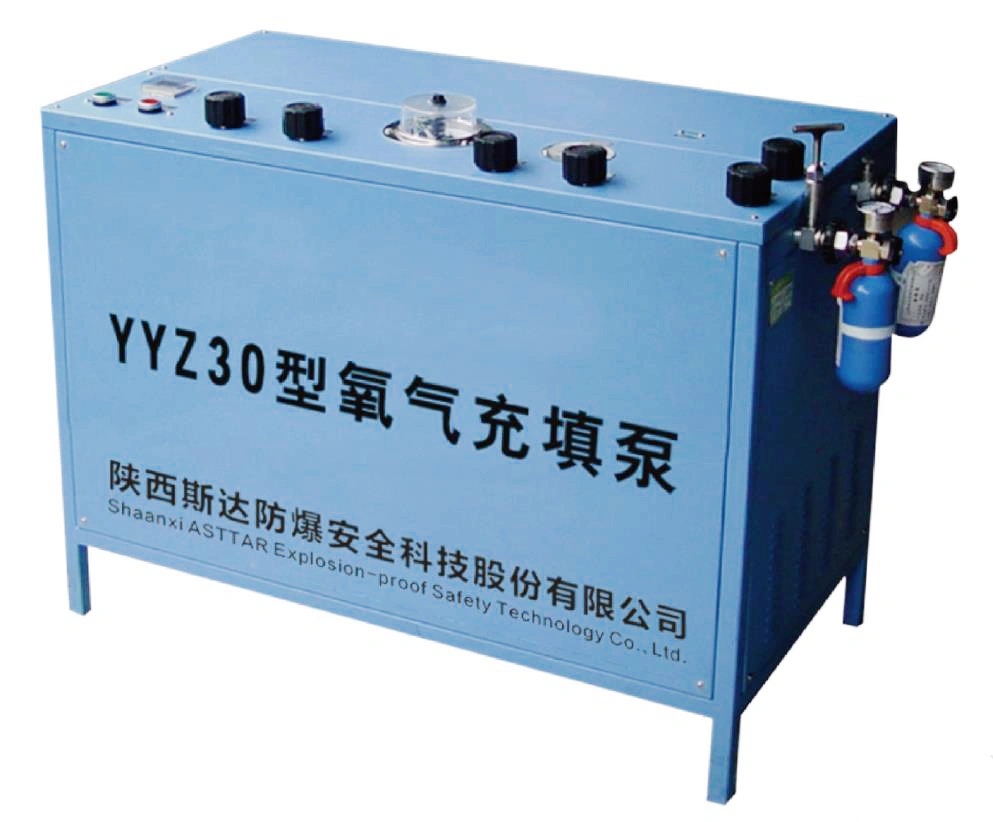

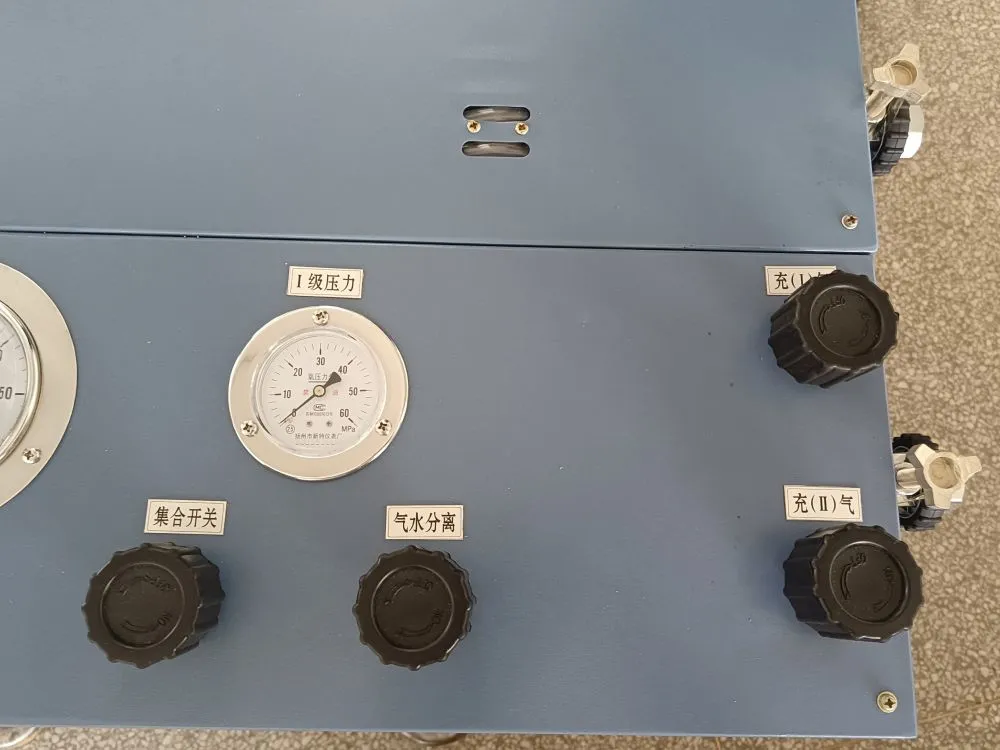

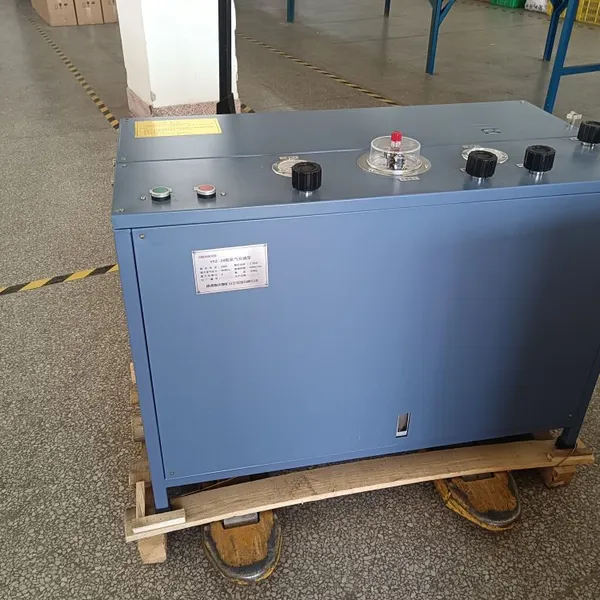

YYZ30 Oxygen Filling Pump
Application
It is an oxygen filling equipment that step up oxygen pressure from source bottle to another gas bottle, let the oxygen pressure of this gas bottle achieve the needed pressure. It is used for pumping oxygen, nitrogen and carbon dioxide from source gas bottle and filling in the gas bottle which is waiting for inflating.
Main specification
Item |
Technical parameters |
||
Max. exhaust pressure |
30 MPa |
||
Exhaust volume while pumping |
3 L/min |
||
Grade |
2 |
||
Max. compression rate |
8 |
||
Revolution of crankshaft |
440 n/min |
||
Plunger stroke |
30 mm |
||
Plunger diameter |
Grade1 ф18mm |
Grade2 ф12mm |
|
|
Parameters of motor |
Voltage |
380 V |
|
Power |
2.2 kW |
||
Rotation rate |
1430 n/min |
||
Dimension |
940× 500× 700 |
||
Weight |
120 kg |
||
|
Operating environment |
Temperature: (10- 40)℃ Relative humidity: ≤98% Atmospheric pressure: (86-106) kPa No open flames and oil in the environment! |
||
