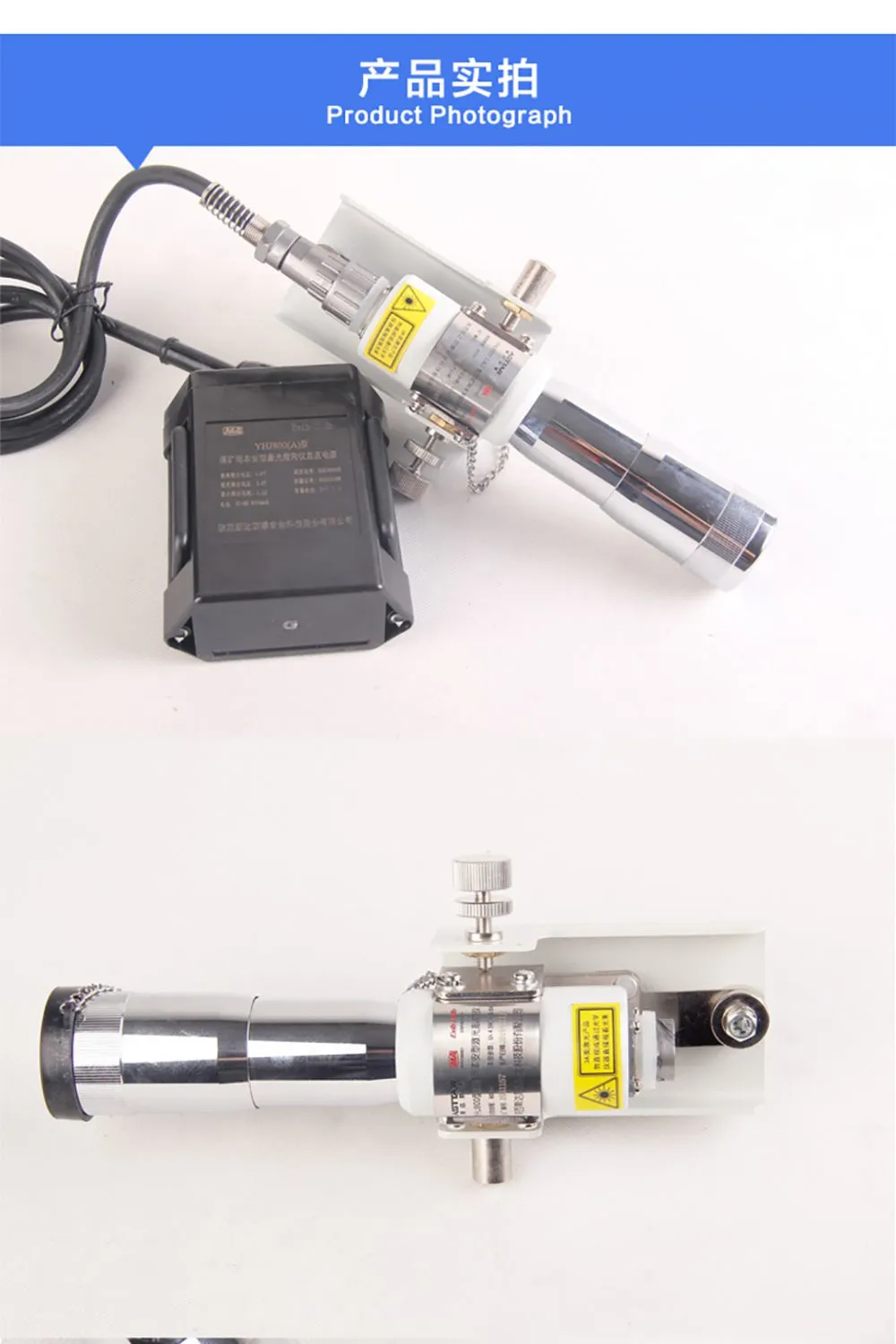

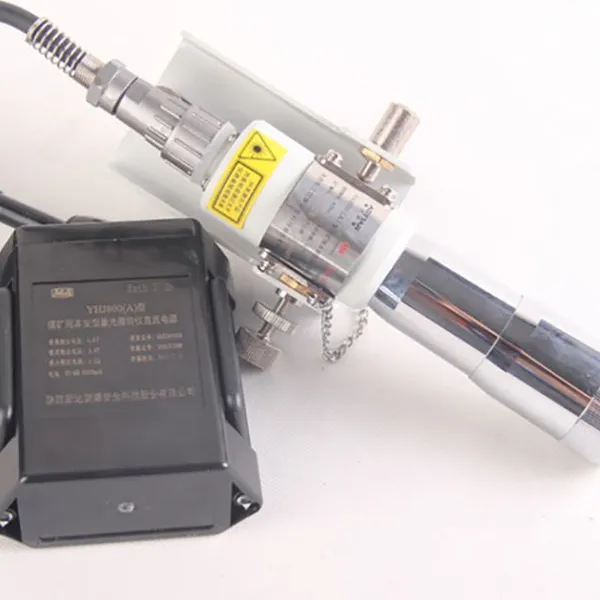

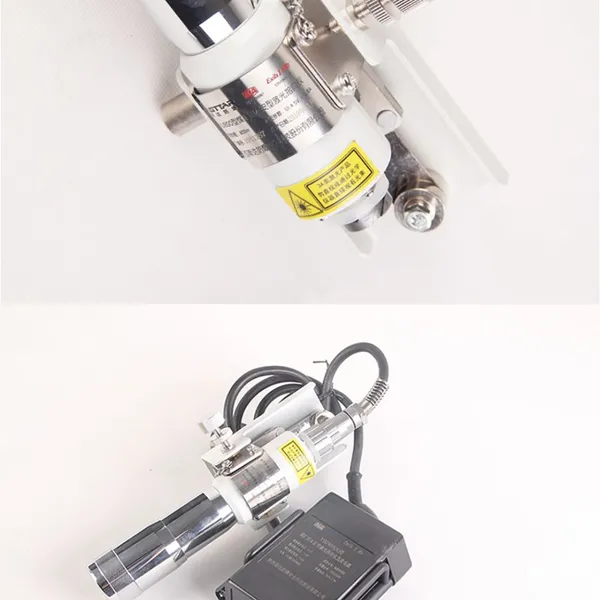

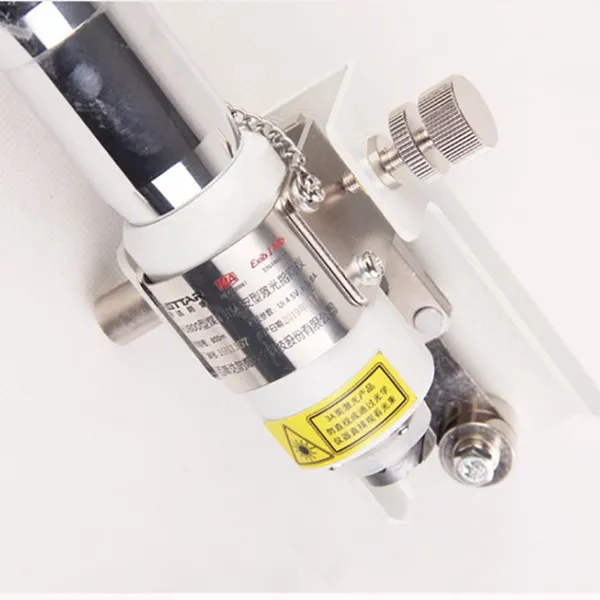

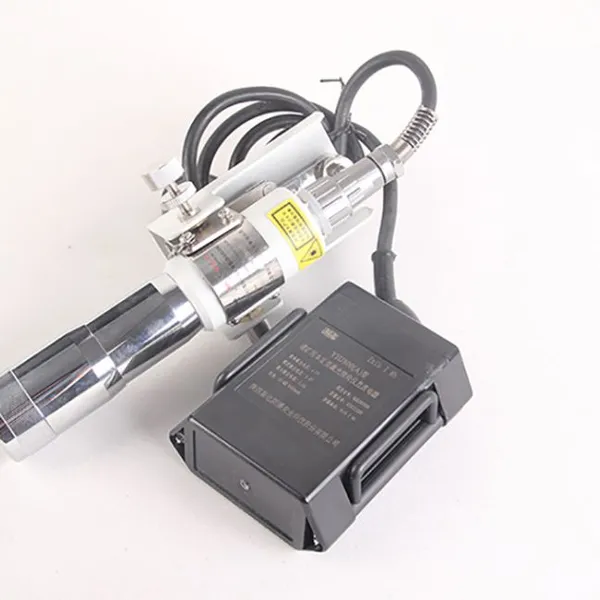

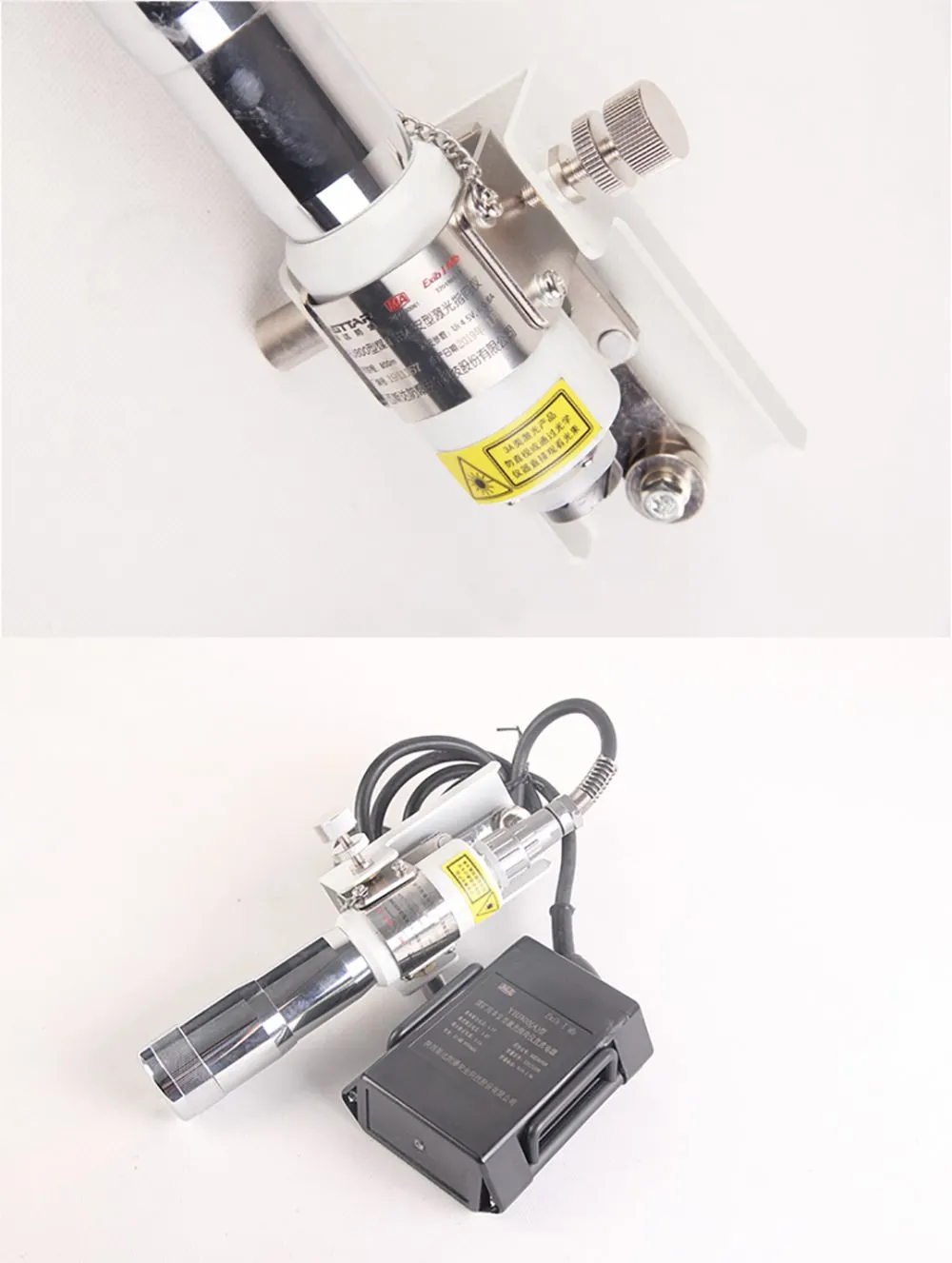

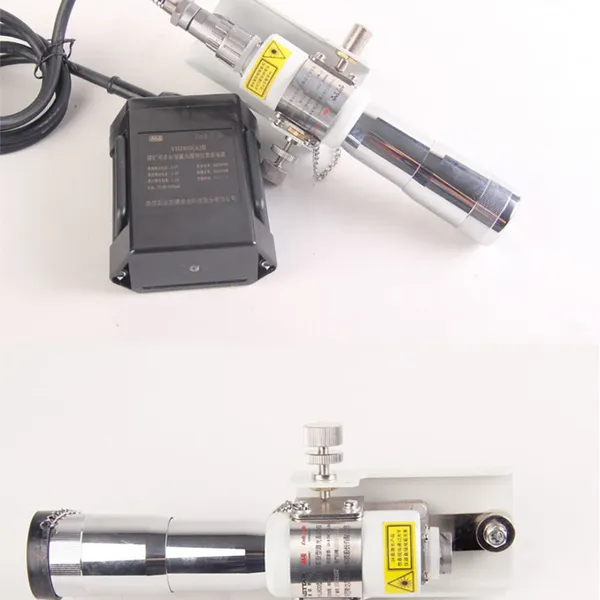

YHJ800(A) Coal mine intrinsically safe laser orientation equipment
Main features
• Adopting semiconductor laser, mobile power supply.
• It has the functions and characteristics of low power consumption, long life, good beam quality, overcurrent, overvoltage, short circuit protection, four-direction angle fine-tuning, simple operation, and easy movement.
Technical specification
Item |
Technical specification |
Power supply mode |
Battery pack power supply |
Supply voltage |
DC3.7V |
Effective range |
≥800m |
Laser output power |
≥1mW |
Spot diameter |
≤70 mm (at a distance of 800m) |
Laser wavelength |
635(red light)nm |
Horizontal adjustment range of laser beam |
≥2.5° |
Vertical adjustment range of laser beam |
≥2.5° |
Explosion-proof type |
Exib I Mb |
Weight |
3Kg |
Standard configuration |
Intrinsically safe DC power supply 2 sets, charger, mounting rod |
