Product Introduction

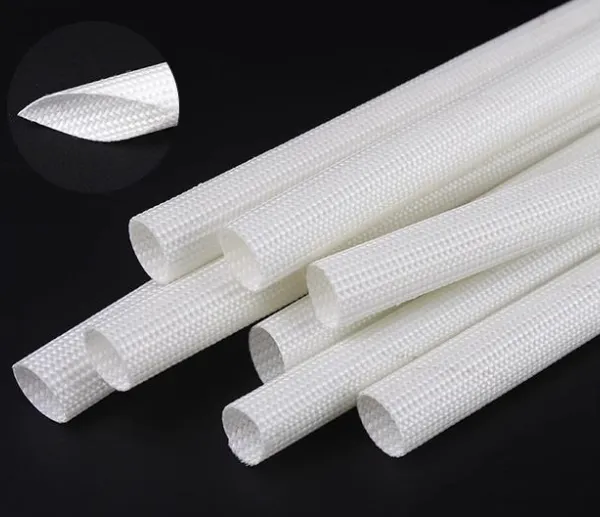

Silicone coated fiberglass sleeving is braided with E‑glass non‑alkali fiberglass yarn, then coated with silicone resin and high‑temperature curedMade-in-Ch.... It features H‑class heat resistance, excellent electrical insulation, self‑extinguishing flame retardancy and good flexibility. Widely used for wire and harness insulation protection under high‑temperature conditions for motors, transformers, home appliances, heating equipment and new‑energy industries.
Features
High temperature resistance: continuous operating temperature from ‑60℃ to 200℃, H‑class insulation grade, stable performance under long‑term high‑heat environment.
Superior dielectric strength: breakdown voltage from 1500V to 7000V AC for reliable electrical insulation.
Flame retardant & self‑extinguishing, prevents fire spread for equipment safety.
Good flexibility, easy wire threading, resistant to bending and tearing.
Aging, oil and weak chemical resistance, long service life for harsh working conditions.
Complete size range from Φ2mm‑Φ50mm. Custom cut length and special colors available. Factory direct supply for bulk orders.
RoHS compliant, eco‑friendly material.
Technical Specifications
| Item | Specification |
|---|---|
| Material | E‑glass braided fiberglass with silicone resin coating |
| Working Temperature | ‑60℃ ~ +200℃ |
| Breakdown Voltage | 1500V /2500V /4000V /7000V AC |
| Flammability | Flame retardant, self‑extinguishing |
| Color | White, red, black, custom colors acceptable |
| Inner Diameter | Φ2‑Φ50mm, custom sizes available |
Applications
Ideal insulation protection for motor, transformer, heating devices, household appliances, new‑energy wiring harness, rail transit and electronic instruments. Protect wires and cables against high temperature, friction and abrasion, extend equipment service life.
Order Note
Standard packing in rolls, custom cut‑to‑length service available.
Wall thickness varies by voltage rating. Please confirm inner diameter, temperature and voltage requirements before ordering.
Samples are available for testing, OEM & ODM acceptable.
