Hengshui Ruibin New Materials LLC is proud to offer our premium FRP U-Shaped and C-Shaped Fiberglass Drainage Channels, engineered for versatile applications across multiple industries. As a dedicated manufacturer with over 5 years of experience (since 2019), we combine advanced pultrusion technology with high-quality fiberglass to deliver drainage solutions that are lightweight yet exceptionally strong. Our channels are designed to handle everything from pedestrian walkways to heavy-load industrial areas, providing reliable water management without corrosion or rust. Whether you need a U-shaped channel for efficient water flow or a C-shaped profile for structural drainage, our products meet the demands of modern construction projects.
Our FRP drainage channels are manufactured under strict ISO9001 quality management systems, ensuring consistent performance and durability. They are ideal for use in parking lots, airports, stadiums, factories, and agricultural facilities. The inherent corrosion resistance of fiberglass makes these channels perfect for chemical plants, wastewater treatment facilities, and coastal environments where metal alternatives would fail. Additionally, the non-conductive nature of FRP adds safety in electrical-sensitive areas.
Key Features & Benefits
Lightweight Construction: Up to 75% lighter than traditional concrete or steel channels, reducing shipping costs and installation labor.
Corrosion & Chemical Resistance: Withstands acids, alkalis, salts, and UV exposure without degradation.
High Load Capacity: Available in load classes from A15 (pedestrian) to F900 (heavy aircraft) per EN 1433 standards.

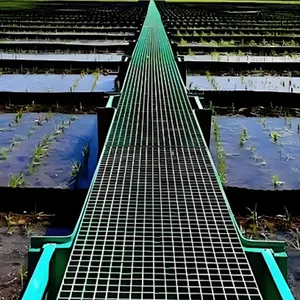

Slip-Resistant Surface: Optional textured grating or covers for safety in wet conditions.
Easy Installation: Interlocking joint design allows quick assembly without specialized tools.
Low Maintenance: Smooth inner surface minimizes debris buildup; no need for painting or coating.
Eco-Friendly: 100% recyclable materials, contributing to green building certifications.
Technical Specifications
| Parameter | U-Shape | C-Shape |
|---|---|---|
| Material | Fiberglass + Polyester/Vinyl Ester Resin | Fiberglass + Polyester/Vinyl Ester Resin |
| Available Width (mm) | 100, 150, 200, 300 | 100, 150, 200, 300 |
| Length per Section | 1m, 2m, 3m (customizable) | 1m, 2m, 3m (customizable) |
| Load Class (EN 1433) | A15, B125, C250, D400, E600, F900 | A15, B125, C250, D400 |
| Weight (per 2m section, 200mm width) | ~8 kg | ~6 kg |
| Operating Temperature | -40°C to +80°C | -40°C to +80°C |
| UV Resistance | Excellent (with UV stabilizer) | Excellent (with UV stabilizer) |
Common Applications

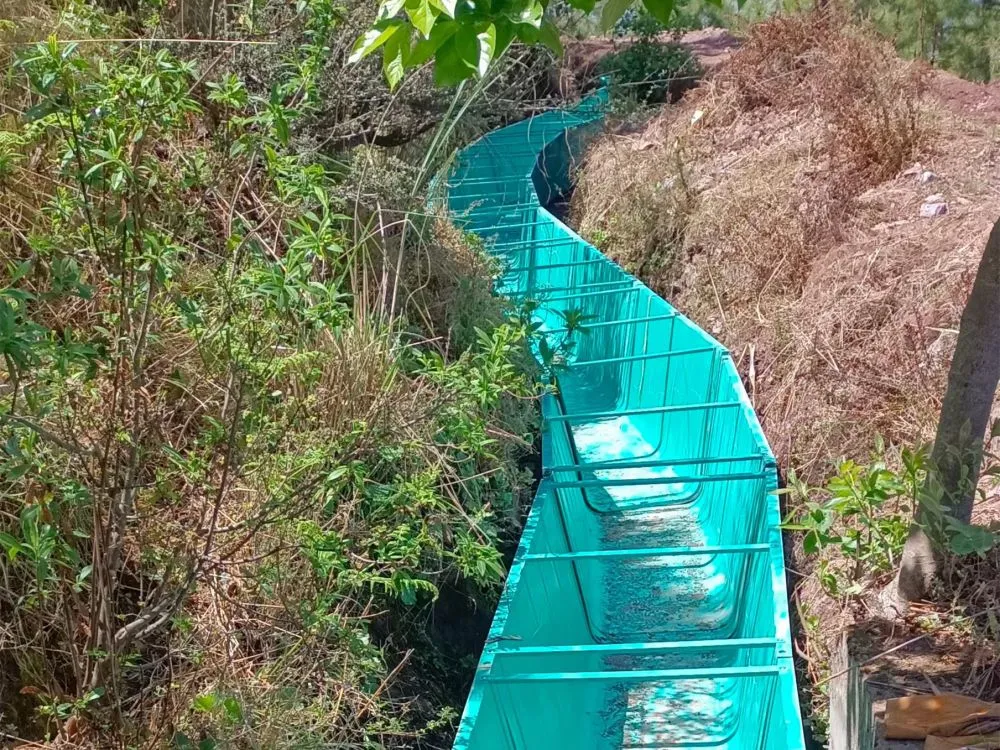

Parking Lots & Driveways: Efficient surface water drainage to prevent flooding.
Airports & Seaports: Heavy-duty channels for runways and cargo areas.
Industrial Plants: Chemical-resistant channels for aggressive effluent.
Sports Facilities: Low-profile channels for stadiums and running tracks.

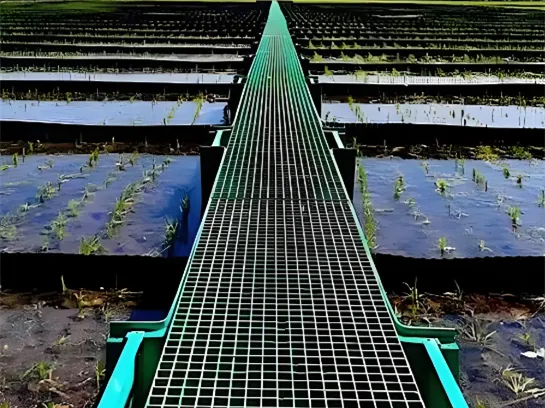

Agricultural Sheds: Lightweight, easy-to-clean channels for livestock areas.
Landscaping & Public Spaces: Aesthetic design that blends with surroundings.
Our FRP drainage channels are designed to meet the rigorous demands of modern infrastructure. The U-shaped profile provides a wide, open channel for high-volume water flow, while the C-shaped profile offers a more compact solution for shallow installations. Both shapes feature a smooth interior that reduces hydraulic resistance, improving drainage efficiency by up to 30% compared to concrete alternatives. The fiberglass composite material also eliminates the risk of spalling or cracking due to freeze-thaw cycles, making them ideal for cold climates.

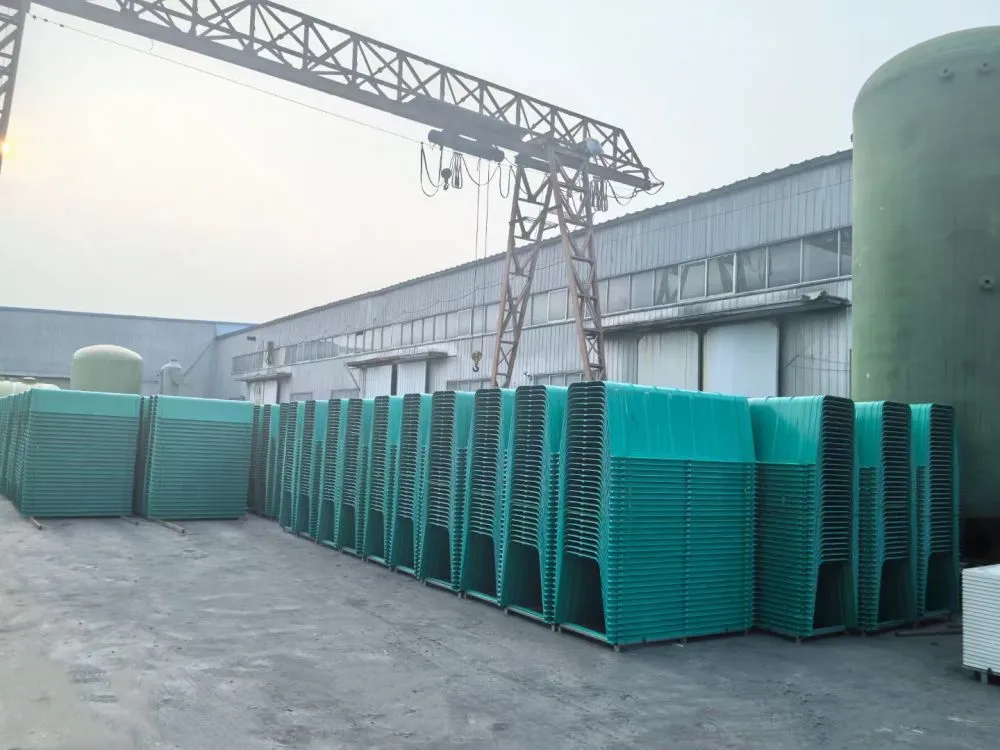

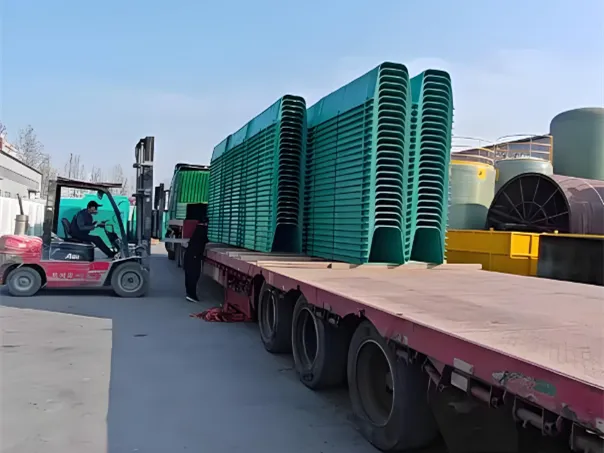

At Hengshui Ruibin New Materials LLC, we have a dedicated R&D team that continuously improves our product designs. Our factory covers 1,000-3,000 square meters and employs 101-200 skilled workers, ensuring consistent quality and timely delivery. With an annual export value of US$2.5 million to US$5 million, we ship to over 12 major markets globally, including North America, Europe, Southeast Asia, and Africa. Our products are shipped from the ports of Tianjin and Qingdao, providing reliable logistics.
We are proud to hold ISO9001 and ISO9000 certifications, which guarantee that every drainage channel meets strict quality standards. Our team provides comprehensive after-sales support, including installation guidance and custom design services. For large-scale projects, we offer volume discounts and custom packaging options. Choose our FRP U-Shaped and C-Shaped Fiberglass Drainage Channels for a durable, cost-effective, and environmentally friendly drainage solution that outperforms traditional materials.
Frequently Asked Questions

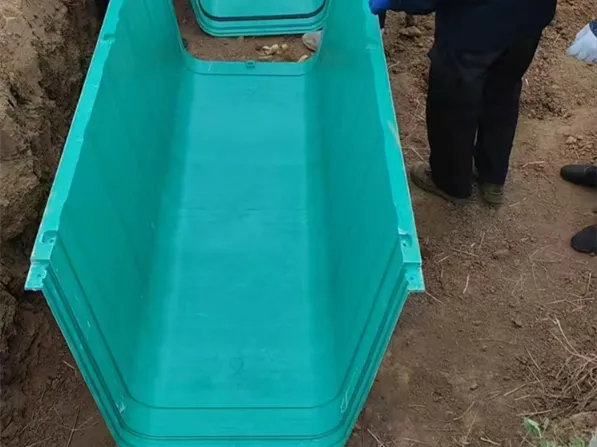

Q: What is the difference between U-shaped and C-shaped channels?
A: U-shaped channels have a rounded bottom for higher water flow capacity, while C-shaped channels have a flat bottom and are shallower, suitable for low-profile installations such as pedestrian areas.Q: Can these channels be used in corrosive environments like chemical plants?
A: Yes, our FRP channels are made with corrosion-resistant resins (polyester or vinyl ester) and are ideal for chemical plants, wastewater treatment, and marine environments.Q: What load class do you recommend for a parking lot?
A: For standard car parking, load class C250 (250 kN) is sufficient. For heavy truck traffic, we recommend D400 or higher.Q: Are the channels UV resistant?
A: Yes, we add UV stabilizers to the resin, ensuring long-term performance under direct sunlight without yellowing or brittleness.Q: How do I install the channels?

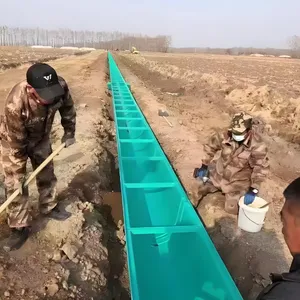

A: Installation is straightforward: prepare a trench, place a concrete base, assemble the interlocking channel sections, and pour concrete around the sides. Detailed installation manuals are provided.Q: Do you offer custom sizes or colors?
A: Absolutely. We can customize channel width, length, and color (e.g., RAL colors) to match your project requirements. Minimum order quantities may apply.Q: What is the lead time for orders?
A: Typical lead time is 15-30 days depending on quantity and customization. We maintain stock for standard sizes for faster delivery.Q: Do you provide certification documents for the products?
A: Yes, we provide ISO9001 certificates, material test reports, and load test reports upon request.
Contact us today to discuss your drainage project. Our team is ready to provide technical drawings, samples, and competitive pricing. With our proven track record and global customer base, you can trust Hengshui Ruibin New Materials LLC for reliable FRP drainage solutions.
