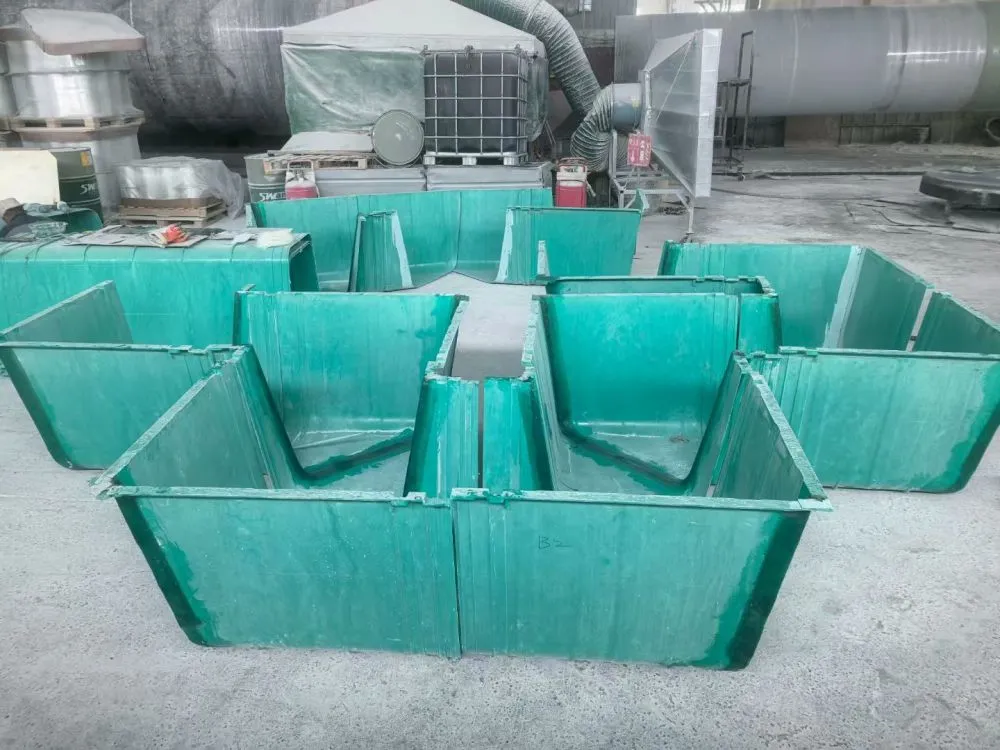

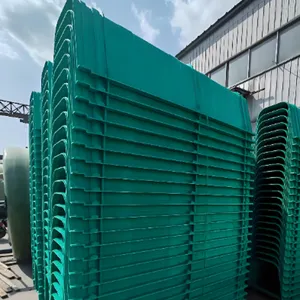

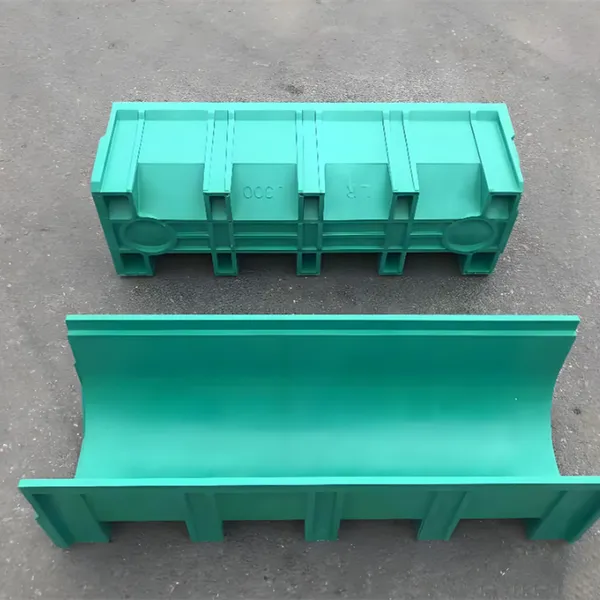

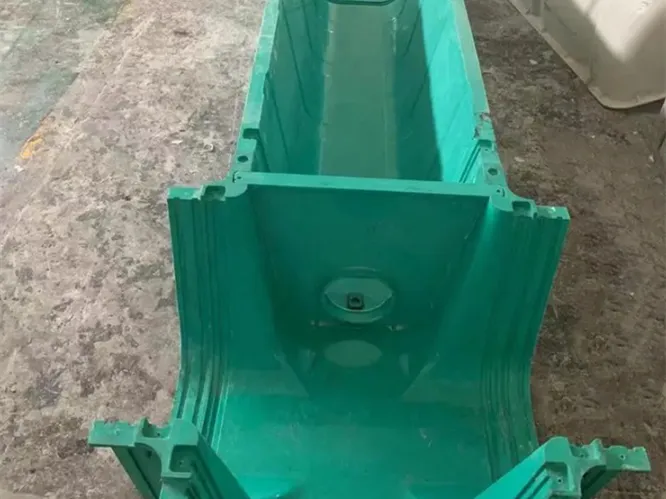

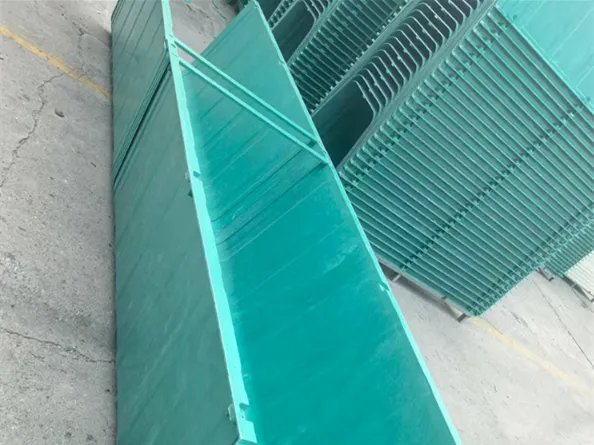

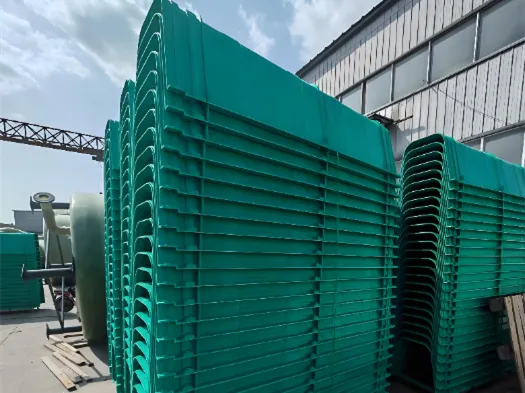

As a leading manufacturer based in Hengshui, Hebei, China, Hengshui Ruibin New Materials LLC specializes in the production of high-quality FRP products. Since our establishment in 2019, we have grown to a team of 101-200 employees and maintain a modern factory spanning 1,000-3,000 square meters. With an annual export value of US$2.5-5 million, we serve global markets including North America, South America, Europe, Asia, and Oceania. Our Heavy Duty FRP Floor Trench Drain Channel System is engineered to provide superior drainage solutions for demanding industrial environments. Combining exceptional strength, corrosion resistance, and lightweight design, this system ensures efficient water management while withstanding heavy loads from forklifts, trucks, and machinery.
Product Features & Advantages
Heavy Load Capacity: Designed to support loads up to 60 tons, suitable for industrial floors, warehouses, and logistics centers.
Corrosion & Chemical Resistance: FRP material resists acids, alkalis, salts, and other chemicals, making it ideal for harsh environments like chemical plants and food processing facilities.
Lightweight & High Strength: 75% lighter than steel but with comparable strength, reducing installation labor and structural support requirements.
Modular & Easy Installation: Interlocking channel sections and bolt-together connections allow quick assembly without special tools. Custom lengths available.
Anti-Slip Surface: Textured top surface provides enhanced safety for workers and vehicles, even in wet conditions.
Low Maintenance: Non-porous FRP does not rust, rot, or degrade, requiring only occasional cleaning.
Thermal & Electrical Insulation: Non-conductive and non-sparking, suitable for electrical sensitive areas.
Environmentally Friendly: Long service life reduces replacement frequency, and material is recyclable.
Technical Specifications
| Parameter | Value |
| Material | Fiberglass Reinforced Polymer (FRP) – isophthalic or vinyl ester resin |
| Standard Channel Width | 100mm, 150mm, 200mm, 300mm (customizable) |
| Standard Channel Height | 100mm, 150mm, 200mm, 250mm (customizable) |
| Standard Length per Section | 1000mm, 1500mm, 2000mm |
| Wall Thickness | 4mm, 5mm, 6mm (depending on load class) |
| Load Classification | A15, B125, C250, D400, E600, F900 (EN 1433 standard) |
| Color | Gray (standard), black, or custom RAL colors |
| Surface Texture | Anti-slip – diamond pattern or grit coating |
| Operating Temperature | -40°C to +80°C (continuous) |
| Certification | ISO9001:2015, ISO9000 quality management system |
Why Choose Our FRP Trench Drain?
Superior Drainage Performance: Smooth interior channels and optimized slope (0.5-1%) ensure rapid water flow, preventing ponding and hazards.

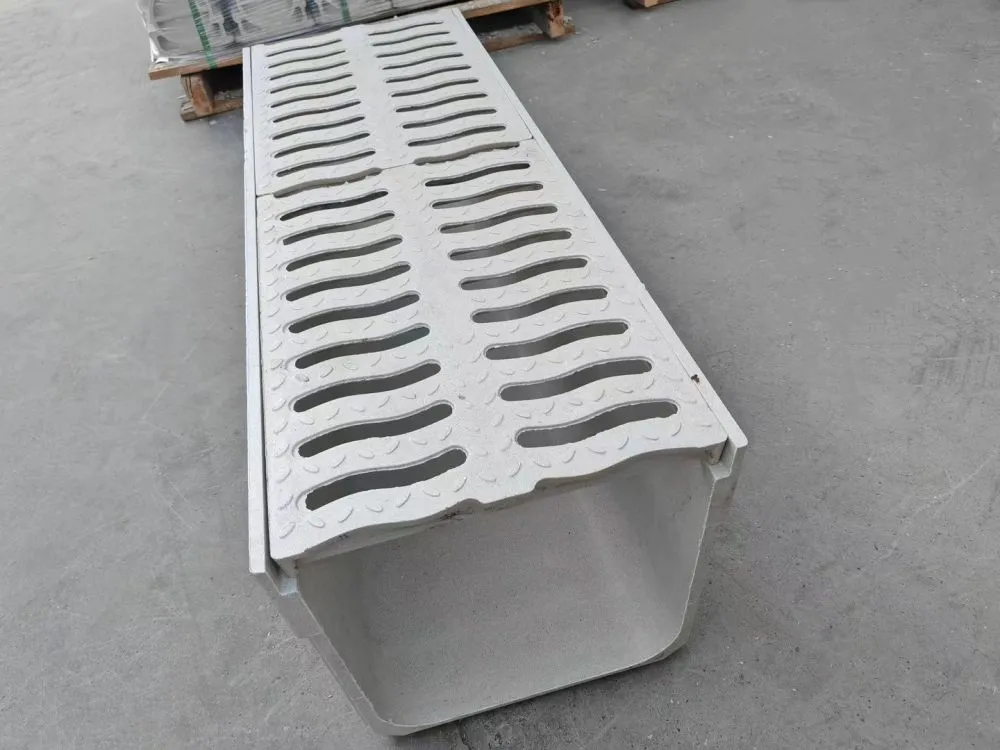

Customizable Solutions: We offer custom dimensions, colors, and load ratings to match your specific project requirements. Options include gratings, end caps, and adapters.
Cost-Effective: Lower installation cost compared to concrete or steel drains due to reduced weight and labor. Long lifespan minimizes replacement expenses.
Global Compliance: Our products meet international standards and are tested for load, impact, and chemical resistance.
With over 100 skilled workers and a dedicated R&D team, Hengshui Ruibin New Materials LLC has delivered FRP drainage systems to clients across 20+ countries. Our ISO9001 certified manufacturing process ensures consistent quality and on-time delivery from our ports at Tianjin and Qingdao. We provide complete technical support, from design consultation to after-sales service. Whether you need a standard system or a fully customized solution, our team is ready to assist. Contact us today to discuss your industrial drainage needs and receive a competitive quotation.
Frequently Asked Questions
Q1: How is the FRP trench drain installed?
A: Our system uses interlocking channels with tongue-and-groove joints. Simply excavate a trench, lay a gravel base, place the channels end-to-end, and connect them with supplied bolts or adhesive. No heavy machinery required.
Q2: Can the drain handle heavy forklift traffic?
A: Yes. Depending on the model, our drains can withstand load classes up to F900 (90 tons). For typical industrial forklifts, we recommend C250 or D400 rated channels.
Q3: Is the FRP material resistant to chemicals?
A: FRP offers excellent resistance to most acids, alkalis, solvents, and petroleum products. For specific chemical exposure, please provide details so we can recommend the appropriate resin (e.g., vinyl ester for high corrosion resistance).
Q4: Can I get custom lengths or colors?
A: Absolutely. We can cut channels to any length up to 4000mm and provide colors matching your facility’s requirements. Minimum order quantities may apply.
Q5: How do I clean and maintain the drain?
A: Regular flushing with water or using a pressure washer is sufficient. For greasy deposits, mild detergents can be used. FRP does not require painting or coating.
Q6: What is the warranty period?
A: We offer a standard 2-year warranty against manufacturing defects. Extended warranties are available upon negotiation.
Q7: Do you provide samples for testing?
A: Yes, sample sections can be provided for evaluation. Please contact our sales team with your shipping details.
Q8: What is the lead time for orders?
A: Typically 10-15 working days for standard sizes. Custom orders may require 20-25 days. We also offer express production for urgent projects.
