Industry Pain Points and Solutions
In the operation of water parks, how to provide tourists with a long - lasting high - drop thrilling experience while ensuring the safety and durability of equipment is the core pain point in the industry. Traditional slides often have insufficient buffering and high maintenance costs due to design defects, or they cannot adapt to different site terrains. Henan Boyue Amusement Equipment Co., Ltd. has been deeply involved in the water amusement field for many years. From site survey to scheme design, it always adheres to the core concepts of "safety, innovation, and adaptation". For high - drop slides, we adopt the modular fiberglass molding process, combined with the hydrodynamic optimization of the slide curvature. While ensuring the thrill, it reduces the impact force on tourists, and improves the overall strength through the fully enclosed skeleton support structure. The company has an engineering and technical team with 15 years of industry experience, which can provide one - stop customized services from project planning, design to equipment production, installation and commissioning, enabling each set of slides to perfectly integrate into the site and achieve a double increase in passenger flow and repeat rate.
Working Mechanism and Product Features
The core working mechanism of large - scale water park slides is based on the conversion of gravitational potential energy: tourists enter the slide from a high platform and slide at high speed along the designed curve. Elements such as drops, turns, and spirals generate a strong sense of weightlessness and speed. Our product features include:
- High - drop Design: The platform height can reach 6 - 15 meters, and the slide length is 30 - 80 meters. It can be flexibly customized according to the site to meet the thrill needs of tourists of different ages.
- Safety Buffer System: The end of the slide is equipped with an open or enclosed buffer pool. The angle of the water outlet is optimized through computer simulation to minimize the impact of entering the water.
- Weather - resistant Material: The main body is made of high - strength fiberglass (FRP), and the surface is covered with a gel coat layer. It is resistant to ultraviolet rays and corrosion, and has a service life of more than 10 years.
- Modular Assembly: The slide can be pre - fabricated in sections and quickly installed on - site, shortening the construction period and reducing the construction difficulty.

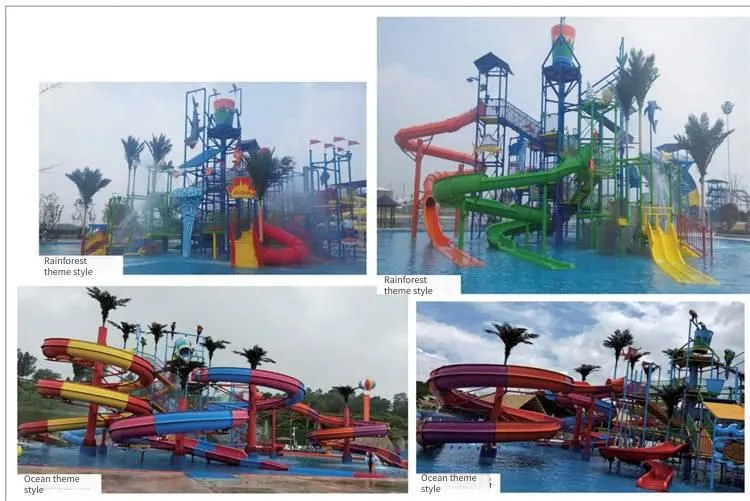

- Theme Customization: It supports personalized decorations such as colorful lights, water - spraying special effects, and bionic shapes to enhance the visual appeal of the park.
Technical Specifications and Advantages
| Parameter Items | Typical Range | Description |
| Platform Height | 6-15 meters | Can be adjusted according to the site and budget |
| Slide Length | 30-80 meters | Including straight sections, turning sections, and spiral sections |
| Slide Width | 0.8-1.2 meters | Suitable for both single/double float rings |
| Maximum Capacity | 800-1200 people/hour | Calculated based on a single slide |
| Material Thickness | 4-6mm (Fiberglass) | Including gel coat layer and reinforcing ribs |
| Load-bearing Standard | Complies with GB/T 18168-2017 | National Safety Code for Water Amusement Facilities |
| Power Supply Requirement | 380V/50Hz | For the lifting platform and lighting system |
| Installation Period | 30-45 days | Including foundation construction and equipment installation |
Our advantages lie in: Full-process Control - From design, production to installation and after-sales, there are no outsourcing links to ensure quality; Zero Accident Record - Strictly adopt the ERP Quality Traceability System, and each component can be held accountable; Quick Response - The after-sales team is online 24/7, and there is sufficient inventory of spare parts to ensure the normal operation of the equipment.
Trust Endorsement and Consultation Advice
Henan Boyue Amusement Equipment Co., Ltd. has provided equipment and services for over 200+ water parks, hot spring resorts, and children's water playgrounds across the country, including multiple provincial key cultural and tourism projects. Our high-drop slide products have been operating in a large water park in Central China for more than 3 quarters. The average daily number of visitors received is over 3000. The equipment failure rate is lower than 0.5%, and it has received high praise from customers. The company has ISO9001 Quality Management System Certification. All products pass water pressure tests, load tests, and impact tests before leaving the factory. If you are planning a water park project, we suggest that you: Provide the site plan and the positioning of the target customer group. Our technical team will evaluate the feasibility for you for free and issue a 3D simulation plan to ensure that the drop design, space layout, and safety standards of the slide are perfectly matched. Welcome to contact us through the official website or phone to get detailed quotations and case materials.
FAQ
Q1: Is the high-drop slide suitable for children?
A: We offer a variety of height specifications, and the drop can be adjusted according to the height and weight of children. At the same time, the inner wall of the slide is smooth, lubricated with water, and the end has a gentle slope design to ensure safety. It is recommended that children use it under the supervision of adults.
Q2: What information is needed for customizing a slide?
A: Usually, the site size, topographic map, age distribution of the target customer group, and budget range are required. We can send engineers for on-site surveys or design based on the CAD drawings you provide.
Q3: What is the service life of the slide? How to maintain it?
A: The fiberglass material can have a service life of 10 - 15 years under normal use. Daily maintenance only requires cleaning the surface, checking the connecting bolts, and lubricating the bearings. A comprehensive structural inspection should be carried out once a quarter. We provide a maintenance manual and remote guidance.
Q4: How long is the installation period of the slide? Will it affect the operation of the park?
A: From foundation construction to installation and commissioning, it generally takes 30 - 45 days. We can arrange the construction during the off-peak tourist season or install it in sections to reduce the impact on the operation.
Q5: What is the load-bearing capacity of the slide?
A: A single slide can bear 100 - 150kg per use, and the floating ring can carry two people. We conduct load tests in accordance with the GB/T 18168 standard, and the safety factor is not less than 1.5.
Q6: If the slide is damaged, how to repair it?
A: The fiberglass components can be partially repaired. We provide special repair materials and guide the operation. If the damage is severe, the module section can be replaced. The spare parts are in sufficient stock and will be shipped within 48 hours.
Q7: Can lights or water spray effects be added to the slide?
A: Yes. We offer an LED lighting system (with an IP68 waterproof rating) and a water spray special effect device, which can be programmed with music to increase its attractiveness at night. Additional customization is required.
Q8: What is the energy consumption of the high-drop slide?
A: The main energy consumption comes from the hoist (water pump or elevator). The average power of a single slide is about 5 - 15kW, which specifically depends on the height and carrying capacity. We recommend using a variable-frequency energy-saving motor to reduce operating costs.
