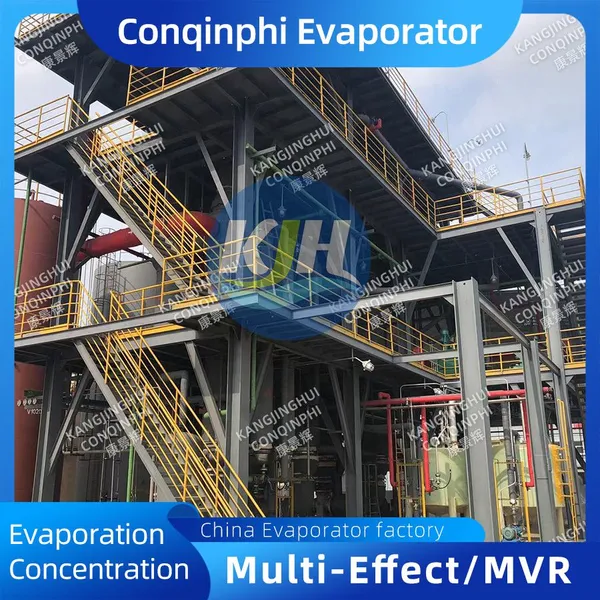

As a leading manufacturer from Qingdao Conqinphi Environmental Technology Group Co., Ltd., we proudly present our Touch Screen PLC Controlled Multi-effect Evaporation Crystallization System. Crafted from premium 316L stainless steel, this system is engineered to deliver high-efficiency evaporation and crystallization for demanding industrial applications. With our advanced PLC and intuitive touch screen interface, operators can achieve precise control over the entire process, ensuring consistent output and energy savings.
This system leverages multi-effect evaporation technology, which significantly reduces energy consumption by reusing vapor heat across multiple stages. The corrosion-resistant 316L construction guarantees long service life even in harsh chemical environments. Whether you are treating wastewater, concentrating chemical solutions, or recovering valuable salts, our equipment offers a reliable and scalable solution.
Our factory, spanning 10,000–30,000 square meters with a dedicated team of 201–300 employees, has been delivering high-quality environmental equipment since 2015. We are committed to continuous innovation and strict quality control, backed by certifications such as ISO9001, HACCP, and OHSAS18001.
Key Features & Technical Specifications
- Multi-effect Design: Up to 5 effects available, achieving steam savings of 50%–70% compared to single-effect evaporators.
- PLC Touch Screen Control: User-friendly HMI with real-time monitoring, automatic fault diagnosis, and parameter adjustment.
- 316L Stainless Steel Construction: Superior corrosion resistance for acidic, alkaline, and saline feed streams.
- High Crystallization Efficiency: Integrated crystallization unit with forced circulation for uniform crystal growth.
- Energy Recovery: Heat pump or mechanical vapor recompression (MVR) optional for further energy reduction.
- Compact Footprint: Modular design minimizes floor space and simplifies installation.
- Compliance & Certifications: Manufactured under ISO9001, HACCP, and OHSAS18001 quality systems.
Typical Parameters (Customizable)
| Parameter | Range / Value |
| Evaporation Capacity | 500 L/h – 50,000 L/h (custom) |
| Operating Temperature | 60°C – 120°C (adjustable) |
| Number of Effects | 2 – 5 effects |
| Material of Construction | 316L Stainless Steel (others optional) |
| Power Supply | 380V / 440V / 50Hz / 60Hz (custom) |
| Control System | PLC + Touch Screen (Siemens, Mitsubishi, or similar) |
Customer Benefits
- Lower Operating Costs: Multi-effect and optional MVR reduce steam consumption by up to 70%.
- Minimal Downtime: PLC self-diagnosis and remote support options ensure quick troubleshooting.
- Consistent Product Quality: Precise temperature and pressure control guarantee uniform crystal size and purity.
- Environmental Compliance: Efficient separation of solids and liquids helps meet discharge regulations.
- Easy Integration: Pre-assembled skid-mounted units simplify installation and commissioning.
At Qingdao Conqinphi, we have delivered systems to over 20 countries including North America, Europe, and Southeast Asia, with an annual export value exceeding US$10 million. Our team of experienced engineers provides full technical support, from process design to after-sales service. We invite you to experience the reliability and efficiency of our evaporation crystallization solutions.
Contact us today for a customized proposal tailored to your specific feed composition and capacity requirements. Choose Qingdao Conqinphi – your trusted partner in industrial evaporation technology.
Frequently Asked Questions
-
Q: What is the typical energy saving compared to a single-effect evaporator?
A: Our multi-effect system can achieve 50%–70% reduction in steam consumption, depending on the number of effects and feed characteristics. -
Q: Can the system handle highly corrosive liquids?
A: Yes, the standard construction is 316L stainless steel, which offers excellent resistance to many acids, alkalis, and chlorides. For extreme conditions, we can also supply duplex or titanium alloys. -
Q: Is the PLC touch screen easy to operate?
A: Absolutely. The HMI is designed with a clear menu structure, real-time trend graphs, and alarm logs. Training is provided, and remote support is available. -
Q: What is the lead time for a custom system?
A: Typically 8–12 weeks after order confirmation, depending on complexity and capacity. We work closely with clients to meet project deadlines. -
Q: Do you provide installation and commissioning services?
A: Yes, we offer on-site supervision by our engineers, or we can train your local team. Remote commissioning is also possible for simple setups. -
Q: What certifications does the system have?
A: Our manufacturing facility is ISO9001, HACCP, and OHSAS18001 certified. The specific system can be designed to meet ASME, PED, or other local codes upon request. -
Q: Can the system be integrated with existing plant controls?
A: Yes, our PLC supports common communication protocols (Modbus, Profibus, Ethernet/IP) for seamless integration with DCS or SCADA. -
Q: What is the warranty period?
A: We offer a standard 12-month warranty from the date of commissioning, with extended options available.
